Highlights
View Details- This 10/25GBASE-LR module supports a link length of 10km on standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G
- Max power consumption: 1.3W
- Meets or exceeds the IEEE 802.3by and IEEE 802.3cc standards

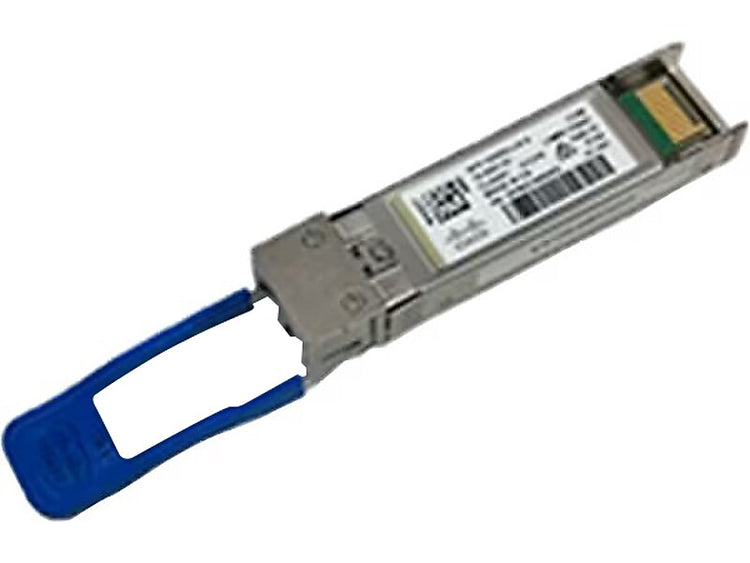

Cisco 10/25GBASE-LR SFP28 Transceiver Module for Single-Mode Fiber (SFP-10/25G-LR-S)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Cisco 10/25GBASE-LR Module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G. This module requires RS-FEC on the host ports for operation at 25G.
- This 10/25GBASE-LR module supports a link length of 10km on standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G
- Max power consumption: 1.3W
- Meets or exceeds the IEEE 802.3by and IEEE 802.3cc standards
- Certified and tested on Cisco SFP28 ports for superior performance, quality, and reliability
- This module requires RS-FEC on the host ports for operation at 25G
- Transmit and receive wavelength: 1260-1355nm (10G) and 1295-1325nm (25G)
| Manufacturer # | SFP10/25GLRS= |
| Brand Name | Cisco |
| Data Transfer Rate (gbps) | 25 |
| Data Transfer Rate (mbps) | 25000 |
| Fiber Cable Type | Single Mode |
| Max. Data Transfer Rate (mbps) | More than 3000 |
| Max. Distance (meters) | 10000 |
| Network Transceiver Type | SFP 28 |
| True Color | Blue |
| Used for | Single-Mode Fiber (SMF) |
| Wavelength (nm) | 1355 |
Details
The Cisco 10/25GBASE-LR Module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G. This module requires RS-FEC on the host ports for operation at 25G.
- This 10/25GBASE-LR module supports a link length of 10km on standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G
- Max power consumption: 1.3W
- Meets or exceeds the IEEE 802.3by and IEEE 802.3cc standards
- Certified and tested on Cisco SFP28 ports for superior performance, quality, and reliability
- This module requires RS-FEC on the host ports for operation at 25G
- Transmit and receive wavelength: 1260-1355nm (10G) and 1295-1325nm (25G)
| Attribute Name | Attribute Value |
|---|
