Highlights
View Details- Interfaces/ports: 1 x LC duplex 100Base-FX
- Dimensions: 0.4"(H) x 2.2"(W) x 1/2"(D)
- Compatibility: Cisco catalyst 3750, 3560, and 2970 series switches

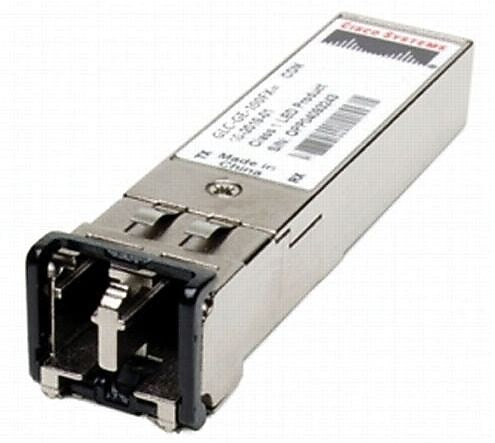

Cisco 100BASE-FX SFP Fast Ethernet Interface Converter
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
- Interfaces/ports: 1 x LC duplex 100Base-FX
- Dimensions: 0.4"(H) x 2.2"(W) x 1/2"(D)
- Compatibility: Cisco catalyst 3750, 3560, and 2970 series switches
- Connectivity media: 62.5/125 um multi mode fiber, 50/125 um multi mode fiber
- Transmit (dBm): 50/125-micron: -23.5 min, -14max, 62.5/125-micron: -20 min, -14max, receive (dBm): 50/125-micron: -33.35 min, -11.8 max, 62.5/125-micron: -33.35 min, -11.8 max
- Distance supported: 6.5'
- Operating temperature: 32 - 158 deg F, storage temperature: -40 - 185 deg F
- Surge current: 350 typical, wavelength (nm): 1270 min, 1300 typical, 1380 max
- Power consumption: 1.5 W per port
- Input voltage: 3.3 V - 3.5 V device, 3.3 V typical device
- Input current: 405 mA typical, 450 mA maximum
- Data transfer rate: 100 Mbps fast Ethernet full duplex
- MTBF: 12,820,512 hours
- Form factor: Hot-swappable
- System requirements: Cisco IOS software release 12.2(20)SE1
- Application/usage: Data networking
- Regulatory and standards compliance: IEC 60825-1
| Manufacturer # | F02462 |
| Brand Name | Cisco |
| Direct Attach Cable (dac) | No |
Details
- Interfaces/ports: 1 x LC duplex 100Base-FX
- Dimensions: 0.4"(H) x 2.2"(W) x 1/2"(D)
- Compatibility: Cisco catalyst 3750, 3560, and 2970 series switches
- Connectivity media: 62.5/125 um multi mode fiber, 50/125 um multi mode fiber
- Transmit (dBm): 50/125-micron: -23.5 min, -14max, 62.5/125-micron: -20 min, -14max, receive (dBm): 50/125-micron: -33.35 min, -11.8 max, 62.5/125-micron: -33.35 min, -11.8 max
- Distance supported: 6.5'
- Operating temperature: 32 - 158 deg F, storage temperature: -40 - 185 deg F
- Surge current: 350 typical, wavelength (nm): 1270 min, 1300 typical, 1380 max
- Power consumption: 1.5 W per port
- Input voltage: 3.3 V - 3.5 V device, 3.3 V typical device
- Input current: 405 mA typical, 450 mA maximum
- Data transfer rate: 100 Mbps fast Ethernet full duplex
- MTBF: 12,820,512 hours
- Form factor: Hot-swappable
- System requirements: Cisco IOS software release 12.2(20)SE1
- Application/usage: Data networking
- Regulatory and standards compliance: IEC 60825-1
| Attribute Name | Attribute Value |
|---|
