Highlights
View Details- This 1RU router enables up to 1Gbps IPsec traffic
- Uses an Intel x86 CPU and 8GB DRAM memory by default
- This model is shipped with default 16G M.2 storage and can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile memory Express (NVMe) storage

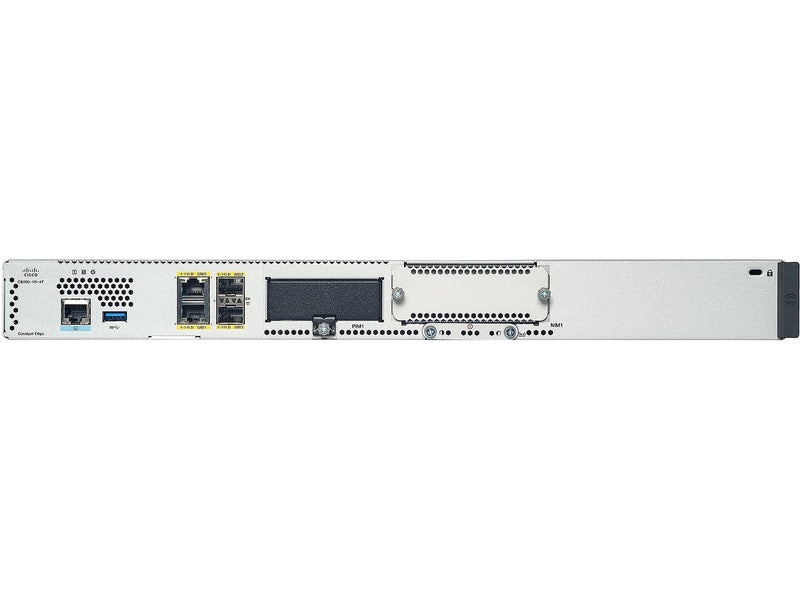

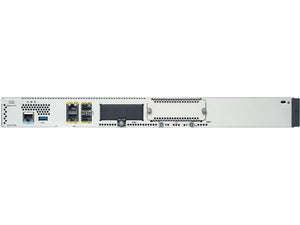

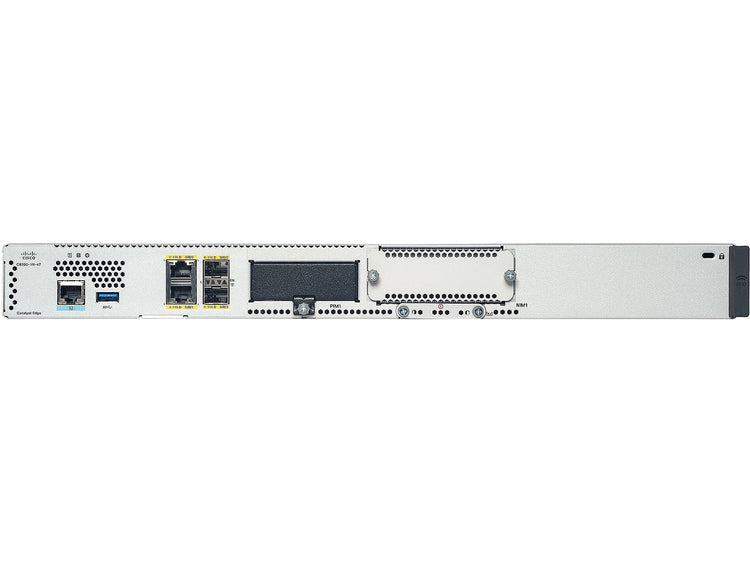

Cisco Catalyst 8200 Gigabit Router, Silver (C8200-1N-4T)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Cisco Catalyst 8200 Series Edge Platforms with Cisco IOS XE SD-WAN software deliver Cisco's secure, cloud-scale SD-WAN solution for the small branch. The platforms are purpose-built for performance and integrated SD-WAN services along with flexibility to deliver security and networking services together from the cloud or on premises. They have a wide variety of interface options to choose from, with backward compatibility to existing WAN, LAN, and voice modules. Powered by Cisco IOS XE, a fully programmable software architecture, and API support, the Catalyst 8200 Series can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. The platforms also come with a trustworthy solutions 2.0 infrastructure that secures them against threats and vulnerabilities through advanced integrity verification and remediation of threats. Model C8200-1N-4T for the small to medium-sized branch with requirements for higher throughput, scale, and service flexibility. In addition to supporting SASE-compliant cloud-based security services, the C8200-1N-4T also delivers a flexible system of best-in-class, on-premises security services through container-based apps, using Cisco's third-party ecosystem.
- This 1RU router enables up to 1Gbps IPsec traffic
- Uses an Intel x86 CPU and 8GB DRAM memory by default
- This model is shipped with default 16G M.2 storage and can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile memory Express (NVMe) storage
- Provides four built-in Ethernet WAN ports: two Ethernet ports are Small Form-Factor Pluggable (SFP) and two are RJ45 ports, enabling fiber as well as copper connectivity
- Has an integrated onboard 8GB flash memory which is not upgradable
- Platform support both integrated pluggable modules as well as external Cellular Gateways with Cat18 LTE and 5G capability for improved throughput that addresses those use cases
- An integrated PIM module or external Cellular Gateway can be chosen based on a specific branch's cellular coverage, or work in tandem forming a high-availability Active-Active cellular WAN solution
- Protocols: IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2: RIP and RIPv2, Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol, BGP Route Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast Sparse Mode (PIM SM), PIM Source-Specific Multicast (SSM), Resource Reservation Protocol (RSVP), Cisco Discovery Protocol
- With branch multicloud access, you can accelerate your Software-as-a-Service (SaaS) applications with a simple template push from the SD-WAN controller
- Features such as TCP optimization, Forward Error Correction (FEC), and packet duplication enhance application performance for a better user experience
- Hardware-anchored Secure Boot and Secure Unique Device Identification (SUDI) support for Plug and Play to verify the identity of the hardware and software
| Manufacturer # | C82001N4T |
| # of Lan Ports | 1 |
| # of Wan Ports | 4 |
| Brand Name | Cisco |
| Built-in Firewall | Yes |
| Color Family | Gray/Silver |
| Connector, Port or Interface Type(s) | 1 x NIM slot and 4 x 1 Gigabit Ethernet WAN ports |
| Depth in Inches | 11.8 |
| Gaming | Non Gaming |
| Gigabit | Yes |
| Height in Inches | 1.73 |
| Input Power | AC: 90 to 264 VAC |
| Integrated Data Storage | Yes |
| Integrated Vpn | Yes |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Processor | Intel x86 CPU |
| Quality of Service | Yes |
| Security Protocols | Built-in end-to-end segmentation (VPNs)/ZBFW/PKI/Cisco DNA Layer Security/Snort IPS/IDS/URL filtering/Secure Malware Defense/Secure Malware Analytics |
| Series or Collection | Catalyst 8200 |
| True Color | Silver |
| Usb Port | Yes |
| Vpn Support | Yes |
| Weight (lbs.) | 10 |
| Width in Inches | 17.25 |
| Wireless Connectivity | No |
Details
The Cisco Catalyst 8200 Series Edge Platforms with Cisco IOS XE SD-WAN software deliver Cisco's secure, cloud-scale SD-WAN solution for the small branch. The platforms are purpose-built for performance and integrated SD-WAN services along with flexibility to deliver security and networking services together from the cloud or on premises. They have a wide variety of interface options to choose from, with backward compatibility to existing WAN, LAN, and voice modules. Powered by Cisco IOS XE, a fully programmable software architecture, and API support, the Catalyst 8200 Series can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. The platforms also come with a trustworthy solutions 2.0 infrastructure that secures them against threats and vulnerabilities through advanced integrity verification and remediation of threats. Model C8200-1N-4T for the small to medium-sized branch with requirements for higher throughput, scale, and service flexibility. In addition to supporting SASE-compliant cloud-based security services, the C8200-1N-4T also delivers a flexible system of best-in-class, on-premises security services through container-based apps, using Cisco's third-party ecosystem.
- This 1RU router enables up to 1Gbps IPsec traffic
- Uses an Intel x86 CPU and 8GB DRAM memory by default
- This model is shipped with default 16G M.2 storage and can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile memory Express (NVMe) storage
- Provides four built-in Ethernet WAN ports: two Ethernet ports are Small Form-Factor Pluggable (SFP) and two are RJ45 ports, enabling fiber as well as copper connectivity
- Has an integrated onboard 8GB flash memory which is not upgradable
- Platform support both integrated pluggable modules as well as external Cellular Gateways with Cat18 LTE and 5G capability for improved throughput that addresses those use cases
- An integrated PIM module or external Cellular Gateway can be chosen based on a specific branch's cellular coverage, or work in tandem forming a high-availability Active-Active cellular WAN solution
- Protocols: IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2: RIP and RIPv2, Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol, BGP Route Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast Sparse Mode (PIM SM), PIM Source-Specific Multicast (SSM), Resource Reservation Protocol (RSVP), Cisco Discovery Protocol
- With branch multicloud access, you can accelerate your Software-as-a-Service (SaaS) applications with a simple template push from the SD-WAN controller
- Features such as TCP optimization, Forward Error Correction (FEC), and packet duplication enhance application performance for a better user experience
- Hardware-anchored Secure Boot and Secure Unique Device Identification (SUDI) support for Plug and Play to verify the identity of the hardware and software
