Highlights
View Details- Enterprise grade versatile wireless access point perfect for networks of all sizes
- Features data rates up to 1.488 Gbps
- Equipped with one 10/100/1000 Base-T (Ethernet) Uplink Interface and one RJ-45 management console port

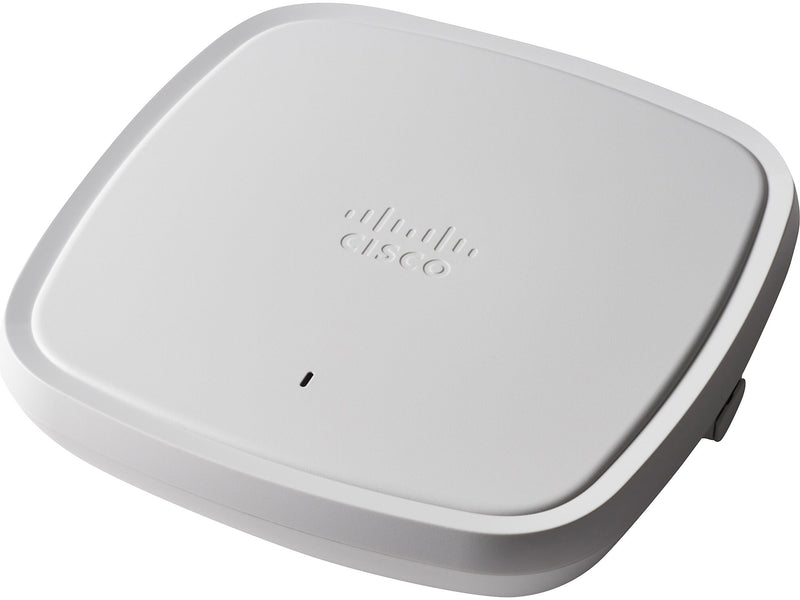

Cisco Catalyst 9105 AX & AC1488 Dual Band WiFi 6 Access Point, White (C9105AXI-B)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Extending Cisco's intent-based network and perfect for networks of all sizes, the Catalyst 9105 Access Points scale to meet the growing demands of IoT while fully supporting the latest innovations and new technologies. The Catalyst 9105 Access Points provide a seamless experience anywhere for everyone, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11 ax) standard, the Catalyst 9105 Access Points provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.
- Enterprise grade versatile wireless access point perfect for networks of all sizes
- Features data rates up to 1.488 Gbps
- Equipped with one 10/100/1000 Base-T (Ethernet) Uplink Interface and one RJ-45 management console port
- Dimensions: 1.18"H x 5.9"W x 5.9"D
- Wi-Fi 6 (802.11ax) designed to use both the 2.4-GHz and 5-GHz bands
- OFDMA-based scheduling splits the bandwidth into smaller frequency allocations called Resource Units (RUs), which can be assigned to individual clients in both the downlink and uplink directions to reduce overhead and latency
- Supporting two spatial streams, MU-MIMO enables access points to split spatial streams between client devices to maximize throughput
- Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the access points and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions
- A new power-saving mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point
- Intelligent Capture probes the network and provides Cisco DNA Center with deep analysis
- Application Hosting on Catalyst 9100 Access Points helps future-proof and simplify IoT deployments by eliminating the need to install and manage overlay networks
- Integrated Bluetooth Low Energy (BLE) 5 radio enables location-based use cases such as asset tracking, way finding or analytics
- Container support enables edge computing capabilities for IoT applications on the host access point
- Lifetime manufacturer limited warranty
| Manufacturer # | C9105AXIB |
| Antenna | internal antenna, omnidirectional in azimuth |
| Brand Name | Cisco |
| Connector, Port or Interface Type(s) | 10/100/1000 Base-T (Ethernet) Uplink Interface, RJ-45 management console port |
| Data Transfer Rate | 1488Mbps |
| Data Transfer Rate (gbps) | 1.49 |
| Data Transfer Rate (mbps) | 1488 |
| Depth in Inches | 5.9 |
| Frequencies | 2.4GHz and 5GHz |
| Frequency (wireless) | Dual Band 2.4/5GHz |
| Gaming | Non Gaming |
| Height in Inches | 1.18 |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Series or Collection | Catalyst 9105 |
| True Color | White |
| Warranty Information | Limited Lifetime Warranty |
| Weight (lbs.) | 0.7 |
| Wifi Standard | WiFi 6 |
| Width in Inches | 5.9 |
| Wireless Bands | Dual Band |
| Wireless Connectivity | 802.11 a/b/g/n/ac/ax |
| Wireless Standard | AX & AC |
Details
Extending Cisco's intent-based network and perfect for networks of all sizes, the Catalyst 9105 Access Points scale to meet the growing demands of IoT while fully supporting the latest innovations and new technologies. The Catalyst 9105 Access Points provide a seamless experience anywhere for everyone, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11 ax) standard, the Catalyst 9105 Access Points provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.
- Enterprise grade versatile wireless access point perfect for networks of all sizes
- Features data rates up to 1.488 Gbps
- Equipped with one 10/100/1000 Base-T (Ethernet) Uplink Interface and one RJ-45 management console port
- Dimensions: 1.18"H x 5.9"W x 5.9"D
- Wi-Fi 6 (802.11ax) designed to use both the 2.4-GHz and 5-GHz bands
- OFDMA-based scheduling splits the bandwidth into smaller frequency allocations called Resource Units (RUs), which can be assigned to individual clients in both the downlink and uplink directions to reduce overhead and latency
- Supporting two spatial streams, MU-MIMO enables access points to split spatial streams between client devices to maximize throughput
- Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the access points and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions
- A new power-saving mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point
- Intelligent Capture probes the network and provides Cisco DNA Center with deep analysis
- Application Hosting on Catalyst 9100 Access Points helps future-proof and simplify IoT deployments by eliminating the need to install and manage overlay networks
- Integrated Bluetooth Low Energy (BLE) 5 radio enables location-based use cases such as asset tracking, way finding or analytics
- Container support enables edge computing capabilities for IoT applications on the host access point
- Lifetime manufacturer limited warranty
| Attribute Name | Attribute Value |
|---|
