Highlights
View Details- Rack-mountable switch is the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability
- Contains 16-port 1/10 Gigabit Ethernet switch with SFP/SFP+
- Programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks, so they can focus instead on innovation that positively transforms your business

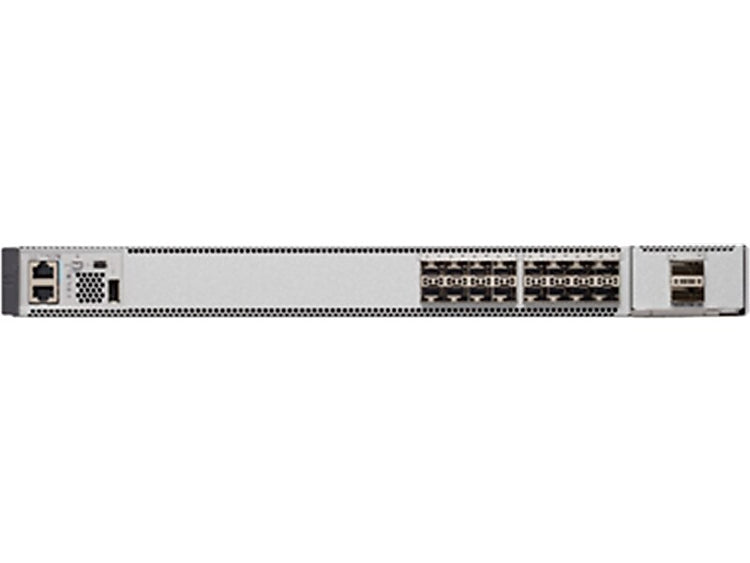

Cisco Catalyst 9500 16-Port Gigabit Ethernet Managed Switch, Silver (C9500-16X-A)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Cisco Catalyst 9500 series switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Cisco Catalyst 9500 series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage. The Cisco Catalyst 9500 series is the industry's first purpose-built 25, 40 and 100 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Cisco Catalyst 9500 series includes nonblocking 40 and 100 Gigabit Ethernet Quad Small Form-Factor Pluggable (QSFP+, QSFP28) and 1, 10 and 25 Gigabit Ethernet Small Form-Factor Pluggable Plus (SFP/SFP+/SFP28) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching (MPLS) Layer 2 and Layer 3 VPNs, Multicast VPN (MVPN), and Network Address Translation (NAT); Cisco Software-Defined Access capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding (VRF)-aware Locator/ID Separation Protocol (LISP); and network system virtualization with Cisco StackWise virtual technology that are critical for their placement in the campus core. The Cisco Catalyst 9500 Series also supports foundational high-availability capabilities such as patching, Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.
- Rack-mountable switch is the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability
- Contains 16-port 1/10 Gigabit Ethernet switch with SFP/SFP+
- Programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks, so they can focus instead on innovation that positively transforms your business
- Up to 6.4Tbps switching capacity with up to 2Bpps of forwarding performance
- Dimensions: 1.73"H x 21.52"W x 17.5"D
- Features 16GB DRAM, 16GB flash memory, quad-core x86, 2.4GHz CPU
- Up to 512000 Flexible NetFlow (FNF) entries in hardware
- Up to 212000 routing entries (IPv4/IPv6) for high-end campus core and aggregation deployments
- IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
- IEEE 802.1ba AV Bridging (AVB) built-in to provide a better AV experience through improved time synchronization and QoS
- Precision Time Protocol (PTP; IEEE 1588v2) provides accurate clock synchronization with sub-microsecond accuracy, making it suitable for distribution and synchronization of time and frequency over the network
- Support for both static and dynamic NAT and Port Address Translation (PAT)
- Scalable routing (IPv4, IPv6, and multicast) tables and Layer 2 tables
- Support for AES-256 with the powerful MACsec 256-bit encryption algorithm available on all models
- Meets or exceeds UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943 standards
- Lifetime manufacturer limited warranty
| Manufacturer # | C950016XA |
| Address Database Size | 64000 |
| Brand Name | Cisco |
| Depth in Inches | 17.5 |
| Gaming | Non Gaming |
| Height in Inches | 1.73 |
| Jumbo Frame | Yes |
| Module Support | SFP, SFP+ |
| Network Management Type | Managed Switch |
| Number of Ethernet Ports | 16 |
| Performance Class | Gigabit Ethernet |
| Power Supply | 950W AC config power supply front to back cooling |
| Quality of Service | Yes |
| Snmp | No |
| Series or Collection | Catalyst 9500 |
| Stackable | Stackable |
| Switch Form Factor | Rack Mountable |
| True Color | Silver |
| Vlan Support | Yes |
| Warranty Information | Limited Lifetime Warranty |
| Weight (lbs.) | 23.6 |
| Width in Inches | 21.52 |
Details
The Cisco Catalyst 9500 series switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Cisco Catalyst 9500 series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage. The Cisco Catalyst 9500 series is the industry's first purpose-built 25, 40 and 100 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Cisco Catalyst 9500 series includes nonblocking 40 and 100 Gigabit Ethernet Quad Small Form-Factor Pluggable (QSFP+, QSFP28) and 1, 10 and 25 Gigabit Ethernet Small Form-Factor Pluggable Plus (SFP/SFP+/SFP28) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching (MPLS) Layer 2 and Layer 3 VPNs, Multicast VPN (MVPN), and Network Address Translation (NAT); Cisco Software-Defined Access capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding (VRF)-aware Locator/ID Separation Protocol (LISP); and network system virtualization with Cisco StackWise virtual technology that are critical for their placement in the campus core. The Cisco Catalyst 9500 Series also supports foundational high-availability capabilities such as patching, Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.
- Rack-mountable switch is the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability
- Contains 16-port 1/10 Gigabit Ethernet switch with SFP/SFP+
- Programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks, so they can focus instead on innovation that positively transforms your business
- Up to 6.4Tbps switching capacity with up to 2Bpps of forwarding performance
- Dimensions: 1.73"H x 21.52"W x 17.5"D
- Features 16GB DRAM, 16GB flash memory, quad-core x86, 2.4GHz CPU
- Up to 512000 Flexible NetFlow (FNF) entries in hardware
- Up to 212000 routing entries (IPv4/IPv6) for high-end campus core and aggregation deployments
- IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
- IEEE 802.1ba AV Bridging (AVB) built-in to provide a better AV experience through improved time synchronization and QoS
- Precision Time Protocol (PTP; IEEE 1588v2) provides accurate clock synchronization with sub-microsecond accuracy, making it suitable for distribution and synchronization of time and frequency over the network
- Support for both static and dynamic NAT and Port Address Translation (PAT)
- Scalable routing (IPv4, IPv6, and multicast) tables and Layer 2 tables
- Support for AES-256 with the powerful MACsec 256-bit encryption algorithm available on all models
- Meets or exceeds UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943 standards
- Lifetime manufacturer limited warranty
