Highlights
View Details- Interfaces/ports: 1 x LC duplex 40GBase-X
- Media & performance: 50 micrometer multi-mode optical fiber 40GBase-X
- Ethernet technology: Gigabit Ethernet

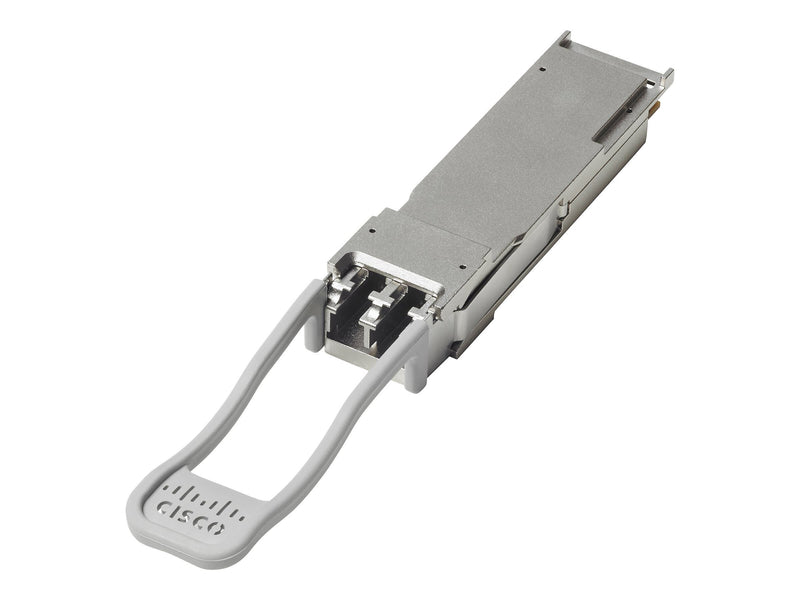

Cisco Gigabit Ethernet Multi-Mode QSFP Transceiver Module, 40000 Mbps (QSFP-40G-SR-BD=)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Cisco™ BiDi Short-reach transceiver module with LC duplex 40GBase-X interface operates with 50 micrometer multi-mode optical fiber. Hot-swappable transceiver module with LC connectors can be used for data networking/optical network applications.
- Interfaces/ports: 1 x LC duplex 40GBase-X
- Media & performance: 50 micrometer multi-mode optical fiber 40GBase-X
- Ethernet technology: Gigabit Ethernet
- Form factor: Hot-swappable
- Data transfer rate: 40 Gbps
- Connector: LC
- Dimensions: 0.5"(H) x 0.7"(W) x 2.9"(D)
- Wavelength: 832 - 918 nm
- Distance supported: 100/150 m
- Compatibility: Cisco Nexus 9000 series switches
- Power: 5 dBm transmit, 5 dBm receive, Power consumption: 3.5 W
- Application/usage: Data networking, optical network
- Gray
- Operating temperature: -10 - +70 deg C
- Certifications and standards:: RoHS-6, Green compliant
- Warranty: 90 days limited
| Manufacturer # | QSFP40GSRBD= |
| Brand Name | Cisco |
| Compatibility | Cisco Nexus 9000 series switches |
| Connector, Port or Interface Type(s) | 1 x LC duplex 40GBase-X |
| Data Transfer Rate | 40 Gbps |
| Data Transfer Rate (gbps) | 40 |
| Data Transfer Rate (mbps) | 40000 |
| Depth in Inches | 2.9 |
| Ethernet | Yes |
| Fiber Cable Type | Multi-Mode |
| Fiber Connector Type | LC |
| Gigabit | Yes |
| Height in Inches | 0.5 |
| Hot Swappable | Yes |
| Max. Data Transfer Rate (mbps) | More than 3000 |
| Max. Distance (meters) | 150 |
| Network Transceiver Type | QSFP |
| Operating Temperature (celsius) | -10 to 70 |
| Operating Temperature (fahrenheit) | 14 to 158 |
| Power Consumption (watts) | 3.5 |
| Selling Quantity (uom) | Each |
| Wavelength (nm) | 918 |
| Width in Inches | 0.7 |
Details
Cisco™ BiDi Short-reach transceiver module with LC duplex 40GBase-X interface operates with 50 micrometer multi-mode optical fiber. Hot-swappable transceiver module with LC connectors can be used for data networking/optical network applications.
- Interfaces/ports: 1 x LC duplex 40GBase-X
- Media & performance: 50 micrometer multi-mode optical fiber 40GBase-X
- Ethernet technology: Gigabit Ethernet
- Form factor: Hot-swappable
- Data transfer rate: 40 Gbps
- Connector: LC
- Dimensions: 0.5"(H) x 0.7"(W) x 2.9"(D)
- Wavelength: 832 - 918 nm
- Distance supported: 100/150 m
- Compatibility: Cisco Nexus 9000 series switches
- Power: 5 dBm transmit, 5 dBm receive, Power consumption: 3.5 W
- Application/usage: Data networking, optical network
- Gray
- Operating temperature: -10 - +70 deg C
- Certifications and standards:: RoHS-6, Green compliant
- Warranty: 90 days limited
| Attribute Name | Attribute Value |
|---|
