Highlights
View Details- QSFP+ transceiver module is used for data center, high performance computing networks, enterprise core and distribution layers applications
- Dimensions: 0.5"H x 0.7"W x 2.9"D
- Interface/ports: 1 x MPO 40GBase-SR4 network

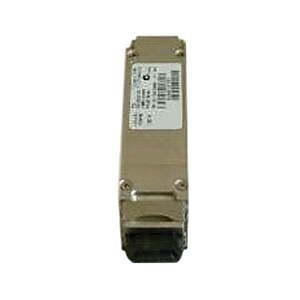

Cisco Gigabit Ethernet Multi-Mode QSFP+ Transceiver Module, 40000 Mbps (QSFP-40G-SR4=)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Cisco Transceiver module is compatible with Nexus 3000 series, Nexus 6500/7000 series, ASR 9000 series routers. Transceiver module suits MMF, 4-lanes, 850-nm wavelength, 12-fiber MTP/MPO connector.
- QSFP+ transceiver module is used for data center, high performance computing networks, enterprise core and distribution layers applications
- Dimensions: 0.5"H x 0.7"W x 2.9"D
- Interface/ports: 1 x MPO 40GBase-SR4 network
- Maximum data transfer rate: 40 Gbps
- Ethernet technology: 40 Gigabit Ethernet
- Media type supported: Optical fiber, fiber mode supported: Multi-mode
- Nominal wavelength: 850 nm, core size: 50 micron
- Maximum transfer distance: 492', modal bandwidth: 500 MHz/km (OM2), 2000 MHz/km (OM3), 4700 MHz/km (OM4)
- Transmit power: -1 dBm per lane, receive power: 2.4 dBm
- Compatible with Cisco Nexus 3064 switch, Nexus 2248PQ 10GE, ASR 9000 Series, 3016Q, 3064-E, 3064PQ, 3064-X, 6001
- Form factor: Hot swappable
- RoHS-6, MSA compliant
- High-speed electrical interface compliant to IEEE 802.3ba
| Manufacturer # | QSFP40GSR4= |
| Brand Name | Cisco |
| Compatibility | Cisco Nexus 3064 switch, Nexus 2248PQ 10GE, ASR 9000 Series, 3016Q, 3064-E, 3064PQ, 3064-X, 6001 |
| Connector, Port or Interface Type(s) | 1 x MPO 40GBase-SR4 network |
| Data Transfer Rate | 40Gbps |
| Data Transfer Rate (gbps) | 40 |
| Data Transfer Rate (mbps) | 40000 |
| Depth in Inches | 2.9 |
| Ethernet | Yes |
| Fiber Cable Type | Multi-Mode |
| Fiber Connector Type | MPO |
| Gigabit | Yes |
| Height in Inches | 0.5 |
| Hot Swappable | Yes |
| Msa Compliant | MSA Compliant |
| Max. Data Transfer Rate (mbps) | More than 3000 |
| Max. Distance (meters) | 150 |
| Network Transceiver Type | QSFP+ |
| Selling Quantity (uom) | Each |
| Used for | Data center, high performance computing networks, enterprise core and distribution layers applications |
| Wavelength (nm) | 850 |
| Width in Inches | 0.7 |
Details
Cisco Transceiver module is compatible with Nexus 3000 series, Nexus 6500/7000 series, ASR 9000 series routers. Transceiver module suits MMF, 4-lanes, 850-nm wavelength, 12-fiber MTP/MPO connector.
- QSFP+ transceiver module is used for data center, high performance computing networks, enterprise core and distribution layers applications
- Dimensions: 0.5"H x 0.7"W x 2.9"D
- Interface/ports: 1 x MPO 40GBase-SR4 network
- Maximum data transfer rate: 40 Gbps
- Ethernet technology: 40 Gigabit Ethernet
- Media type supported: Optical fiber, fiber mode supported: Multi-mode
- Nominal wavelength: 850 nm, core size: 50 micron
- Maximum transfer distance: 492', modal bandwidth: 500 MHz/km (OM2), 2000 MHz/km (OM3), 4700 MHz/km (OM4)
- Transmit power: -1 dBm per lane, receive power: 2.4 dBm
- Compatible with Cisco Nexus 3064 switch, Nexus 2248PQ 10GE, ASR 9000 Series, 3016Q, 3064-E, 3064PQ, 3064-X, 6001
- Form factor: Hot swappable
- RoHS-6, MSA compliant
- High-speed electrical interface compliant to IEEE 802.3ba
