Highlights
View Details- Multimode fiber optic transceiver with dual LC/PC connector
- 10GBASE SFP+ module for data center, enterprise wiring closet, and service provider transport applications
- Provides data transfer rates up to 10Gbps

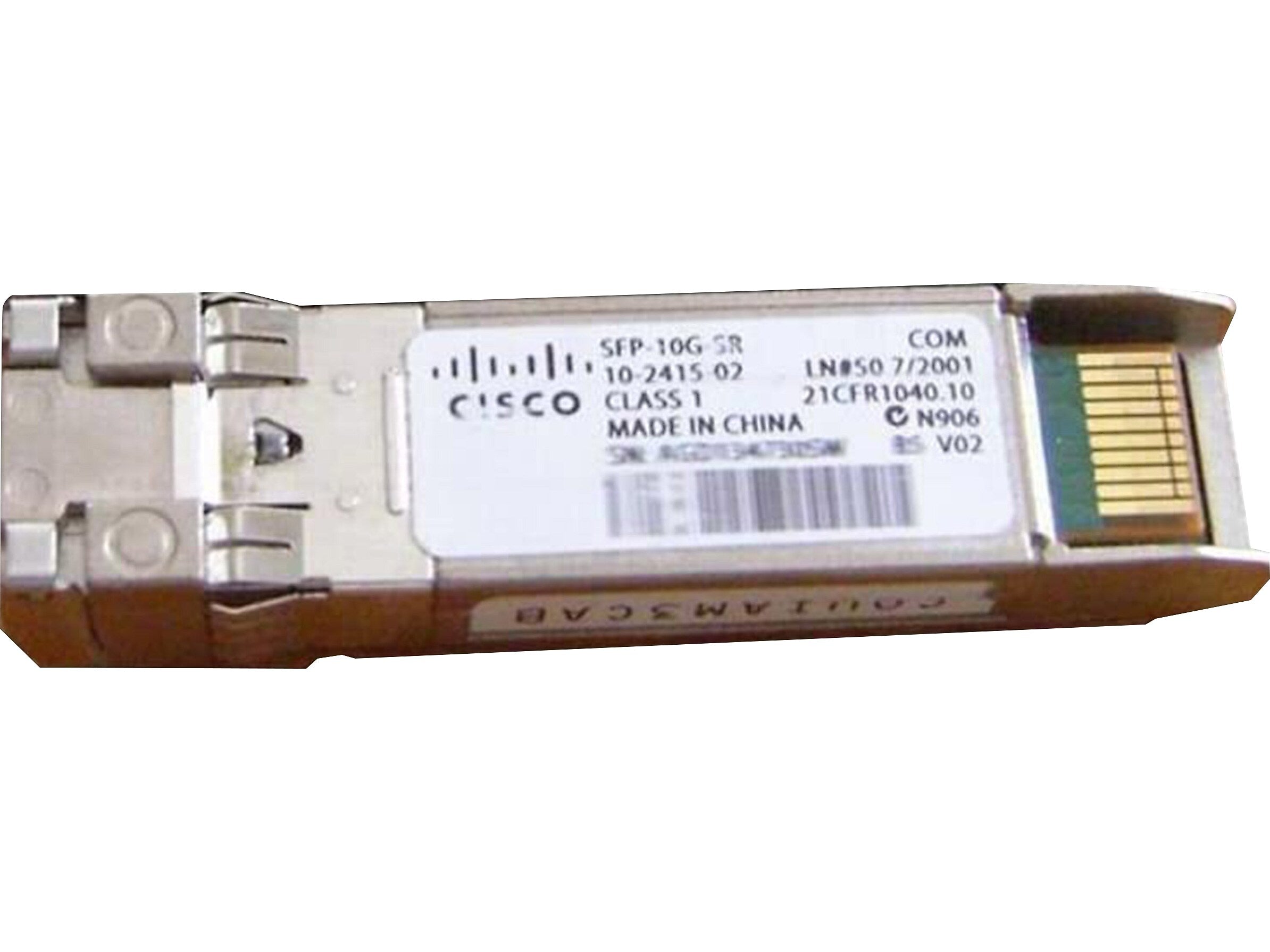

Cisco Gigabit Ethernet Multi-Mode SFP+ Transceiver Module, 10000 Mbps (SFP10GSRS)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Cisco 10GBASE-SR module supports link lengths up to 26m on standard Fiber Distributed Data Interface (FDDI) grade multimode fiber (MMF). Using 2000MHz x km of MMF (OM3), it is possible to create link lengths up to 300m, and with 4700MHz x km MMF (OM4), link lengths up to 400m are possible.
- Multimode fiber optic transceiver with dual LC/PC connector
- 10GBASE SFP+ module for data center, enterprise wiring closet, and service provider transport applications
- Provides data transfer rates up to 10Gbps
- Supports link lengths up to 26m on standard FDDI-grade MMF; up to 300m on 2000MHz x km MMF (OM3); and up to 400m on 4700MHz x km MMF (OM4)
- Power consumption: 1W
- Hot-swappable, plugs into an Ethernet SFP+ port
- Compliant with the SFP+ MSA SFF-8431 standard
- Wavelength: 850nm
- Form factor: Hot-swappable
- MSA compliant
- Commercial temperature: 32 to 158 degrees Fahrenheit
- Supports digital optical monitoring capability
- Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
- 1-year manufacturer limited warranty
| Manufacturer # | SFP10GSRS= |
| Brand Name | Cisco |
| Data Transfer Rate | 10Gbps |
| Data Transfer Rate (gbps) | 10 |
| Data Transfer Rate (mbps) | 10000 |
| Depth in Inches | 2.22 |
| Ethernet | Yes |
| Fiber Cable Type | Multi-Mode |
| Fiber Connector Type | LC |
| Gigabit | Yes |
| Height in Inches | 0.33 |
| Hot Swappable | Yes |
| Msa Compliant | SFP+ MSA SFF-8431 |
| Material of Item | Assorted Materials |
| Max. Data Transfer Rate (mbps) | More than 3000 |
| Max. Distance (meters) | 400 |
| Network Transceiver Type | SFP+ |
| Operating Temperature (celsius) | 0 to 70 |
| Operating Temperature (fahrenheit) | 32 to 158 |
| Power Consumption (watts) | 1 |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Wavelength (nm) | 850 |
| Weight (lbs.) | 0.17 |
| Width in Inches | 0.53 |
Details
The Cisco 10GBASE-SR module supports link lengths up to 26m on standard Fiber Distributed Data Interface (FDDI) grade multimode fiber (MMF). Using 2000MHz x km of MMF (OM3), it is possible to create link lengths up to 300m, and with 4700MHz x km MMF (OM4), link lengths up to 400m are possible.
- Multimode fiber optic transceiver with dual LC/PC connector
- 10GBASE SFP+ module for data center, enterprise wiring closet, and service provider transport applications
- Provides data transfer rates up to 10Gbps
- Supports link lengths up to 26m on standard FDDI-grade MMF; up to 300m on 2000MHz x km MMF (OM3); and up to 400m on 4700MHz x km MMF (OM4)
- Power consumption: 1W
- Hot-swappable, plugs into an Ethernet SFP+ port
- Compliant with the SFP+ MSA SFF-8431 standard
- Wavelength: 850nm
- Form factor: Hot-swappable
- MSA compliant
- Commercial temperature: 32 to 158 degrees Fahrenheit
- Supports digital optical monitoring capability
- Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
- 1-year manufacturer limited warranty
| Attribute Name | Attribute Value |
|---|
