Highlights
View Details- Transceiver module for MMF
- Pull tab comes in blue
- Guarantees a link BER of 1E-12 when supporting 10km on SMF

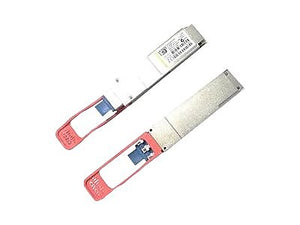

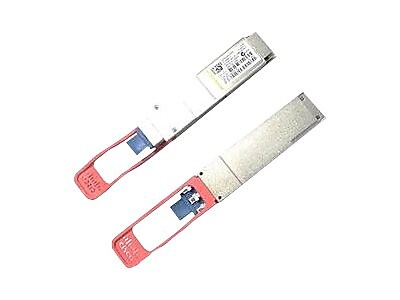

Cisco Module Transceiver (QSFP-40G-LR4-S)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Cisco QSFP module supports link lengths of up to 10 kilometer over a standard pair of G.652 single-mode fiber with duplex LC connectors. The module supports 40GBASE Ethernet rate only. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed in the device. Does not support FCoE.
- Transceiver module for MMF
- Pull tab comes in blue
- Guarantees a link BER of 1E-12 when supporting 10km on SMF
- Maximum power consumption: 3.5W
- Wavelength: 1310nm
- Cable type: SMF
- Core size: G.652 microns
- Cable distance: 10km
- 5-year manufacturer limited warranty
| Manufacturer # | QSFP40GLR4S= |
| Brand Name | Cisco |
| Connector, Port or Interface Type(s) | Duplex LC connector |
| Fiber Cable Type | Single Mode |
| Gigabit | No |
| Max. Distance (meters) | 10000 |
| Network Transceiver Type | QSFP |
| Power Consumption (watts) | 3.5 |
| Selling Quantity (uom) | Each |
| True Color | Blue |
| Used for | SMF |
| Wavelength (nm) | 1310 |
Details
The Cisco QSFP module supports link lengths of up to 10 kilometer over a standard pair of G.652 single-mode fiber with duplex LC connectors. The module supports 40GBASE Ethernet rate only. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed in the device. Does not support FCoE.
- Transceiver module for MMF
- Pull tab comes in blue
- Guarantees a link BER of 1E-12 when supporting 10km on SMF
- Maximum power consumption: 3.5W
- Wavelength: 1310nm
- Cable type: SMF
- Core size: G.652 microns
- Cable distance: 10km
- 5-year manufacturer limited warranty
