View Details- SFP+ module is perfect for data networking, optical network
- Dimensions: 0.3"H x 0.5"W x 2.2"D
- Compatible with A9K-16T/8-B=, ME-3600X-24FS-M=, ME-3600X-24TS-M, N7K-F132XP-15=, N7K-M132XP-12L, WS-X45-SUP7-E/2 networking products

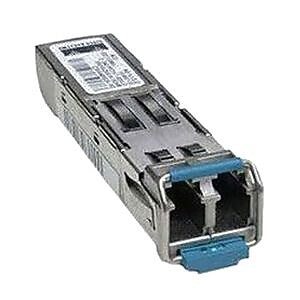

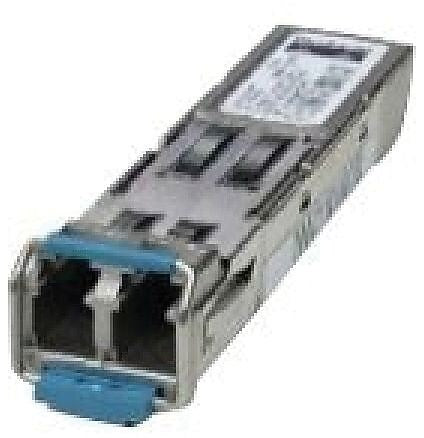

CISCO SFP-10G-LRM SFP Transceiver Module
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
To ensure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3.
- SFP+ module is perfect for data networking, optical network
- Dimensions: 0.3"H x 0.5"W x 2.2"D
- Compatible with A9K-16T/8-B=, ME-3600X-24FS-M=, ME-3600X-24TS-M, N7K-F132XP-15=, N7K-M132XP-12L, WS-X45-SUP7-E/2 networking products
- Interface/ports: 1 x LC duplex 10GBase-LRM network
- Media type supported: Optical fiber, fiber mode supported: Multi-mode, single-mode, Ethernet technology: 10 Gigabit Ethernet
- Maximum data transfer rate: 10 Gbps
- Form factor: Hot-swappable, plug-in module
- Up to 980', fiber optic cable standard: 62.5 ohm m, 50 ohm m, wavelength: 1300nm
- Supports link lengths of 220m on standard fiber distributed data interface (FDDI) grade multimode fiber (MMF)
- Temperature range: 32 - 158 deg F
- Transmit power: -6.5 to 0.5 dBm
- Receive power: -8.4(in average) and -6.4 (in OMA) - 0.5 dBm
- Connectivity media: 62.5 um, 50 um multi-mode fiber 10GBase-LRM, single-mode fiber 10GBase-LRM
- Power consumption: 1 W
- Core size: 62.5 - G.652 microns
- Cable distance: 220 - 300 m
- Cable type: MMF and SMF
- Transmit and receive wave length: 1260 - 1355nm
- Compliant standards: IEEE 802.3ae, IEC 60825-1, laser class 1
- Warranty: 90 days limited
| Manufacturer # | SFP10GLRM= |
| Brand Name | Cisco |
Details
To ensure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3.
- SFP+ module is perfect for data networking, optical network
- Dimensions: 0.3"H x 0.5"W x 2.2"D
- Compatible with A9K-16T/8-B=, ME-3600X-24FS-M=, ME-3600X-24TS-M, N7K-F132XP-15=, N7K-M132XP-12L, WS-X45-SUP7-E/2 networking products
- Interface/ports: 1 x LC duplex 10GBase-LRM network
- Media type supported: Optical fiber, fiber mode supported: Multi-mode, single-mode, Ethernet technology: 10 Gigabit Ethernet
- Maximum data transfer rate: 10 Gbps
- Form factor: Hot-swappable, plug-in module
- Up to 980', fiber optic cable standard: 62.5 ohm m, 50 ohm m, wavelength: 1300nm
- Supports link lengths of 220m on standard fiber distributed data interface (FDDI) grade multimode fiber (MMF)
- Temperature range: 32 - 158 deg F
- Transmit power: -6.5 to 0.5 dBm
- Receive power: -8.4(in average) and -6.4 (in OMA) - 0.5 dBm
- Connectivity media: 62.5 um, 50 um multi-mode fiber 10GBase-LRM, single-mode fiber 10GBase-LRM
- Power consumption: 1 W
- Core size: 62.5 - G.652 microns
- Cable distance: 220 - 300 m
- Cable type: MMF and SMF
- Transmit and receive wave length: 1260 - 1355nm
- Compliant standards: IEEE 802.3ae, IEC 60825-1, laser class 1
- Warranty: 90 days limited
