Highlights
View Details- Video Stream Handling
- Up to 600Mhz dual pixel path and 16bpc
- RGB/YCbCr 4:4:4/4:2:2/4:2:0 pixel format

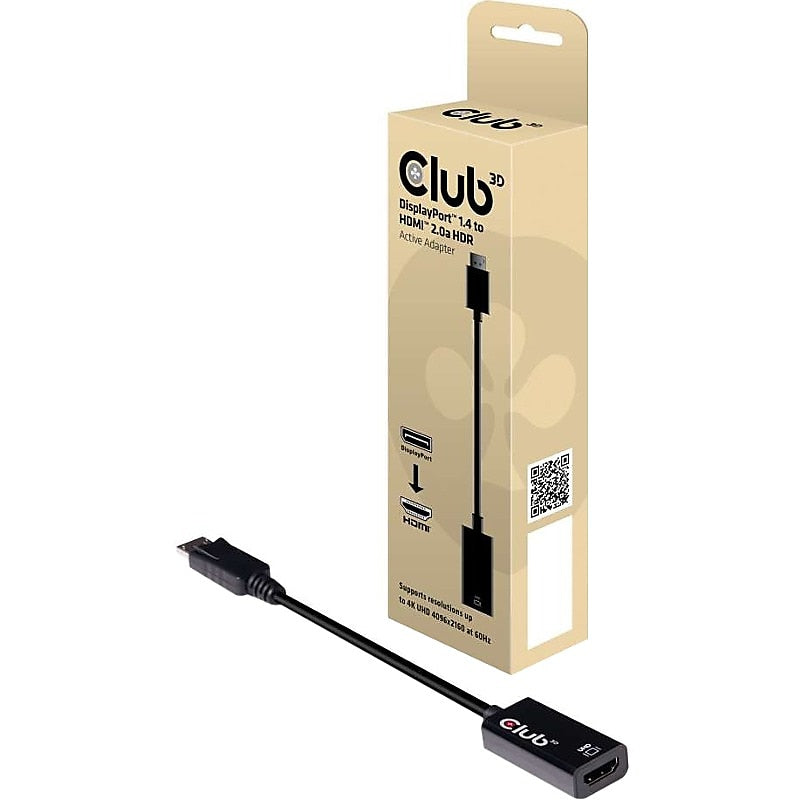

Club 3D CAC-1080 0.63' DisplayPort/HDMI Audio/Video Cable, Black
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
CAC-1080 - The Club3D CAC-1080 is a DisplayPort™1.4 to HDMI™ 2.0a active signal converter. It features support for HDR Video quality for deep color media content playback. The DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0a. The CAC-1080 is downwards compatible to earlier DisplayPort™ and HDMI™ versions, but this can influence the functionality and/or supported features such as HDR. Resolution Support: The CAC-1080 supports UHD resolutions up to 4096 x 2160p at 60Hz. Color Formats: It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort™ and HDMI™ link bandwidth. The CAC-1080 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
- Video Stream Handling
- Up to 600Mhz dual pixel path and 16bpc
- RGB/YCbCr 4:4:4/4:2:2/4:2:0 pixel format
- Horizontal expansion of Vesa CVT to CEA Timings (as per DP™ 1.4 spec)
- DisplayPort™ to HDMI™ Stereoscopic 3D Transport
- Frame Sequential to Stacked Top-Bottom Conversion
- Pass-trough of there 3D Formats
- Audio Stream Handling
- LPCM and compressed Audio encoding formats
- Certifications and standards: FCC, HDCP 1.4, EMI, RoHS, HDCP 2.2, HDCP 1.3, DisplayPort 1.4
| Manufacturer # | CAC1080 |
| Brand Name | Club 3D |
| Cable Length (inches) | 36 |
| Cable Length (ft) | 3 |
| Cable Use | Audio/Video |
| Color Family | Black |
| Connector Gender | Male to Female |
| Data Transfer Rate (gbps) | 5 |
| Data Transfer Rate (mbps) | 5000 |
| Direct Attach Cable (dac) | No |
| Display Port | Yes |
| End 1 Connector Type | HDMI |
| End 2 Connector Type | DisplayPort |
| Hdmi | Yes |
| True Color | Black |
Details
CAC-1080 - The Club3D CAC-1080 is a DisplayPort™1.4 to HDMI™ 2.0a active signal converter. It features support for HDR Video quality for deep color media content playback. The DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0a. The CAC-1080 is downwards compatible to earlier DisplayPort™ and HDMI™ versions, but this can influence the functionality and/or supported features such as HDR. Resolution Support: The CAC-1080 supports UHD resolutions up to 4096 x 2160p at 60Hz. Color Formats: It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort™ and HDMI™ link bandwidth. The CAC-1080 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
- Video Stream Handling
- Up to 600Mhz dual pixel path and 16bpc
- RGB/YCbCr 4:4:4/4:2:2/4:2:0 pixel format
- Horizontal expansion of Vesa CVT to CEA Timings (as per DP™ 1.4 spec)
- DisplayPort™ to HDMI™ Stereoscopic 3D Transport
- Frame Sequential to Stacked Top-Bottom Conversion
- Pass-trough of there 3D Formats
- Audio Stream Handling
- LPCM and compressed Audio encoding formats
- Certifications and standards: FCC, HDCP 1.4, EMI, RoHS, HDCP 2.2, HDCP 1.3, DisplayPort 1.4
| Attribute Name | Attribute Value |
|---|
