View Details- Triple-display charging dock is an integrated solution combining video, data, power, Ethernet, and audio especially for frequent travelers

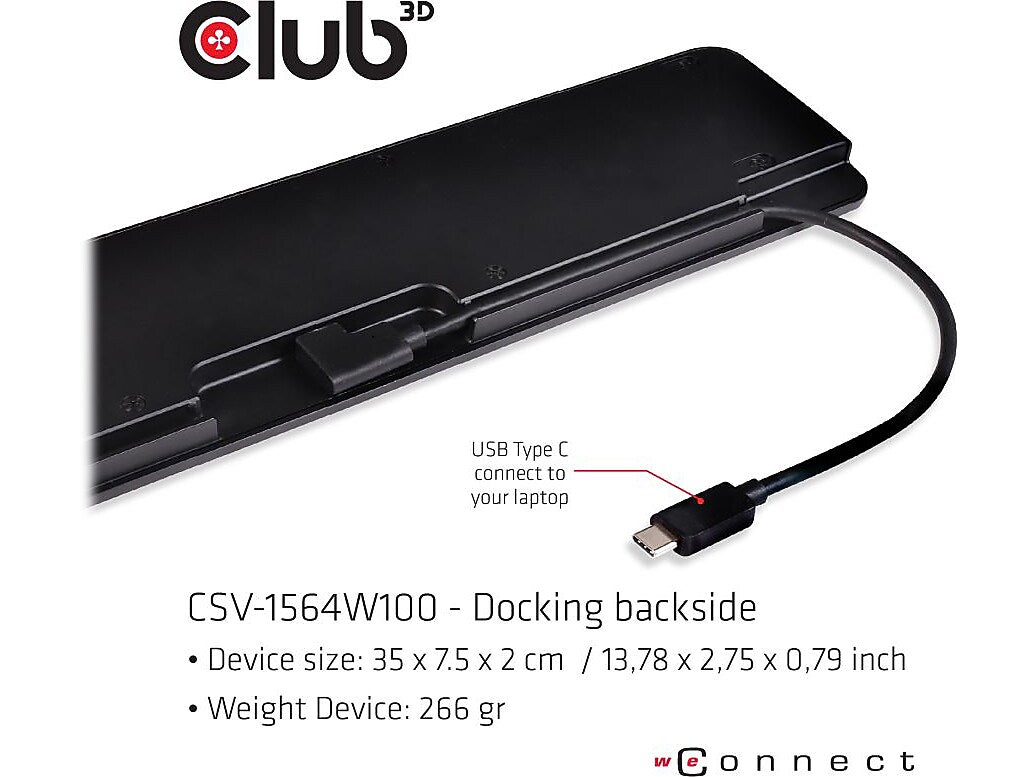

- Dimensions: 0.79"H x 13.78"W x 2.95"D
- USB Gen1 Type-C female for connecting to the host

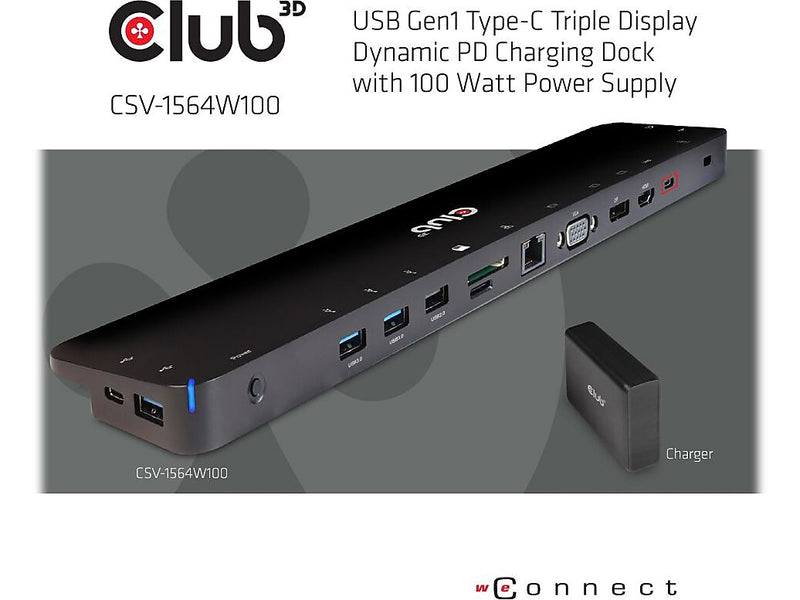

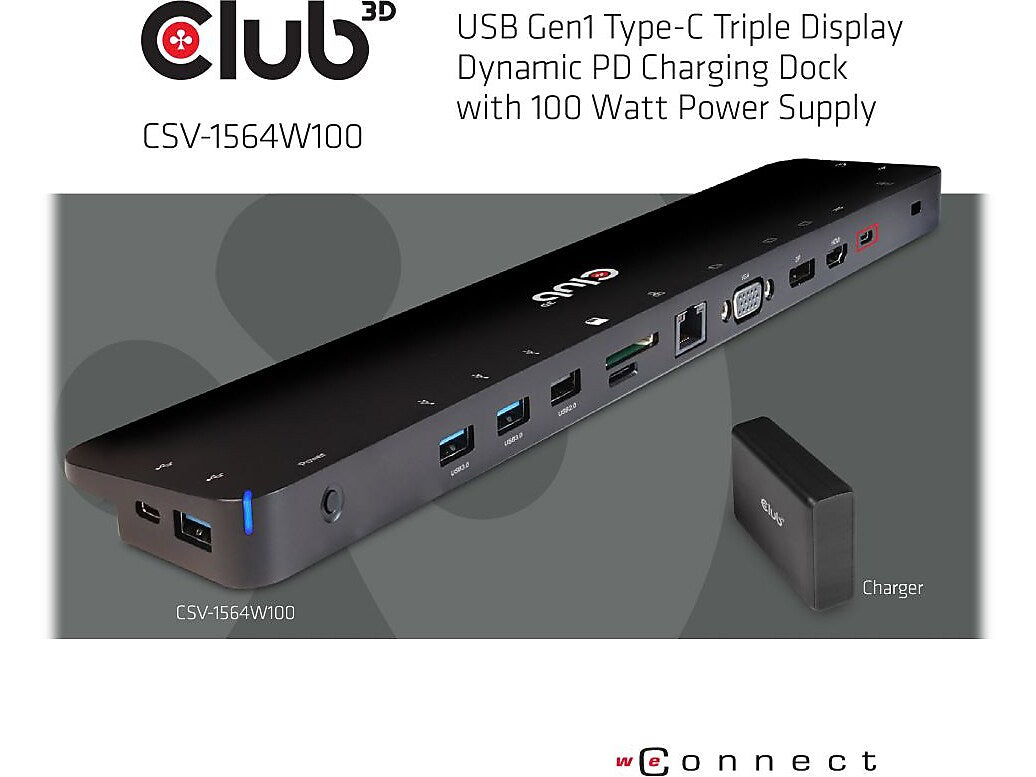

Club 3D Triple Display Charging Docking Station (CSV-1564W100)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Club-3D USB 3.2 Gen1 C Triple Display Dynamic PD charging dock is an integrated solution combining video, data, power, Ethernet, and audio, especially for frequent travelers. The three different video ports(HDMI, DisplayPort, VGA) allow you to enjoy three different images or videos on three different displays simultaneously under MST mode. The USB Type-A ports and USB Type-C data ports allow you to connect multiple USB devices to the host. The USB Type C charging port allows you to provide power for this dock and can charge the host PC at the same time by connecting a PD power adapter, no need to carry your notebook's power supply. So in general the user is traveling lighter. The micro SD and SD/MMC ports allow you to read the information in the memory card onto the host. The 3.5mm audio port allows enjoying the music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high-speed Ethernet on the host. It supports all DP Alt mode-supported hosts. Dynamic current detection and power distribution, the product no longer intercepts the fixed power from the external PD power supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged with more power.
- Triple-display charging dock is an integrated solution combining video, data, power, Ethernet, and audio especially for frequent travelers
- Dimensions: 0.79"H x 13.78"W x 2.95"D
- USB Gen1 Type-C female for connecting to the host

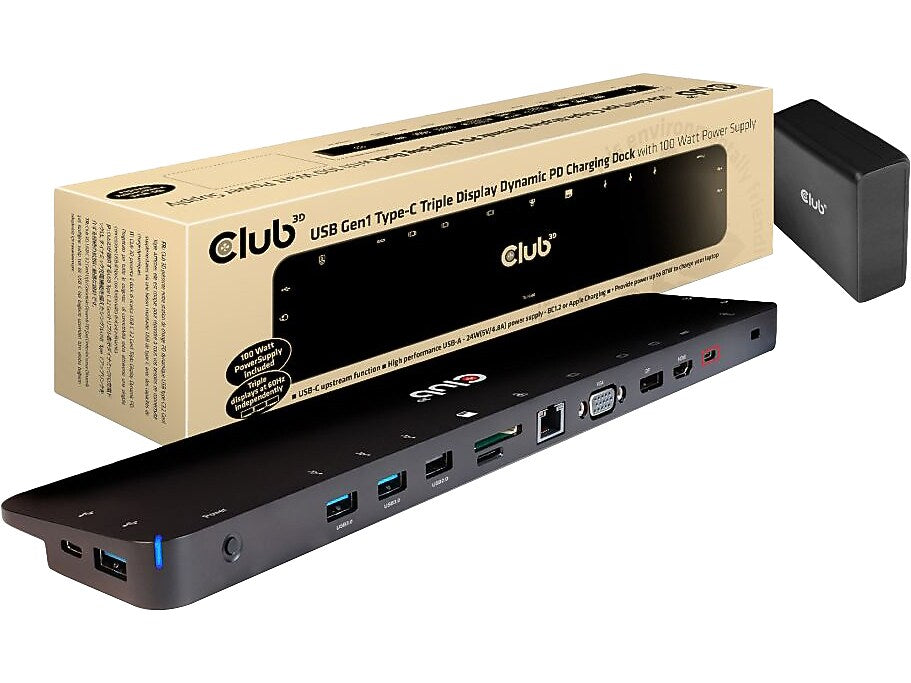

- Package includes: docking station, 100W power supply, two USB Type-C cables, connection to host (0.8' USB Type-C cable and 3.28' USB Type-C cable), and quick installation guide

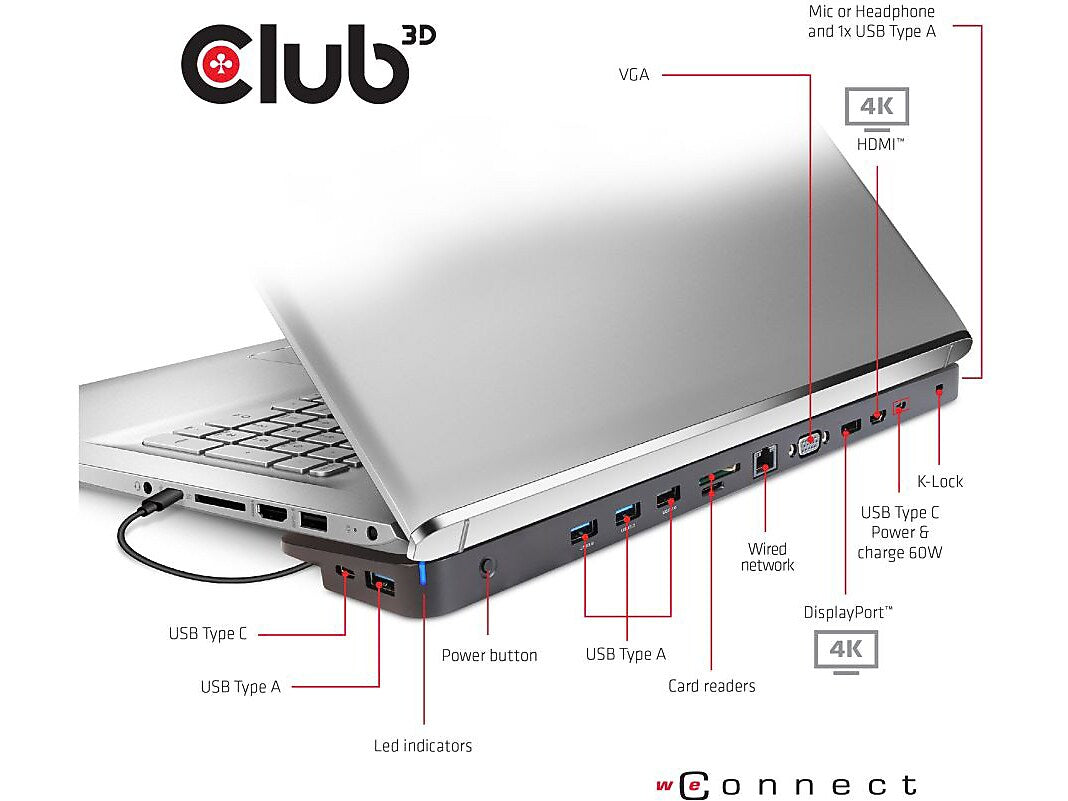

- Contains: 2 x USB Gen 1 Type-C female (one for data, one for PD charging), 3 x USB Gen 1 Type-A, 2 x USB 2.0 Type-A, 1 x HDMI, 1 x DisplayPort, 1 x VGA, 1 x RJ45 jack, 1 x SD slot, 1 x microSD slot, and 1 x 3.5mm stereo jack
- Three different video ports allow you to enjoy three different images or videos on three different displays simultaneously under MST mode

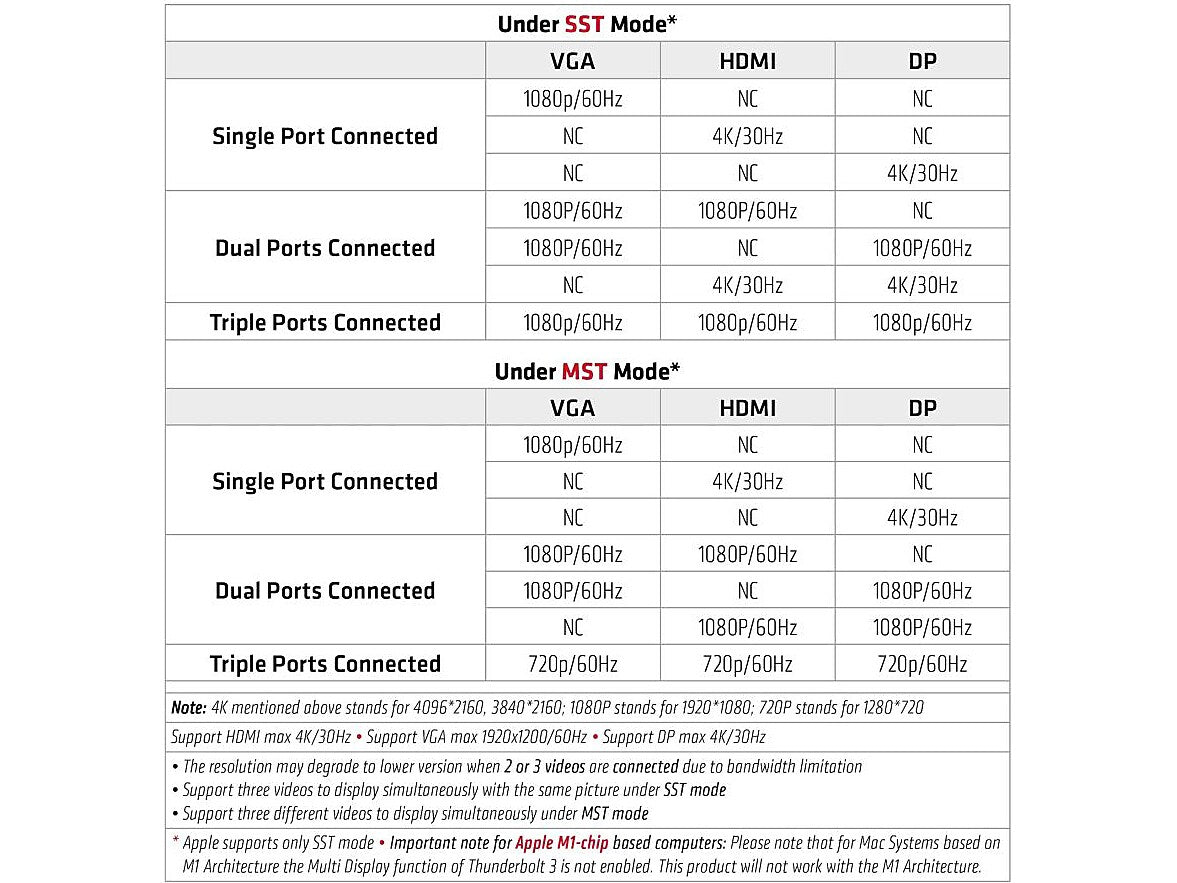

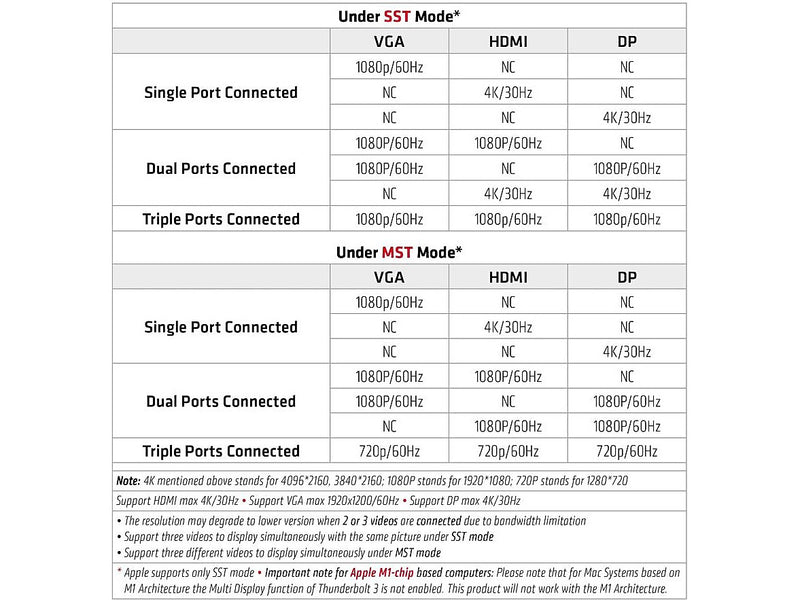

- Supported resolutions: up to 4K at 30Hz for the HDMI and DP ports and up to 1920 x 1200 at 60Hz for the VGA port
- USB Type-A ports and USB Type-C data ports allow you to connect multiple USB devices to the host

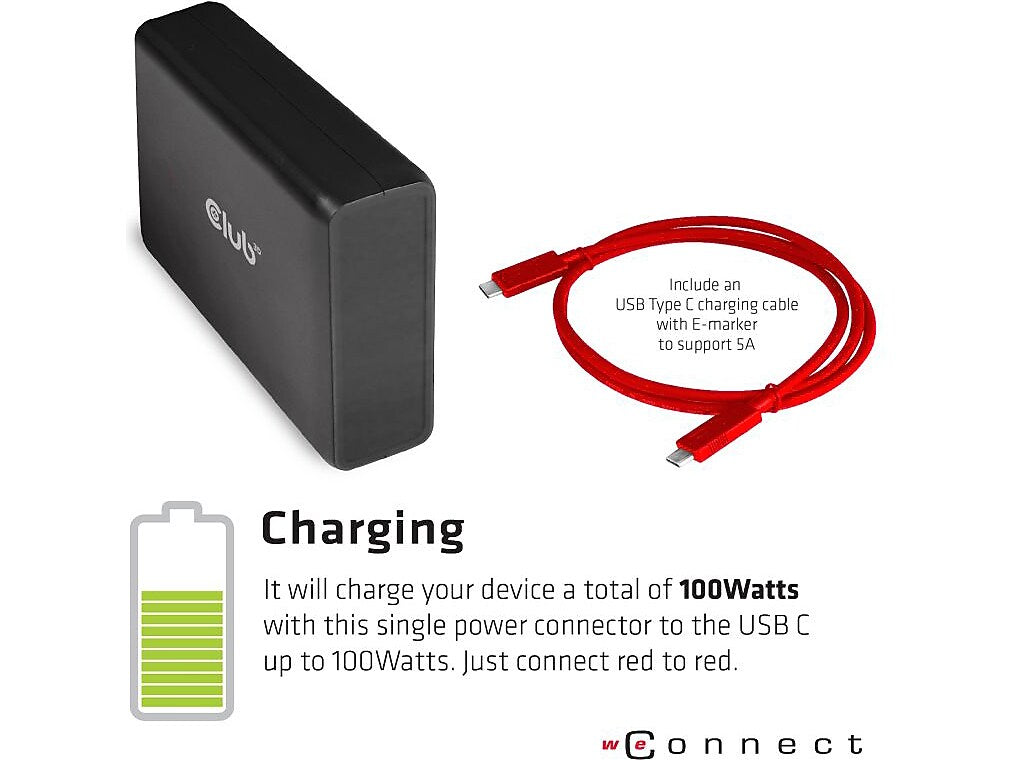

- USB Type-C charging port allows you to provide power for this dock and can charge the host PC at the same time by connecting a PD power adapter
- Micro SD and SD/MMC ports allow you to read information in the memory card onto the host
- 3.5mm audio port allows enjoying music of the host via a headset
- With the Gigabit Ethernet port, you can enjoy high-speed Ethernet on the host
- Supports all DP Alt Mode hosts (PC, laptop, mobile phone, etc.)
- Supports data transmission speeds up to 5Gbps on the USB 3.2 Gen 1 Type-C ports
- Supports Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD PowerSupply, but intercepts it according to the actual power consumed by itself
- Meets or exceeds ROHS, FCC, and CE EMI standards
- 2-year manufacturer limited warranty
| Manufacturer # | CSV1564W100 |
| # of Dvi Ports | 0 |
| Brand Name | Club 3D |
| Cables Included | Yes |
| Connector, Port or Interface Type(s) | USB Gen1 Type-C Female for connecting to host |
| Data Transfer Rate (gbps) | 5 |
| Depth in Inches | 2.95 |
| Docking Station Type | Universal |
| Height in Inches | 0.79 |
| Number of Displayports | 1 |
| Number of Ethernet Ports | 1 |
| Number of Hdmi Ports | 1 |
| Number of Usb Ports | 8 |
| Number of Vga Port(s) | 1 |
| Os Compatibility | Microsoft Windows, Mac OSX supports SST mode only |
| Screen Resolution | Up to 4K at 30 fps |
| True Color | Black |
| Warranty Information | 2 Year |
| Weight (lbs.) | 0.55 |
| Width in Inches | 13.78 |
Details
The Club-3D USB 3.2 Gen1 C Triple Display Dynamic PD charging dock is an integrated solution combining video, data, power, Ethernet, and audio, especially for frequent travelers. The three different video ports(HDMI, DisplayPort, VGA) allow you to enjoy three different images or videos on three different displays simultaneously under MST mode. The USB Type-A ports and USB Type-C data ports allow you to connect multiple USB devices to the host. The USB Type C charging port allows you to provide power for this dock and can charge the host PC at the same time by connecting a PD power adapter, no need to carry your notebook's power supply. So in general the user is traveling lighter. The micro SD and SD/MMC ports allow you to read the information in the memory card onto the host. The 3.5mm audio port allows enjoying the music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high-speed Ethernet on the host. It supports all DP Alt mode-supported hosts. Dynamic current detection and power distribution, the product no longer intercepts the fixed power from the external PD power supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged with more power.
- Triple-display charging dock is an integrated solution combining video, data, power, Ethernet, and audio especially for frequent travelers
- Dimensions: 0.79"H x 13.78"W x 2.95"D
- USB Gen1 Type-C female for connecting to the host
- Package includes: docking station, 100W power supply, two USB Type-C cables, connection to host (0.8' USB Type-C cable and 3.28' USB Type-C cable), and quick installation guide
- Contains: 2 x USB Gen 1 Type-C female (one for data, one for PD charging), 3 x USB Gen 1 Type-A, 2 x USB 2.0 Type-A, 1 x HDMI, 1 x DisplayPort, 1 x VGA, 1 x RJ45 jack, 1 x SD slot, 1 x microSD slot, and 1 x 3.5mm stereo jack
- Three different video ports allow you to enjoy three different images or videos on three different displays simultaneously under MST mode
- Supported resolutions: up to 4K at 30Hz for the HDMI and DP ports and up to 1920 x 1200 at 60Hz for the VGA port
- USB Type-A ports and USB Type-C data ports allow you to connect multiple USB devices to the host
- USB Type-C charging port allows you to provide power for this dock and can charge the host PC at the same time by connecting a PD power adapter
- Micro SD and SD/MMC ports allow you to read information in the memory card onto the host
- 3.5mm audio port allows enjoying music of the host via a headset
- With the Gigabit Ethernet port, you can enjoy high-speed Ethernet on the host
- Supports all DP Alt Mode hosts (PC, laptop, mobile phone, etc.)
- Supports data transmission speeds up to 5Gbps on the USB 3.2 Gen 1 Type-C ports
- Supports Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD PowerSupply, but intercepts it according to the actual power consumed by itself
- Meets or exceeds ROHS, FCC, and CE EMI standards
- 2-year manufacturer limited warranty
