Highlights
View Details- Triple display dynamic PD charging dock is an integrated solution combining video, data, power, Ethernet, and audio, especially for frequent travelers
- Dimensions: 0.79"H x 13.78"W x 2.95"D
- Input: USB Type-C (female, connection to host)
Club 3D Triple Display Charging Docking Station with 65W Power Supply (CSV-1564W65)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Club 3D USB Gen1 Type-C triple display dynamic PD charging dock is an integrated solution combining video, data, power, Ethernet, and audio, especially for frequent travelers. The three different video ports (HDMI, DisplayPort, VGA) allow you to enjoy three different images or videos on three different displays simultaneously under MST mode. It supports all DP Alt mode supported hosts (PC, laptop, mobile phone, etc.), dynamic current detection, and power distribution, the product no longer intercepts the fixed power from the external PD power supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power.
- Triple display dynamic PD charging dock is an integrated solution combining video, data, power, Ethernet, and audio, especially for frequent travelers
- Dimensions: 0.79"H x 13.78"W x 2.95"D
- Input: USB Type-C (female, connection to host)
- Package includes: docking station, 65W power supply, two USB Type-C cables, one 10.63" connection to host cable, one 3.28' RED USB Type-C cable for charging to PowerSupply, and quick installation guide
- Contains: 2 x USB Gen 1 Type-C (female, one for data, one for PD charging), 3 x USB Gen 1 Type-A, 2 x USB 2.0 Type-A, 1 x HDMI, 1 x DisplayPort, 1 x VGA, 1 x RJ45, 1 x SD slot, 1 x microSD slot, and 1 x 3.5mm stereo jack (headphone/mic)
- Three different video ports allow you to enjoy three different images or videos on three different displays simultaneously under MST mode

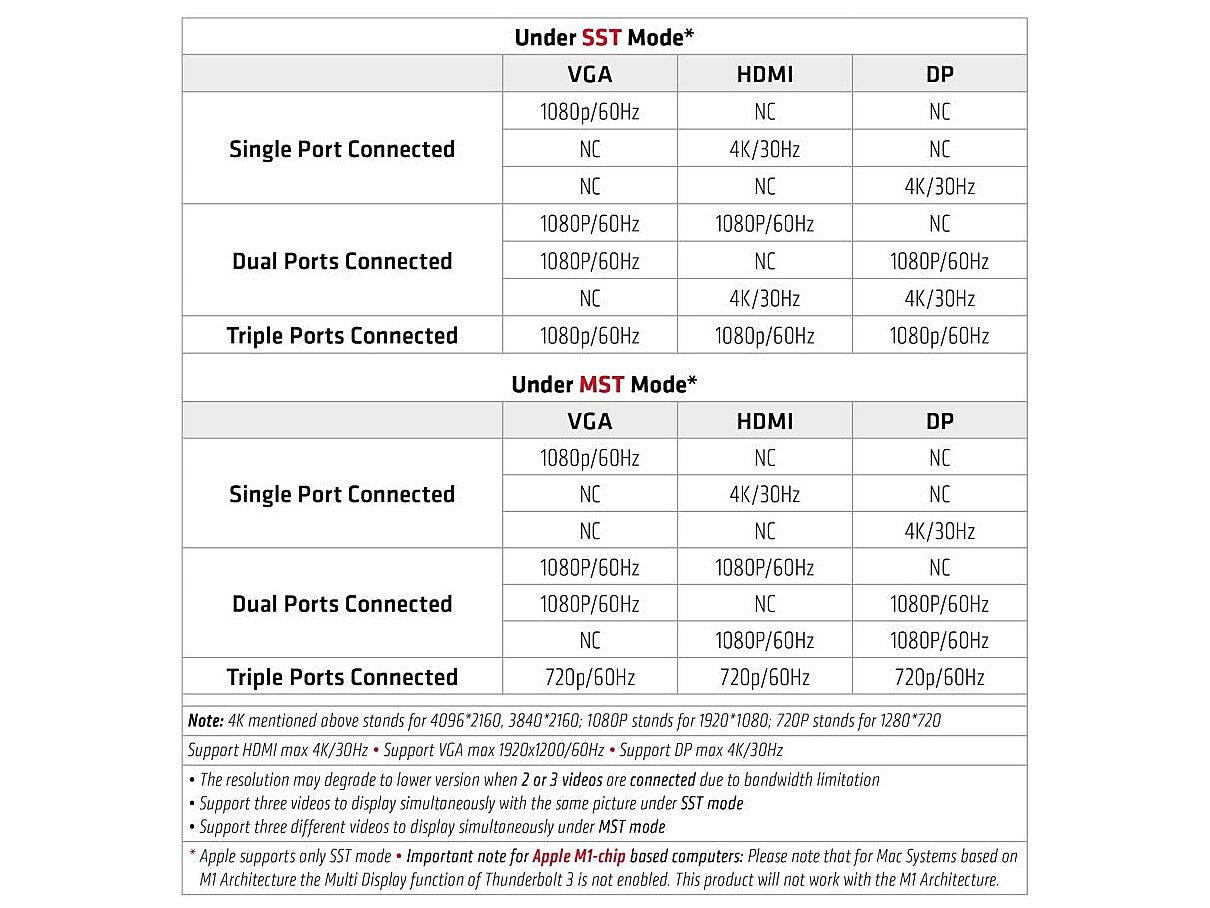

- Supported resolutions: up to 4K at 30Hz for the HDMI and DP ports and up to 1920 x 1200 at 60Hz for the VGA port
- USB Type-A ports and USB Type-C data port allow you to connect multiple USB devices to the host
- USB Type-C charging port allows you to provide power for this dock and can charge the host PC at the same time by connecting a PD power adapter (no need to carry your notebooks' power supply)
- microSD and SD/MMC ports allow you to read the information in the memory card onto the host
- 3.5mm audio port allows enjoying the music of the host via headset
- One port IEEE 802.3 Ethernet support for up to 1000BASE-TX
- Supports all DP Alt Mode hosts (PC, laptop, mobile phone, etc.)
- Supports max. 5Gbps data transmission on the USB Gen1 Type-C ports
- Supports dynamic current detection and power distribution: the station no longer intercepts the fixed power from the external PD power supply, but intercepts it according to the actual power consumed by itself
- Meets or exceeds the ROHS, FCC, and CE EMI requirements
- 2-year manufacturer limited warranty
| Manufacturer # | CSV1564W65 |
| # of Dvi Ports | 0 |
| Brand Name | Club 3D |
| Cables Included | Yes |
| Connector, Port or Interface Type(s) | USB Gen1 Type-C female for connecting to host |
| Data Transfer Rate (gbps) | 5 |
| Depth in Inches | 2.95 |
| Docking Station Type | Universal |
| Height in Inches | 0.79 |
| Number of Displayports | 1 |
| Number of Ethernet Ports | 1 |
| Number of Hdmi Ports | 1 |
| Number of Usb Ports | 7 |
| Number of Vga Port(s) | 1 |
| Os Compatibility | Microsoft Windows 10, Mac OSX supports SST mode only |
| Screen Resolution | Up to 4K at 30 fps |
| True Color | Black |
| Warranty Information | 2 Year |
| Weight (lbs.) | 0.55 |
| Width in Inches | 13.78 |
Details
The Club 3D USB Gen1 Type-C triple display dynamic PD charging dock is an integrated solution combining video, data, power, Ethernet, and audio, especially for frequent travelers. The three different video ports (HDMI, DisplayPort, VGA) allow you to enjoy three different images or videos on three different displays simultaneously under MST mode. It supports all DP Alt mode supported hosts (PC, laptop, mobile phone, etc.), dynamic current detection, and power distribution, the product no longer intercepts the fixed power from the external PD power supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power.
- Triple display dynamic PD charging dock is an integrated solution combining video, data, power, Ethernet, and audio, especially for frequent travelers
- Dimensions: 0.79"H x 13.78"W x 2.95"D
- Input: USB Type-C (female, connection to host)
- Package includes: docking station, 65W power supply, two USB Type-C cables, one 10.63" connection to host cable, one 3.28' RED USB Type-C cable for charging to PowerSupply, and quick installation guide
- Contains: 2 x USB Gen 1 Type-C (female, one for data, one for PD charging), 3 x USB Gen 1 Type-A, 2 x USB 2.0 Type-A, 1 x HDMI, 1 x DisplayPort, 1 x VGA, 1 x RJ45, 1 x SD slot, 1 x microSD slot, and 1 x 3.5mm stereo jack (headphone/mic)
- Three different video ports allow you to enjoy three different images or videos on three different displays simultaneously under MST mode
- Supported resolutions: up to 4K at 30Hz for the HDMI and DP ports and up to 1920 x 1200 at 60Hz for the VGA port
- USB Type-A ports and USB Type-C data port allow you to connect multiple USB devices to the host
- USB Type-C charging port allows you to provide power for this dock and can charge the host PC at the same time by connecting a PD power adapter (no need to carry your notebooks' power supply)
- microSD and SD/MMC ports allow you to read the information in the memory card onto the host
- 3.5mm audio port allows enjoying the music of the host via headset
- One port IEEE 802.3 Ethernet support for up to 1000BASE-TX
- Supports all DP Alt Mode hosts (PC, laptop, mobile phone, etc.)
- Supports max. 5Gbps data transmission on the USB Gen1 Type-C ports
- Supports dynamic current detection and power distribution: the station no longer intercepts the fixed power from the external PD power supply, but intercepts it according to the actual power consumed by itself
- Meets or exceeds the ROHS, FCC, and CE EMI requirements
- 2-year manufacturer limited warranty
