Highlights
View Details- SIP paging adapter is a VoIP endpoint that connects analog paging systems with SIP and multicast-based audio sources
- No. of SIP extensions: Two
- Control: Voice prompt pass code and page

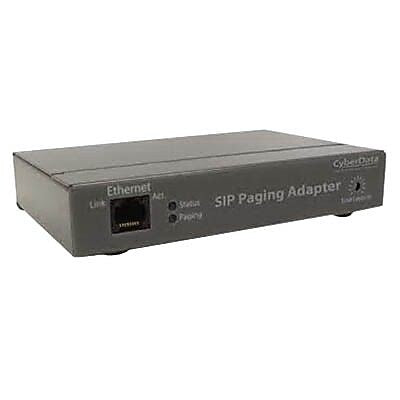

CyberData 011233 10/100 Mbps SIP Paging Adapter, Gray (011233)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The CyberData 10/100 Mbps SIP paging adapter in gray, works with two separate SIP extensions. It features 10 channel prioritized multicast ports for reliable connectivity. This adapter supports up to nine user-loadable page messages that allows you to play with the help of DTMF command. It requires 10 kilo-Ohms input for background music and 600 Ohms balanced audio out. The adapter with built-in diagnostics, has remote amp fault sensor.
- SIP paging adapter is a VoIP endpoint that connects analog paging systems with SIP and multicast-based audio sources
- No. of SIP extensions: Two
- Control: Voice prompt pass code and page
- Dimensions: 6.11"L x 4.05" x 1.15"H
- Ethernet I/F: 10/100 Mbps
- Power input: PoE 802.3af or 48 VDC, RCA input signal amplitude: 2 VPP maximum
- Page port output balanced: 600 Ohm 5 VPP, Payload types: G711
- RCA output impedance: 10k Ohms
- Protocol: SIP RFC 3261 compatible
- User-uploadable page messages: Up to 9 messages
- Features: 10 channel prioritized multicast ports, DTMF and programmatic controlled relay, DTMF pass-through
- Features: HTTP web interface and setup, built-in diagnostics, remote amp fault sensor
- Also features 10 channel prioritized multicast ports, DTMF pass through
- SIP Paging Adapter is a VoIP endpoint that interfaces analog paging systems with SIP and Multicast-based audio sources
- When called, SIP extension two plays a bell audio that can be used as a night ringer when configured in a night ring group
- Regulatory compliance: FCC Class A, UL 60950
- Warranty: 2 years limited
| Manufacturer # | 011233 |
| Brand Name | CyberData |
| Compatibility | SIP RFC 3261 compatible |
| Depth in Inches | 6.11 |
| Height in Inches | 1.15 |
| Pack Qty | 1 |
| Power Source | Adapter |
| Security System Accessory Type | Adapter |
| True Color | Gray |
| Width in Inches | 4.05 |
Details
The CyberData 10/100 Mbps SIP paging adapter in gray, works with two separate SIP extensions. It features 10 channel prioritized multicast ports for reliable connectivity. This adapter supports up to nine user-loadable page messages that allows you to play with the help of DTMF command. It requires 10 kilo-Ohms input for background music and 600 Ohms balanced audio out. The adapter with built-in diagnostics, has remote amp fault sensor.
- SIP paging adapter is a VoIP endpoint that connects analog paging systems with SIP and multicast-based audio sources
- No. of SIP extensions: Two
- Control: Voice prompt pass code and page
- Dimensions: 6.11"L x 4.05" x 1.15"H
- Ethernet I/F: 10/100 Mbps
- Power input: PoE 802.3af or 48 VDC, RCA input signal amplitude: 2 VPP maximum
- Page port output balanced: 600 Ohm 5 VPP, Payload types: G711
- RCA output impedance: 10k Ohms
- Protocol: SIP RFC 3261 compatible
- User-uploadable page messages: Up to 9 messages
- Features: 10 channel prioritized multicast ports, DTMF and programmatic controlled relay, DTMF pass-through
- Features: HTTP web interface and setup, built-in diagnostics, remote amp fault sensor
- Also features 10 channel prioritized multicast ports, DTMF pass through
- SIP Paging Adapter is a VoIP endpoint that interfaces analog paging systems with SIP and Multicast-based audio sources
- When called, SIP extension two plays a bell audio that can be used as a night ringer when configured in a night ring group
- Regulatory compliance: FCC Class A, UL 60950
- Warranty: 2 years limited
| Attribute Name | Attribute Value |
|---|
