Highlights
View Details- Equipped with six surge-protected outlets for seamless connectivity (four battery-connected).
- Multifunction LCD Panel displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Runtime of 3 min at Full Load, 12 min at Half Load.
CyberPower Smart App LCD, 6 Outlets, 500 VA, 1,150 J
Log in to see pricing

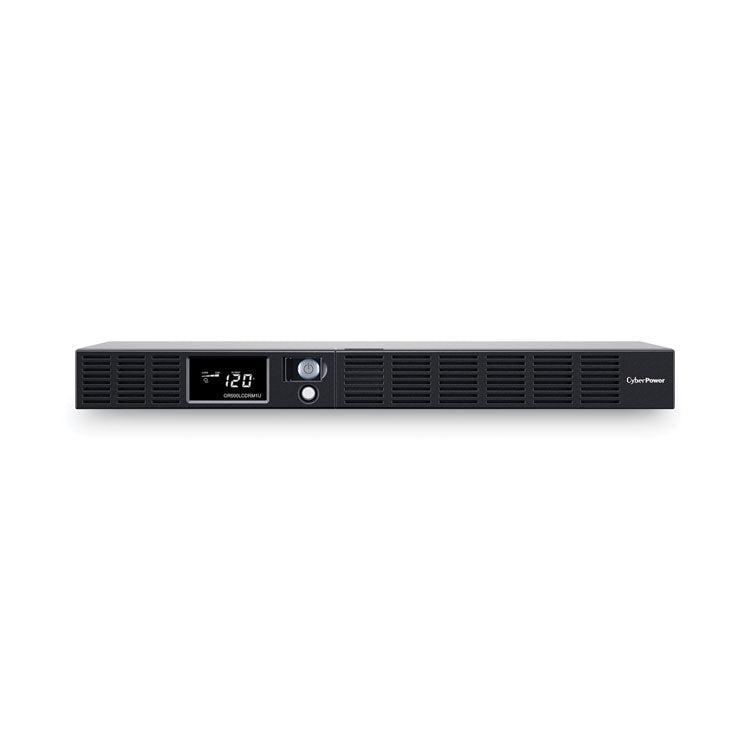

This 1U rackmount uninterruptible power supply (UPS) provides battery backup power and surge protection for connected equipment including servers, network devices, workstations, and telecom installations. Additional features include automatic voltage regulation (AVR) to correct minor fluctuations in utility power without switching to battery mode and a multifunction LCD to keep you informed about power conditions. The UPS also offers remote management capabilities with an optional network management card. The Smart App LCD OR500LCDRM1U comes with a three-year warranty (including coverage of batteries) and a $300,000 lifetime connected equipment guarantee.
- Equipped with six surge-protected outlets for seamless connectivity (four battery-connected).
- Multifunction LCD Panel displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Runtime of 3 min at Full Load, 12 min at Half Load.
- The Nominal Input Voltage is 120 VAC using an input plug type NEMA 5-15P.
- UPS protects electronic equipment and prevents data loss during a power outage.

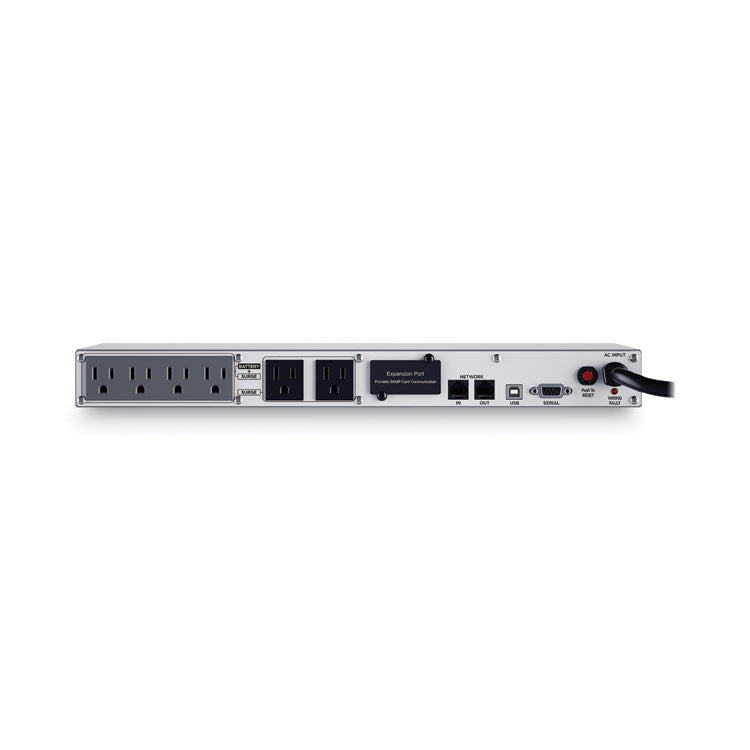

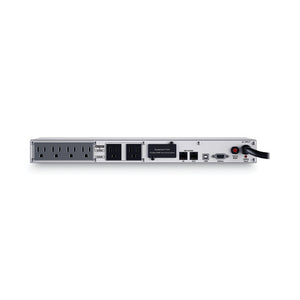

- Features serial and USB interfaces for communication and management and provides surge protection and filtering for RJ11/RJ45 (in/out combo) ports and coax lines (in/out).
- Automatic Voltage Regulation (AVR) provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
Manufacturer # | OR500LCDRM1U |
Global Product Type | Backup Systems |
Protection Type | Power |
System VA | 500 VA |
Backup Time at Half Load | 12 min @ 150 W |
Automatic Voltage Regulation (AVR) | Yes |
Battery Recharge Time | 8 h |
Connected Equipment Guarantee/Warranty | Lifetime $300,000 |
Backup Time at Full Load | 3 min @ 300 W |
Jacks/Ports | RJ11 |
Jacks/Ports | RJ45 |
Connector/Port/Interface | Coaxial |
Connector/Port/Interface | NEMA 5-15R |
Connector/Port/Interface | USB |
Joules Of Surge Protection | 1,150 J |
Noise Protection | EMI/RFI Noise Suppression |
Number of Outlets | 6 |
Diagnostics/Alarm/Status Light | Alarm |
Diagnostics/Alarm/Status Light | LED |
React Time | 8 ms |
Cord Length | 10 ft |
Color(s) | Black |
Backup Systems Alarm(s) | Audible |
Input Frequency | 57-63 Hz |
Model Name/Number | Smart App LCD UPS Series OR500LCDRM1U |
Number of Outlets/Type | 4 UPS/Surge |
Number of Outlets/Type | 2 Surge Only |
Weight | 18 lbs |
Product Biodegradability in Days | 0 |
Package Includes | (2) Rack Mount Brackets |
Package Includes | (1) USB A+B Type Cable |
Package Includes | User Manual |
Compliance Standards | cUL |
Compliance Standards | Energy Star Rated |
Compliance Standards | FCC Class B Certified |
Compliance Standards | RoHS |
Compliance Standards | UL Listed |
Pre-Consumer Recycled Content Percent | 0% |
Post-Consumer Recycled Content Percent | 0% |
Total Recycled Content Percent | 0% |
This 1U rackmount uninterruptible power supply (UPS) provides battery backup power and surge protection for connected equipment including servers, network devices, workstations, and telecom installations. Additional features include automatic voltage regulation (AVR) to correct minor fluctuations in utility power without switching to battery mode and a multifunction LCD to keep you informed about power conditions. The UPS also offers remote management capabilities with an optional network management card. The Smart App LCD OR500LCDRM1U comes with a three-year warranty (including coverage of batteries) and a $300,000 lifetime connected equipment guarantee.
- Equipped with six surge-protected outlets for seamless connectivity (four battery-connected).
- Multifunction LCD Panel displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Runtime of 3 min at Full Load, 12 min at Half Load.
- The Nominal Input Voltage is 120 VAC using an input plug type NEMA 5-15P.
- UPS protects electronic equipment and prevents data loss during a power outage.
- Features serial and USB interfaces for communication and management and provides surge protection and filtering for RJ11/RJ45 (in/out combo) ports and coax lines (in/out).
- Automatic Voltage Regulation (AVR) provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
Attribute Name | Attribute Value |
---|
