Highlights
View Details- 5 x 10/100/1000Base-T
- 128KB buffer
- Interfaces/ports: 5 x Network (RJ-45), 5 x gigabit Ethernet network

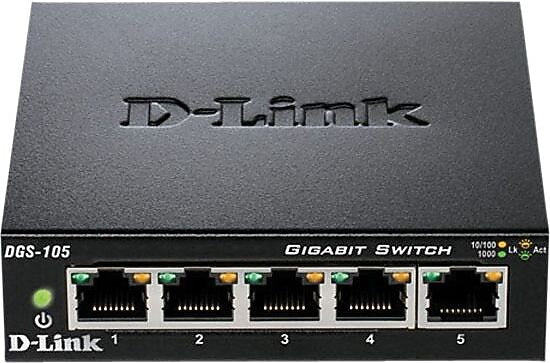

D-Link 5-Port Gigabit Ethernet Managed Switch (DGS105)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Features auto-negotiation, auto-sensing/device detection, flow control, packet filtering, and store-and-forward capabilities.
- 5 x 10/100/1000Base-T
- 128KB buffer
- Interfaces/ports: 5 x Network (RJ-45), 5 x gigabit Ethernet network
- Data transfer rate: 2000 Mbps (full-duplex)
- Filtering address table: 8K MAC entries/device
- Dimensions: 1.2"(H) x 7.8"(W) x 4.5"(D)
- Power: 5 VDC, 1 A, power consumption: 4.5 W
- Media type supported: Cat 5 twisted-pair
- Protocol: CSMA/CD
- LED indicators:/port: Link/Activity/Speed,/device: power
- Management: QoS: 802.1p (4 Queues), Priority queuing
- Form factor: Desktop, wall mountable, MTBF: 593,755 hours
- Supports jumbo frame packets (max size up to 9.6KB)
- Network technology: 10/100/1000Base-T Gigabit Ethernet
- Certification & standards: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
- Weight: 0.57 lbs.
- Warranty: Lifetime limited
| Manufacturer # | DGS105 |
| Address Database Size | 8000 |
| Auto-sensing | Yes |
| Brand Name | D-Link |
| Buffer Memory | 128KB |
| Data Transfer Rate (mbps) | 2000 |
| Depth in Inches | 4.5 |
| Full-duplex | Yes |
| Height in Inches | 1.2 |
| Max. Data Transfer Rate (mbps) | 2000 - 2499 |
| Network Management Type | Managed Switch |
| Number of Ethernet Ports | 5 |
| Performance Class | Gigabit Ethernet |
| Quality of Service | Yes |
| Snmp | No |
| Series Or Collection | DGS-105 |
| Switch Form Factor | Desktop, Wall Mountable |
| Warranty Information | Limited Lifetime Warranty |
| Weight (lbs.) | 0.57 |
| Width in Inches | 7.8 |
Details
Features auto-negotiation, auto-sensing/device detection, flow control, packet filtering, and store-and-forward capabilities.
- 5 x 10/100/1000Base-T
- 128KB buffer
- Interfaces/ports: 5 x Network (RJ-45), 5 x gigabit Ethernet network
- Data transfer rate: 2000 Mbps (full-duplex)
- Filtering address table: 8K MAC entries/device
- Dimensions: 1.2"(H) x 7.8"(W) x 4.5"(D)
- Power: 5 VDC, 1 A, power consumption: 4.5 W
- Media type supported: Cat 5 twisted-pair
- Protocol: CSMA/CD
- LED indicators:/port: Link/Activity/Speed,/device: power
- Management: QoS: 802.1p (4 Queues), Priority queuing
- Form factor: Desktop, wall mountable, MTBF: 593,755 hours
- Supports jumbo frame packets (max size up to 9.6KB)
- Network technology: 10/100/1000Base-T Gigabit Ethernet
- Certification & standards: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
- Weight: 0.57 lbs.
- Warranty: Lifetime limited
| Attribute Name | Attribute Value |
|---|
