Highlights
View Details- 128KB buffer
- Auto MDI/MDIX adjustment for all ports
- Data transfer rate: 2000 Mbps (full-duplex)

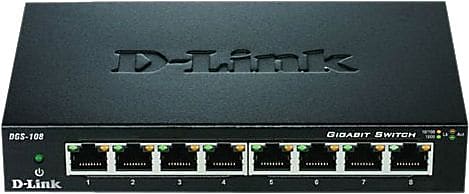

D-Link 8-Port Gigabit Ethernet Unmanaged Switch (DGS108)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
8 x 10/100/1000Base-T
- 128KB buffer
- Auto MDI/MDIX adjustment for all ports
- Data transfer rate: 2000 Mbps (full-duplex)
- Filtering address table: 8K MAC entries/device
- Dimensions: 1.1"(H) x 6.3"(W) x 4"(D)
- Power: External 5 V/1 A Level "V" power adapter, power consumption: 0.55 W power on, 2.8 W max
- Media type supported: Cat 5 twisted-pair, Packet filtering/forwarding rates: 1,488,000 pps/port, MTBF: 2,053,751 hours
- Protocol: CSMA/CD, topology: Star, Transmission method: Store-and-forward
- LED indicators:/port: Link/Activity/Speed,/device: power
- Management: QoS: 802.1p (4 Queues)
- Layer supported: 2
- Supports jumbo frame packets (max size up to 9.6KB)
- Free technical support
- Temperature: 0 - 50 deg C (operating), -10 - 70 deg C (storage), humidity: 10 - 90 % non-condensing (operating), 5 - 90 % non-condensing (storage)
- Heat dissipation: 3.41 BTU/h AC power on, 9.548 BTU/h DC max
- Network technology: 10/100/1000Base-T Gigabit Ethernet
- Certification & standards: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, IEEE 802.3 10Base-T, IEEE 802.3ab 1000Base-T, ANSI/IEEE 802.3 NWay auto-negotiation, IEEE 802.3x Flow Control, IEEE 802.1p QoS, IEEE 802.3az
| Manufacturer # | DGS108 |
| Address Database Size | 8000 |
| Brand Name | D-Link |
| Buffer Memory | 128KB |
| Data Transfer Rate (mbps) | 2000 |
| Depth in Inches | 4 |
| Full-duplex | Yes |
| Height in Inches | 1.1 |
| Layer | 2 |
| Max. Data Transfer Rate (mbps) | 2000 - 2499 |
| Network Management Type | Unmanaged Switch |
| Number of Ethernet Ports | 8 |
| Performance Class | Gigabit Ethernet |
| Quality of Service | Yes |
| Snmp | No |
| Width in Inches | 6.3 |
Details
8 x 10/100/1000Base-T
- 128KB buffer
- Auto MDI/MDIX adjustment for all ports
- Data transfer rate: 2000 Mbps (full-duplex)
- Filtering address table: 8K MAC entries/device
- Dimensions: 1.1"(H) x 6.3"(W) x 4"(D)
- Power: External 5 V/1 A Level "V" power adapter, power consumption: 0.55 W power on, 2.8 W max
- Media type supported: Cat 5 twisted-pair, Packet filtering/forwarding rates: 1,488,000 pps/port, MTBF: 2,053,751 hours
- Protocol: CSMA/CD, topology: Star, Transmission method: Store-and-forward
- LED indicators:/port: Link/Activity/Speed,/device: power
- Management: QoS: 802.1p (4 Queues)
- Layer supported: 2
- Supports jumbo frame packets (max size up to 9.6KB)
- Free technical support
- Temperature: 0 - 50 deg C (operating), -10 - 70 deg C (storage), humidity: 10 - 90 % non-condensing (operating), 5 - 90 % non-condensing (storage)
- Heat dissipation: 3.41 BTU/h AC power on, 9.548 BTU/h DC max
- Network technology: 10/100/1000Base-T Gigabit Ethernet
- Certification & standards: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, IEEE 802.3 10Base-T, IEEE 802.3ab 1000Base-T, ANSI/IEEE 802.3 NWay auto-negotiation, IEEE 802.3x Flow Control, IEEE 802.1p QoS, IEEE 802.3az
| Attribute Name | Attribute Value |
|---|
