Highlights
View Details- Highly versatile selectable backlit panel with three lumen and three CCT options
- Dimensions: 2' x 2'
- Backlit LED arrays with optics ensure a highly efficient and unpixilated transfer of light to the lens

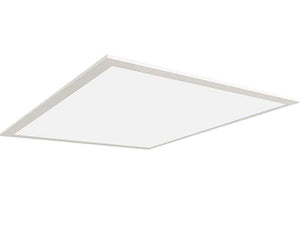

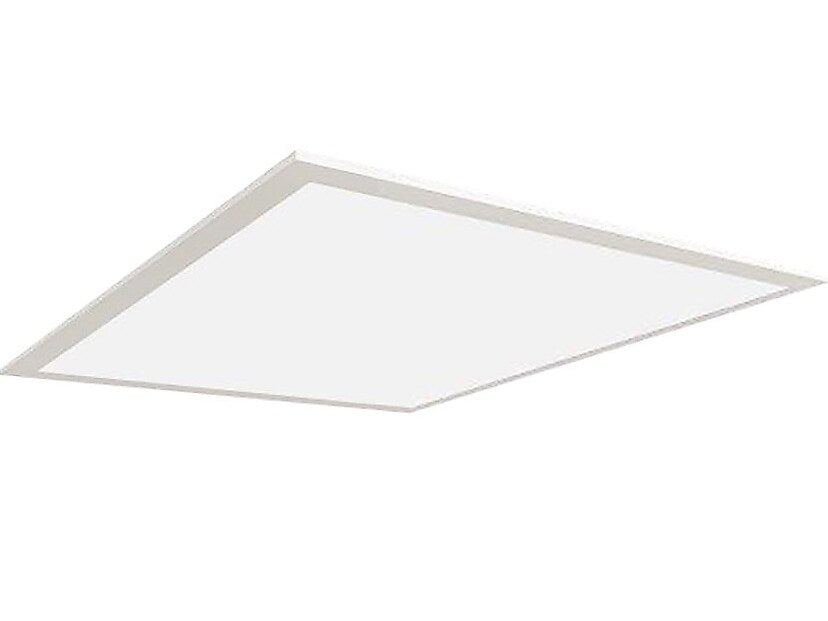

Day-Brite CFI 30-35-40W, FluxPanel Selectable LED Lighting, 2' x 2' (911401837781)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Day-Brite CFI selectable backlit panel (SBP) is a highly versatile luminaire with three lumen and three CCT packages. Available for use in recessed and surface-mount applications, this SBP is a versatile luminaire that is perfect for general lighting applications such as open offices, schools, health care, and retail.
- Highly versatile selectable backlit panel with three lumen and three CCT options
- Dimensions: 2' x 2'
- Backlit LED arrays with optics ensure a highly efficient and unpixilated transfer of light to the lens
- Wattage selection allows for easy field selection between three lumen packages (3000, 3500, 4000 lumens)
- Color temperature can easily be selected in the field between 5000K (cool white), 4000K (neutral white), 3500K (warm white)
- Minimum color rendering index (CRI) value of 80, with balanced spectrum
- Extruded aluminum frame post in a gloss white enamel finish; corners are precision-welded for seamless aesthetics
- Die-formed driver box with standard access plate for ease of wiring provides tool-free access to the driver(s) from above
- Flat opal lens is easy to clean and provides uniform aesthetics on the ceiling plane
- Even distribution of light on the lens provides an exceptionally low-glare gradient, minimizing distractions at the ceiling plane
- Driver features a high power factor (above 0.9), 120-277V at 60/50Hz, and THD less than 15%
- Integral clips accommodate a definitive attachment to a T-bar grid for recessed applications
- Designed for use with standard grid (NEMA Type G) or narrow grid (NEMA Type NFG) ceiling T-bars
- Tight enclosure assembly impedes ingress of dust and insects
- 5-year manufacturer limited warranty
| Manufacturer # | 911402000000 |
| Brand Name | Day-Brite CFI |
| Led Light | Yes |
Details
The Day-Brite CFI selectable backlit panel (SBP) is a highly versatile luminaire with three lumen and three CCT packages. Available for use in recessed and surface-mount applications, this SBP is a versatile luminaire that is perfect for general lighting applications such as open offices, schools, health care, and retail.
- Highly versatile selectable backlit panel with three lumen and three CCT options
- Dimensions: 2' x 2'
- Backlit LED arrays with optics ensure a highly efficient and unpixilated transfer of light to the lens
- Wattage selection allows for easy field selection between three lumen packages (3000, 3500, 4000 lumens)
- Color temperature can easily be selected in the field between 5000K (cool white), 4000K (neutral white), 3500K (warm white)
- Minimum color rendering index (CRI) value of 80, with balanced spectrum
- Extruded aluminum frame post in a gloss white enamel finish; corners are precision-welded for seamless aesthetics
- Die-formed driver box with standard access plate for ease of wiring provides tool-free access to the driver(s) from above
- Flat opal lens is easy to clean and provides uniform aesthetics on the ceiling plane
- Even distribution of light on the lens provides an exceptionally low-glare gradient, minimizing distractions at the ceiling plane
- Driver features a high power factor (above 0.9), 120-277V at 60/50Hz, and THD less than 15%
- Integral clips accommodate a definitive attachment to a T-bar grid for recessed applications
- Designed for use with standard grid (NEMA Type G) or narrow grid (NEMA Type NFG) ceiling T-bars
- Tight enclosure assembly impedes ingress of dust and insects
- 5-year manufacturer limited warranty
| Attribute Name | Attribute Value |
|---|
