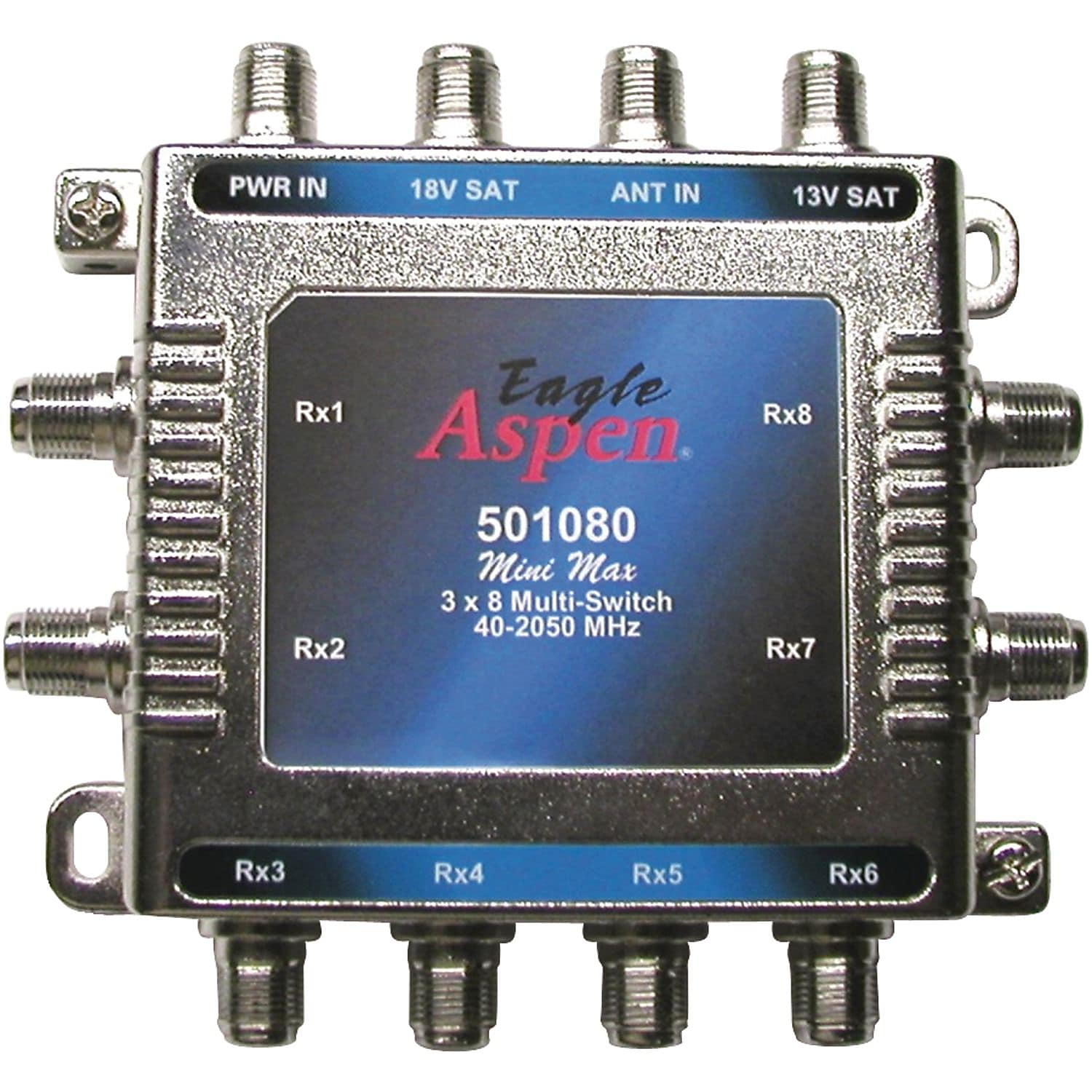

Eagle Aspen 3" x 8-Out Multi-Switch with Optional Power Supply Port (501080)

The Eagle Aspen™ 3-In x 8-Out multi-switch offering any output port receiver connection expands up to 8 rooms. Has a frequency range of 40 - 806 MHz for antenna and 950 - 1700 MHz for satellite. With flatness gain of +/- 2.5 dB and X-pol isolation of 22 dB, switch provides 6 dB satellite noise figure and 15 dB antenna stop band isolation. Has insertion loss of 15 dB for antenna and 0 dB for satellites. Ensures better reception with input and output return loss of 10 dB for antennas and satellites. With RHCP of 10 - 14 VDC and LHCP of 14.7 - 19 VDC, switch enables proper communication.

• Multi switch distribute satellite TV signals to multiple receivers from a single dish and LNB
• Has three antenna input, eight antenna output interface for better data transfer
• Has a frequency response of 40 - 806 MHz (antenna), 950 - 1700 MHz (satellite)
• Has an insertion loss of 15 dB for antenna and out-out isolation of 20 dB for both antenna and satellite
• Ensures better reception with input and output return loss of 10 dB for antennas and satellites
• Has flatness satellite of +/- 2.5 dB, maximum satellite input level of -12 dBm and satellite noise figure of 6 dB
• Has antenna stop band isolation of 15 dB and X-pol isolation of 22 dB
• Has satellite polarity voltage range of 10 - 14 VDC (RHCP), 14.7 - 19 VDC (LHCP) and max DC current consumption of 80 mA, max DC pass to LNB of 350 mA
• Connects off-air or cable TV signals with satellite signal to 1 cable for convenience
• Expands system and improve network coverage to up to 8 rooms
• Eliminates the need of power supply for runs under 100'
• A diplexer is necessary at the receiver to separate the satellite from the VHF/UHF/cable signal
• Weight: 0.75 lbs.
