Highlights
View Details- Input voltage: 89 - 151 VAC
- Output voltage: 120 VAC default (100/120/125 V)
- Receptacles: 5 x NEMA 5-15R

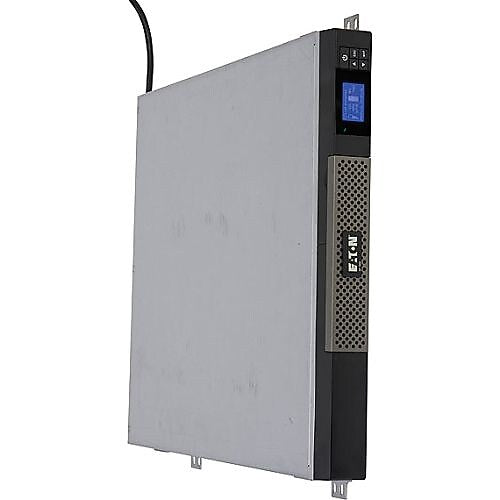

Eaton® 5P Rackmount UPS, 420 W
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Eaton® 5P 420W Rackmount UPS requires input voltage of 110 VAC and outputs voltage of 120 VAC, 132 VAC, 125 VAC. UPS provides efficiency up to 96% and offers rear terminal block connector for remote on/off.
- Input voltage: 89 - 151 VAC
- Output voltage: 120 VAC default (100/120/125 V)
- Receptacles: 5 x NEMA 5-15R
- Load capacity: 550 VA/420 W
- Frequency: 50/60 Hz input, 50/60 Hz +/- 0.1 % output
- Interface/ports: RJ-45, USB
- Batteries: Sealed lead acid
- Backup/run time: 3 minute full load, 8 minute half load
- Form factor: Rack mountable
- Dimensions: 1.7"(H) x 17.2"(W) x 14.3"(D)
- Software included: Intelligent power software suite
- Includes 5P rackmount UPS, user manual CD, intelligent power software suite CD, quick start guide, USB cable, RS-232 serial cable, mounting ears
- Certification and Standards: ENERGY STAR, RoHS, UL 1778, UL497A, cULus, CE, IEC 62040-2 C1-C2, EN 55024, CISPR22 Class B, FCC part 15 Class B
- Weight: 19.7 lbs.
- Warranty: 3 years limited
| Manufacturer # | 5P550R |
| Battery Backup Connectivity | USB/Serial |
| Battery Backup Lcd Display | No |
| Battery Backup Run Time | less than 10 minutes |
| Battery Backup or Ups Device Type | UPS |
| Battery Backup or Ups Form Factor | Rackmount |
| Brand Name | Eaton |
| Compliance Standards | Energy Star, RoHS, UL 1778, UL497A, cULus, CE, IEC 62040-2 C1-C2, EN 55024, CISPR22 Class B, FCC part 15 Class B |
| Depth in Inches | 14.3 |
| Height in Inches | 1.7 |
| Input Voltage | 89 - 151 VAC |
| Mountable | Mountable |
| Output Voltage | 120 VAC default (100/120/125 V) |
| Power Capacity (va) | 550 |
| Usb Connectivity | USB Connection |
| Va Rating | 501-750 |
| Warranty Information | 3 Year |
| Weight (lbs.) | 19.7 |
| Width in Inches | 17.2 |
Details
Eaton® 5P 420W Rackmount UPS requires input voltage of 110 VAC and outputs voltage of 120 VAC, 132 VAC, 125 VAC. UPS provides efficiency up to 96% and offers rear terminal block connector for remote on/off.
- Input voltage: 89 - 151 VAC
- Output voltage: 120 VAC default (100/120/125 V)
- Receptacles: 5 x NEMA 5-15R
- Load capacity: 550 VA/420 W
- Frequency: 50/60 Hz input, 50/60 Hz +/- 0.1 % output
- Interface/ports: RJ-45, USB
- Batteries: Sealed lead acid
- Backup/run time: 3 minute full load, 8 minute half load
- Form factor: Rack mountable
- Dimensions: 1.7"(H) x 17.2"(W) x 14.3"(D)
- Software included: Intelligent power software suite
- Includes 5P rackmount UPS, user manual CD, intelligent power software suite CD, quick start guide, USB cable, RS-232 serial cable, mounting ears
- Certification and Standards: ENERGY STAR, RoHS, UL 1778, UL497A, cULus, CE, IEC 62040-2 C1-C2, EN 55024, CISPR22 Class B, FCC part 15 Class B
- Weight: 19.7 lbs.
- Warranty: 3 years limited
| Attribute Name | Attribute Value |
|---|
