Highlights
View Details- Input voltage: 110 VAC
- Output voltage: 132 /120 /125 VAC
- Power capacity: 1100 W/1440 VA

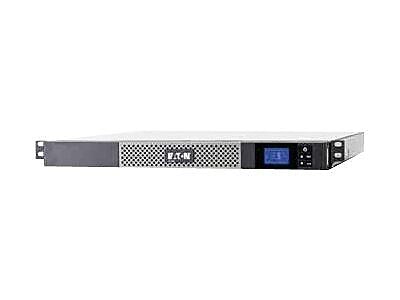

Eaton 5P 1500 RACKMOUNT 1440VA UPS, 5-Outlets (5P1500R)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Eaton 5P Rackmount 1500 VA UPS has Intelligent Power® software suite that allows you to monitor and manage power devices. UPS has line interactive design to protect from power failures, surges, sags, under-voltage and over-voltage conditions.
- Input voltage: 110 VAC
- Output voltage: 132 /120 /125 VAC
- Power capacity: 1100 W/1440 VA
- Plug/connector type: NEMA 5-15P, Receptacles: 5 x NEMA 5-15R
- Interfaces/ports: Network (RJ-45), USB, 1 x expansion slots
- Battery characteristics: Maintenance-free, sealed, Battery chemistry: Lead acid, Backup/run time: 4 min (full load), 14 min (half load)
- Rack height: 1U, Form factor: Rack mountable
- Dimensions: 1.7"(H) x 17.2"(W) x 21.8"(D), Color: Black/silver
- Input cord: 6'
- Software included: Intelligent power software suite
- Features hot swappable internal batteries, LCD display, advance battery management
- Includes 5P rackmount UPS, user manual CD, intelligent power software suite CD, quick start guide, USB cable, RS-232 serial cable, 4 post rail kit
- Certifications and standards: UL 1778, UL497A, cULus, CE, IEC 62040-2 C1-C2, EN 55024, CISPR22 class B, FCC part 15 class B, Green Compliance, RoHS, Energy Star
- Weight: 44.1 lbs.
- Warranty: 3 years limited
| Manufacturer # | 5P1500R |
| Battery Backup Connectivity | Serial |
| Battery Backup Lcd Display | Yes |
| Battery Backup Run Time | less than 10 minutes |
| Battery Backup or Ups Device Type | Line-Interactive UPS |
| Battery Backup or Ups Form Factor | Rackmount |
| Brand Name | Eaton |
| Compliance Standards | UL 1778, UL497A, cULus, CE, IEC 62040-2 C1-C2, EN 55024, CISPR22 class B, FCC part 15 class B, Green Compliance, RoHS, Energy Star |
| Connector, Port or Interface Type(s) | Network (RJ-45), USB, 1 x expansion slots |
| Cord Length (ft.) | 6 |
| Depth in Inches | 21.8 |
| Height in Inches | 1.7 |
| Input Voltage | 120 VAC |
| Mountable | Mountable |
| Outlet Count | 5 |
| Output Power Capacity (w) | 1100 |
| Output Voltage | 120 VAC |
| Power Capacity (va) | 1440 |
| Rack Units | 1U |
| Series or Collection | 5P 1500 RACKMOUNT |
| Types of Battery | Lead Acid Battery |
| Usb Connectivity | USB Connection |
| Va Rating | 1251-1500 |
| Warranty Information | 3 Year |
| Weight (lbs.) | 43.43 |
| Width in Inches | 17.2 |
Details
Eaton 5P Rackmount 1500 VA UPS has Intelligent Power® software suite that allows you to monitor and manage power devices. UPS has line interactive design to protect from power failures, surges, sags, under-voltage and over-voltage conditions.
- Input voltage: 110 VAC
- Output voltage: 132 /120 /125 VAC
- Power capacity: 1100 W/1440 VA
- Plug/connector type: NEMA 5-15P, Receptacles: 5 x NEMA 5-15R
- Interfaces/ports: Network (RJ-45), USB, 1 x expansion slots
- Battery characteristics: Maintenance-free, sealed, Battery chemistry: Lead acid, Backup/run time: 4 min (full load), 14 min (half load)
- Rack height: 1U, Form factor: Rack mountable
- Dimensions: 1.7"(H) x 17.2"(W) x 21.8"(D), Color: Black/silver
- Input cord: 6'
- Software included: Intelligent power software suite
- Features hot swappable internal batteries, LCD display, advance battery management
- Includes 5P rackmount UPS, user manual CD, intelligent power software suite CD, quick start guide, USB cable, RS-232 serial cable, 4 post rail kit
- Certifications and standards: UL 1778, UL497A, cULus, CE, IEC 62040-2 C1-C2, EN 55024, CISPR22 class B, FCC part 15 class B, Green Compliance, RoHS, Energy Star
- Weight: 44.1 lbs.
- Warranty: 3 years limited
