Highlights
View Details- Input voltage: 110 VAC
- Output voltage: Nominal: 100/120/125 VAC/102/132 VAC on utility
- Power capacity: 100 Watt / 1440 VA

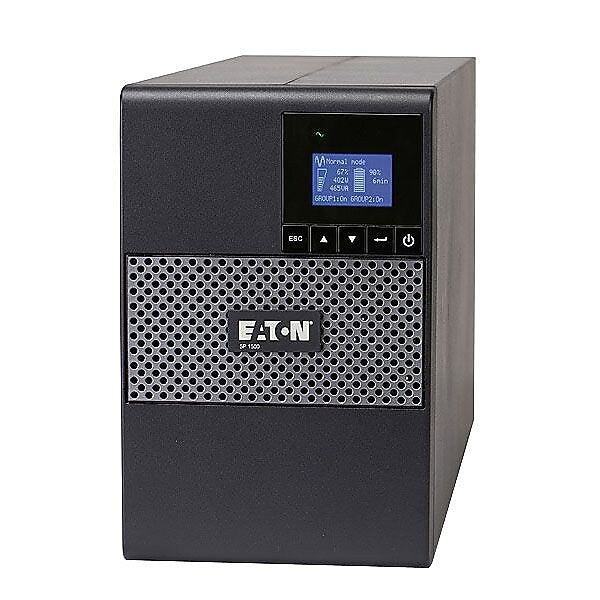

Eaton 5P 1500 Tower 1440VA UPS, 8-Outlets, Silver/Black (5P1500)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Eaton 5P 1500VA Tower UPS featuring 8 x NEMA 5-15R output receptacles has graphical interactive LCD screen interface to control UPS settings. Tower UPS measuring 9.1" x 5.9" x 17.5" has line interactive topology and offers reliable power.
- Input voltage: 110 VAC
- Output voltage: Nominal: 100/120/125 VAC/102/132 VAC on utility
- Power capacity: 100 Watt / 1440 VA
- Frequency: Input: 56.50/70 Hz, output: 60 Hz
- Input voltage range: 70 - 153 VAC, 89 - 151 VAC adjustable, voltage handling: -10%, +6% battery regulation
- Efficiency: Up to 97%
- Cable length: 6'
- Batteries type: Maintenance free, sealed lead acid, hot swappable
- Backup/run time: 0.07 hour 1.10 kW full load, 0.22 hour 550 W half load
- Dimensions: 9.1"(H) x 5.9"(W) x 17 1/2"(D)
- Form factor: Tower
- Interfaces/ports: RJ-45 RS-232/USB, modular slots: 1 x communications slot
- Plug/connector type: NEMA 5-15P, receptacles: 8 x NEMA 5-15R
- Topology: Line interactive
- Environmental conditions: Operating temperature: 0 - 35 deg C, humidity: 0 - 90% non condensing, audible noise: <45 dB at 1 meter
- Delivers reliable enterprise class backup power with an efficiency rating of up to 99%, helps save money and protect the environment through energy efficient operation, extends battery service life by 50% with ABM technology
- Package contents: 5P tower UPS, user manual CD, intelligent power software suite CD, quick start guide, USB cable, RS-232 serial cable
- Certifications and standards: UL1778, UL497A, cULus, CE, IEC 62040-2 C1-C2, EN 55024, CISPR22 class B, FCC part 15 class B, Green compliance certificate/authority: Energy star, RoHS
- Warranty: 3 years on electronics, 3 years on batteries with registration
| Manufacturer # | 5P1500 |
| Battery Backup Connectivity | Serial |
| Battery Backup Lcd Display | Yes |
| Battery Backup Run Time | less than 10 minutes |
| Battery Backup or Ups Device Type | Line-Interactive UPS |
| Battery Backup or Ups Form Factor | Tower |
| Brand Name | Eaton |
| Compliance Standards | RoHS, UL 497A, CISPR 22 Class B, EN55024, IEC 62040-2, FCC Part 15 B, UL 1778 |
| Connector, Port or Interface Type(s) | RJ-45 RS-232/USB, 1 x communications slot |
| Cord Length (ft.) | 6 |
| Depth in Inches | 17.5 |
| Height in Inches | 9.06 |
| Input Voltage | 120 VAC |
| Operating Temperature (degrees) | 32 - 104 deg F |
| Outlet Count | 8 |
| Output Power Capacity (w) | 1100 |
| Output Voltage | 120 VAC |
| Power Capacity (va) | 1440 |
| Series or Collection | 5P 1500 Tower |
| True Color | Silver/Black |
| Types of Battery | Lead Acid Battery |
| Usb Connectivity | USB Connection |
| Va Rating | 1251-1500 |
| Warranty Information | 3 Year |
| Weight (lbs.) | 0.04 |
| Width in Inches | 5.9 |
Details
Eaton 5P 1500VA Tower UPS featuring 8 x NEMA 5-15R output receptacles has graphical interactive LCD screen interface to control UPS settings. Tower UPS measuring 9.1" x 5.9" x 17.5" has line interactive topology and offers reliable power.
- Input voltage: 110 VAC
- Output voltage: Nominal: 100/120/125 VAC/102/132 VAC on utility
- Power capacity: 100 Watt / 1440 VA
- Frequency: Input: 56.50/70 Hz, output: 60 Hz
- Input voltage range: 70 - 153 VAC, 89 - 151 VAC adjustable, voltage handling: -10%, +6% battery regulation
- Efficiency: Up to 97%
- Cable length: 6'
- Batteries type: Maintenance free, sealed lead acid, hot swappable
- Backup/run time: 0.07 hour 1.10 kW full load, 0.22 hour 550 W half load
- Dimensions: 9.1"(H) x 5.9"(W) x 17 1/2"(D)
- Form factor: Tower
- Interfaces/ports: RJ-45 RS-232/USB, modular slots: 1 x communications slot
- Plug/connector type: NEMA 5-15P, receptacles: 8 x NEMA 5-15R
- Topology: Line interactive
- Environmental conditions: Operating temperature: 0 - 35 deg C, humidity: 0 - 90% non condensing, audible noise: <45 dB at 1 meter
- Delivers reliable enterprise class backup power with an efficiency rating of up to 99%, helps save money and protect the environment through energy efficient operation, extends battery service life by 50% with ABM technology
- Package contents: 5P tower UPS, user manual CD, intelligent power software suite CD, quick start guide, USB cable, RS-232 serial cable
- Certifications and standards: UL1778, UL497A, cULus, CE, IEC 62040-2 C1-C2, EN 55024, CISPR22 class B, FCC part 15 class B, Green compliance certificate/authority: Energy star, RoHS
- Warranty: 3 years on electronics, 3 years on batteries with registration
| Attribute Name | Attribute Value |
|---|
