Highlights
View Details- Input voltage: 110 VAC
- Output voltage: 132 VAC
- Power capacity: 1920 Watt/1950 VA

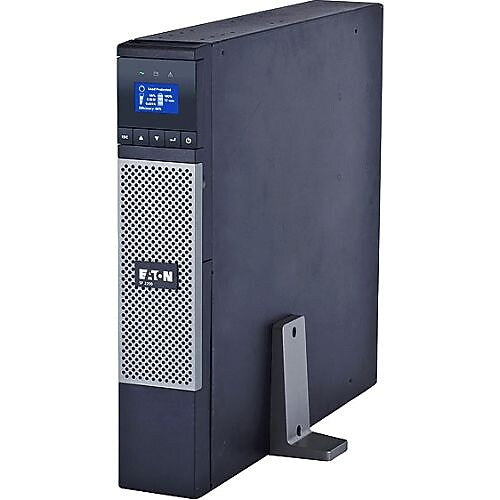

Eaton 5P 2200 VA 120V Tower 2U 1950 UPS, 8 Outlets (5P2200)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Eaton® Tower UPS is maintenance-free and the battery is made of sealed lead acid with input voltage of 110 VAC. UPS has intelligent power software suite with load capacity of 1.95 kW.
- Input voltage: 110 VAC
- Output voltage: 132 VAC
- Power capacity: 1920 Watt/1950 VA
- Plug/connector type: NEMA 5-20P, Receptacles: 8 x NEMA 5-20R
- Cord length: 8', Form factor: Tower
- Battery info: Battery chemistry: Maintenance-free sealed lead acid, Backup/runtime: 3 min full load, 9 min half load
- Dimensions: 3.4"(H) x 17.4"(W) x 20.6"(D)
- Interface: 1 x USB, 1 x serial port, 1 x expansion slot
- Software included: Eaton intelligent power software suite
- Includes 5P 1950 VA tower UPS, user manual CD, tower pedestals, intelligent power software suite CD, quick start guide, RS-232 serial cable, USB cable, Phillips head screw driver
- Certifications and standards: UL1778, UL497A, cUL, UL, FCC Part 15 subpart B class A
- Warranty: 3 years limited
- 3-year manufacturer limited warranty
| Manufacturer # | 5P2200 |
| Battery Backup Connectivity | USB/Serial |
| Battery Backup Lcd Display | Yes |
| Battery Backup Run Time | less than 10 minutes |
| Battery Backup or Ups Device Type | Line-Interactive UPS |
| Battery Backup or Ups Form Factor | Rackmount |
| Brand Name | Eaton |
| Compliance Standards | UL1778, UL497A, cUL, UL, FCC Part 15 subpart B class A |
| Cord Length (ft.) | 8 |
| Depth in Inches | 20.6 |
| Height in Inches | 3.4 |
| Input Voltage | 120 VAC |
| Mountable | Mountable |
| Outlet Count | 8 |
| Output Power Capacity (w) | 1920 |
| Output Voltage | 120 VAC |
| Power Capacity (va) | 1950 |
| Rack Units | 2U |
| Series or Collection | 5P 2200 VA 120V Tower 2U |
| Types of Battery | Lead Acid Battery |
| Usb Connectivity | USB Connection |
| Va Rating | 1751-2000 |
| Warranty Information | 3 Year |
| Weight (lbs.) | 67 |
| Width in Inches | 17.4 |
Details
Eaton® Tower UPS is maintenance-free and the battery is made of sealed lead acid with input voltage of 110 VAC. UPS has intelligent power software suite with load capacity of 1.95 kW.
- Input voltage: 110 VAC
- Output voltage: 132 VAC
- Power capacity: 1920 Watt/1950 VA
- Plug/connector type: NEMA 5-20P, Receptacles: 8 x NEMA 5-20R
- Cord length: 8', Form factor: Tower
- Battery info: Battery chemistry: Maintenance-free sealed lead acid, Backup/runtime: 3 min full load, 9 min half load
- Dimensions: 3.4"(H) x 17.4"(W) x 20.6"(D)
- Interface: 1 x USB, 1 x serial port, 1 x expansion slot
- Software included: Eaton intelligent power software suite
- Includes 5P 1950 VA tower UPS, user manual CD, tower pedestals, intelligent power software suite CD, quick start guide, RS-232 serial cable, USB cable, Phillips head screw driver
- Certifications and standards: UL1778, UL497A, cUL, UL, FCC Part 15 subpart B class A
- Warranty: 3 years limited
- 3-year manufacturer limited warranty
| Attribute Name | Attribute Value |
|---|
