Highlights
View Details- Input voltage: 120 VAC
- Output voltage: 102 - 132 VAC
- Power capacity: 1.92 kW / 1.95 kVA

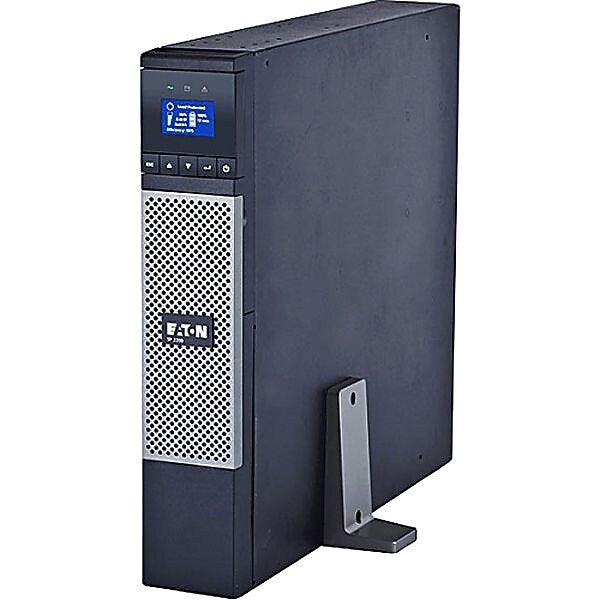

Eaton 5P 2200VA 120V Rack/Tower 2U 1950 UPS, 8-Outlets, Black (5P2200RT)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Eaton 5P 2200VA 120V Rack/Tower 2U 1950 UPS, 8-Outlets, Black (5P2200RT)
- Input voltage: 120 VAC
- Output voltage: 102 - 132 VAC
- Power capacity: 1.92 kW / 1.95 kVA
- Form factor: 2U tower/rack-mountable
- Interface/ports: Serial port, USB, 1 x expansion slot
- Plug/connector type: NEMA 5-20P, receptacles: 8 x NEMA 5-20R
- Battery: Maintenance free battery characteristics, sealed lead acid battery chemistry, Backup/run time: 3 min for full load, 9 min for half load and hot-swappable
- Operating temperature: 32 - 104 deg F, Storage: 5 - 122 deg F, Relative humidity: 20 - 95% non condensing, altitude: Up to 10000' without de-rating
- Audible noise: <45 dBA
- Topology: Line interactive, Heat dissipation: Line: 305 BTU, battery: 2047 BTU
- Frequency: 50/60 Hz (auto-sensing) input, 50/60 Hz + or -0.1% (autosensing) output, Input power factor: 0.98
- Cord length: 8' input
- Black
- Voltage regulation: 102 - 132 VAC on utility, -10%, +6% of nominal on battery, transfer time: 1 - 4 ms typical
- Input voltage range: 89 - 151 VAC (adjustable to 70 - 153 VAC), 120 VAC (adjustable to 100/120/127 VAC) nominal
- Includes 5P 1950 VA tower/rack-mountable UPS, user manual CD, tower pedestals, intelligent power software suite CD, quick start guide, RS-232 serial cable, USB cable, Phillips head screw driver, four post rail kit
- compliants and standards: UL1778, UL497A, cUL, UL, FCC Part 15 subpart B Class A
- Weight: 65 lbs.
- Warranty: 3 years on electronics, 3 years on batteries with registration
| Manufacturer # | PL9153 |
| Battery Backup Connectivity | USB |
| Battery Backup Lcd Display | Yes |
| Battery Backup Run Time | less than 10 minutes |
| Battery Backup Or Ups Device Type | UPS |
| Battery Backup Or Ups Form Factor | Rackmount |
| Brand Name | Eaton |
| Compliance Standards | UL1778, UL497A, cUL, UL, FCC Part 15 subpart B Class A |
| Connector, Port Or Interface Type(s) | 1 x USB |
| Cord Length (ft.) | 8 |
| Depth in Inches | 20.6 |
| Height in Inches | 3.4 |
| Input Voltage | 120 VAC |
| Mountable | Mountable |
| Operating Temperature (degrees) | 32 - 104 deg F |
| Outlet Count | 8 |
| Output Power Capacity (w) | 1950 |
| Output Voltage | 132 VAC |
| Plug Or Connector | NEMA 5-20P |
| Power Capacity (va) | 1950 |
| Rack Units | 2U |
| Series Or Collection | 5P 2200VA 120V Rack/Tower 2U |
| True Color | Black |
| Types of Battery | Lead Acid Battery |
| Usb Connectivity | USB Connection |
| Va Rating | 1751-2000 |
| Warranty Information | 3 Year |
| Weight (lbs.) | 65 |
| Width in Inches | 17.4 |
Details
Eaton 5P 2200VA 120V Rack/Tower 2U 1950 UPS, 8-Outlets, Black (5P2200RT)
- Input voltage: 120 VAC
- Output voltage: 102 - 132 VAC
- Power capacity: 1.92 kW / 1.95 kVA
- Form factor: 2U tower/rack-mountable
- Interface/ports: Serial port, USB, 1 x expansion slot
- Plug/connector type: NEMA 5-20P, receptacles: 8 x NEMA 5-20R
- Battery: Maintenance free battery characteristics, sealed lead acid battery chemistry, Backup/run time: 3 min for full load, 9 min for half load and hot-swappable
- Operating temperature: 32 - 104 deg F, Storage: 5 - 122 deg F, Relative humidity: 20 - 95% non condensing, altitude: Up to 10000' without de-rating
- Audible noise: <45 dBA
- Topology: Line interactive, Heat dissipation: Line: 305 BTU, battery: 2047 BTU
- Frequency: 50/60 Hz (auto-sensing) input, 50/60 Hz + or -0.1% (autosensing) output, Input power factor: 0.98
- Cord length: 8' input
- Black
- Voltage regulation: 102 - 132 VAC on utility, -10%, +6% of nominal on battery, transfer time: 1 - 4 ms typical
- Input voltage range: 89 - 151 VAC (adjustable to 70 - 153 VAC), 120 VAC (adjustable to 100/120/127 VAC) nominal
- Includes 5P 1950 VA tower/rack-mountable UPS, user manual CD, tower pedestals, intelligent power software suite CD, quick start guide, RS-232 serial cable, USB cable, Phillips head screw driver, four post rail kit
- compliants and standards: UL1778, UL497A, cUL, UL, FCC Part 15 subpart B Class A
- Weight: 65 lbs.
- Warranty: 3 years on electronics, 3 years on batteries with registration
| Attribute Name | Attribute Value |
|---|
