View Details- 600 W UPS protects your equipment in case of power outages or power fluctuations
- Sealed lead acid battery offers a run time of 12 mins at half load and 4 mins at full load on a recharge time of Functional
- Dimensions: 1.7"H x 17.2"W x 20"D

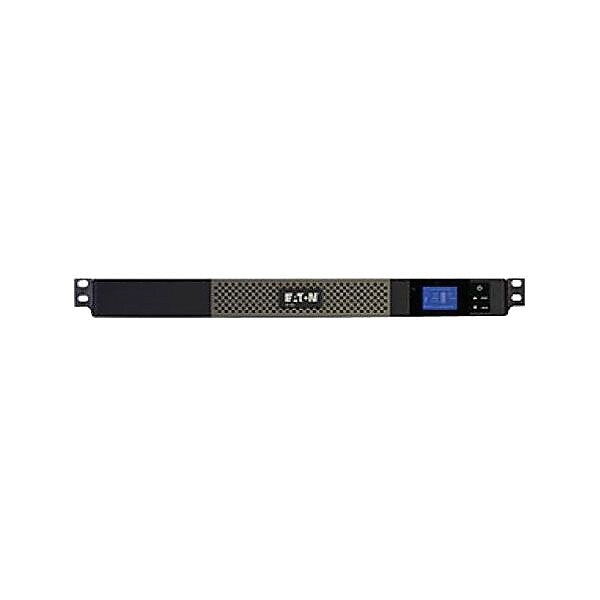

Eaton 5P 750 RACKMOUNT 750VA UPS, 5-Outlets (5P750R)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Keep your systems safe by adding the Eaton 5P750R UPS to your existing network setup. This line-interactive UPS works as a backup power option with its output power capacity of 600 W, and protects your equipment from unexpected power outages or brownouts. Its powerful battery provides a run time of 12 mins at half load and 4 mins at full load and requires less recharge time. Equipped with an intuitive display screen, it allows improved control and easy navigation for added convenience.
- 600 W UPS protects your equipment in case of power outages or power fluctuations
- Sealed lead acid battery offers a run time of 12 mins at half load and 4 mins at full load on a recharge time of Functional
- Dimensions: 1.7"H x 17.2"W x 20"D
- Output voltage of 120 VAC to ensure adequate power supply
- Load protected, on battery and fault aid in seamless navigation
- 1U Rack or wall mountable construction makes it convenient to install and use
- Equipped with 5 outlets, a RS-232 (RJ45) ports and USB port as standard (HID) for seamless connectivity
- 6' cord lets you set up your system at a distance
- CE, CISPR22 class B, cULus, EN 55024, Energy star, FCC part 15 class B, IEC 62040-2 C1-C2, RoHS, UL 1778, UL497A compliant
- 3-year limited warranty
| Manufacturer # | 5P750R |
| Battery Backup Connectivity | USB/Serial |
| Battery Backup Lcd Display | Yes |
| Battery Backup Run Time | less than 10 minutes |
| Battery Backup or Ups Device Type | Line-Interactive UPS |
| Battery Backup or Ups Form Factor | Rackmount |
| Battery Capacity (mah) | 9000 |
| Brand Name | Eaton |
| Compliance Standards | CE, CISPR22 class B, cULus, EN 55024, Energy star, FCC part 15 class B, IEC 62040-2 C1-C2, RoHS, UL 1778, UL497A compliant |
| Connector, Port or Interface Type(s) | RS-232 ports and USB port as standard (HID) |
| Cord Length (ft.) | 6 |
| Depth in Inches | 20 |
| Height in Inches | 1.7 |
| Input Voltage | 120 |
| Mountable | Mountable |
| Operating Temperature (degrees) | 32 - 104 deg F |
| Outlet Count | 5 |
| Output Power Capacity (w) | 600 |
| Output Voltage | 120 VAC |
| Plug or Connector | NEMA 5-15R |
| Power Capacity (va) | 750 |
| Rack Units | 1U |
| Series or Collection | 5P 750 RACKMOUNT |
| Types of Battery | Lead Acid Battery |
| Usb Connectivity | USB Connection |
| Va Rating | 501-750 |
| Warranty Information | 3 Year |
| Weight (lbs.) | 31.1 |
| Width in Inches | 17.2 |
Details
Keep your systems safe by adding the Eaton 5P750R UPS to your existing network setup. This line-interactive UPS works as a backup power option with its output power capacity of 600 W, and protects your equipment from unexpected power outages or brownouts. Its powerful battery provides a run time of 12 mins at half load and 4 mins at full load and requires less recharge time. Equipped with an intuitive display screen, it allows improved control and easy navigation for added convenience.
- 600 W UPS protects your equipment in case of power outages or power fluctuations
- Sealed lead acid battery offers a run time of 12 mins at half load and 4 mins at full load on a recharge time of Functional
- Dimensions: 1.7"H x 17.2"W x 20"D
- Output voltage of 120 VAC to ensure adequate power supply
- Load protected, on battery and fault aid in seamless navigation
- 1U Rack or wall mountable construction makes it convenient to install and use
- Equipped with 5 outlets, a RS-232 (RJ45) ports and USB port as standard (HID) for seamless connectivity
- 6' cord lets you set up your system at a distance
- CE, CISPR22 class B, cULus, EN 55024, Energy star, FCC part 15 class B, IEC 62040-2 C1-C2, RoHS, UL 1778, UL497A compliant
- 3-year limited warranty
