Highlights
View Details- Line-interactive UPS charges the battery and converts its energy to AC for the output as required
- Dimensions: 3.4"H x 17.4"W x 25.5"D
- Comes in black color
Eaton 5P Line-Interactive UPS, 3000 VA/2700 W (5P3000RT)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

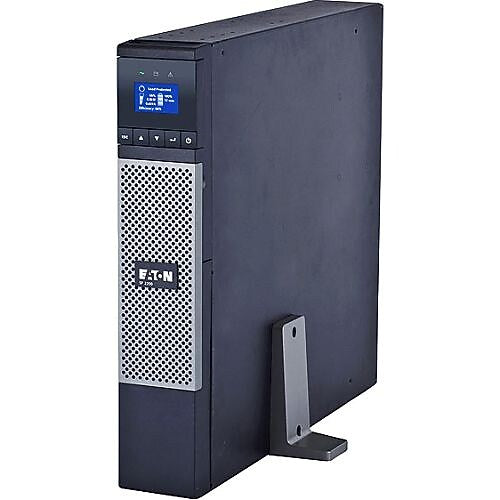

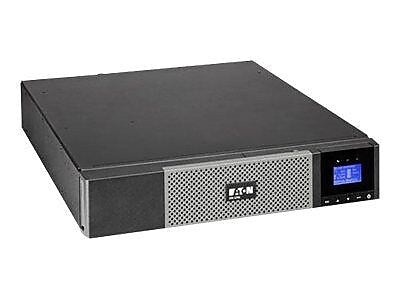

The Eaton 5P3000RT line-interactive UPS is a 2U tower or rack mountable power supply with the load capacity of 2700 W power and 3000 VA current. It has LCD display that gives clear information on the UPS's status and measurements. The line interactive construction protects the connected device from power failures, surges, sags, under-voltage, over-current and over-voltage conditions.
- Line-interactive UPS charges the battery and converts its energy to AC for the output as required
- Dimensions: 3.4"H x 17.4"W x 25.5"D
- Comes in black color
- Frequency: 50/60 Hz (auto-sensing), frequency range: 47 - 70 Hz (50 Hz system), 56.5 - 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
- Input: Cord: 10 ft, input voltage range: 89 - 151 VAC, nominal voltage: 120 VAC, input power factor: 0.9
- Output: Output receptacles: 6 x NEMA 5-20R, 1 x NEMA L5-30R, on utility voltage regulation: 102 - 132 VAC, on battery voltage regulation: -10%
- Efficiency: Up to 99%
- Battery: Battery management: ABM technology and temperature-compensated charging method, battery type: 12 V/9 Ah, sealed, lead-acid, maintenance free
- Ratings: 3000 VA/2700 W
- User interface: LCD graphical display, LEDs: Load protected, battery & fault, communication ports: 1 USB HID compliant port + 1 RS232 serial port
- Heat dissipation (BTU): Line: 305, battery: 2047, audible noise: <50 dBA
- Backup/run time: 4 min (full load), 10 min (half load)
- Operating temperature: 0 - 40 deg C
- Includes 5P3000RT, 4 post rail kit, user manual CD, tower pedestals, Intelligent power software suite CD, QSG, RS-232 serial cable, USB cable
- Meets UL1778, UL497A, cUL standards
- Weight: 87 lbs.
- Comes with 3 year warranty
| Manufacturer # | 5P3000RT |
| Battery Backup Connectivity | USB/Serial |
| Battery Backup Lcd Display | Yes |
| Battery Backup Run Time | less than 10 minutes |
| Battery Backup or Ups Device Type | Line-Interactive UPS |
| Battery Backup or Ups Form Factor | Rackmount |
| Battery Capacity (mah) | 9000 |
| Brand Name | Eaton |
| Compliance Standards | UL1778, UL497A, cUL |
| Cord Length (ft.) | 10 |
| Depth in Inches | 25.5 |
| Height in Inches | 3.4 |
| Input Voltage | 89 - 151 VAC |
| Mountable | Mountable |
| Operating Temperature (degrees) | 32 - 104 deg F |
| Output Voltage | 102 - 132 VAC |
| Power Capacity (va) | 3000 |
| Rack Units | 2U |
| Usb Connectivity | USB Connection |
| Va Rating | 2501-3000 |
| Warranty Information | 3 Year |
| Weight (lbs.) | 87 |
| Width in Inches | 17.4 |
Details
The Eaton 5P3000RT line-interactive UPS is a 2U tower or rack mountable power supply with the load capacity of 2700 W power and 3000 VA current. It has LCD display that gives clear information on the UPS's status and measurements. The line interactive construction protects the connected device from power failures, surges, sags, under-voltage, over-current and over-voltage conditions.
- Line-interactive UPS charges the battery and converts its energy to AC for the output as required
- Dimensions: 3.4"H x 17.4"W x 25.5"D
- Comes in black color
- Frequency: 50/60 Hz (auto-sensing), frequency range: 47 - 70 Hz (50 Hz system), 56.5 - 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
- Input: Cord: 10 ft, input voltage range: 89 - 151 VAC, nominal voltage: 120 VAC, input power factor: 0.9
- Output: Output receptacles: 6 x NEMA 5-20R, 1 x NEMA L5-30R, on utility voltage regulation: 102 - 132 VAC, on battery voltage regulation: -10%
- Efficiency: Up to 99%
- Battery: Battery management: ABM technology and temperature-compensated charging method, battery type: 12 V/9 Ah, sealed, lead-acid, maintenance free
- Ratings: 3000 VA/2700 W
- User interface: LCD graphical display, LEDs: Load protected, battery & fault, communication ports: 1 USB HID compliant port + 1 RS232 serial port
- Heat dissipation (BTU): Line: 305, battery: 2047, audible noise: <50 dBA
- Backup/run time: 4 min (full load), 10 min (half load)
- Operating temperature: 0 - 40 deg C
- Includes 5P3000RT, 4 post rail kit, user manual CD, tower pedestals, Intelligent power software suite CD, QSG, RS-232 serial cable, USB cable
- Meets UL1778, UL497A, cUL standards
- Weight: 87 lbs.
- Comes with 3 year warranty
