Highlights
View Details- This 8-outlet UPS is perfect for servers, switches, storage and other distributed IT loads that keep your business running
- UPS provides line-interactive up to 1440W output; power capacity: 1440VA
- Contains 1 x RS-232 serial port, USB port, remote power off (RPO) and remote on/off (ROO) port, output relay port/EBM detection port, EBM connector, 8 x managed outlets (5-15R)
Eaton 5PX G2 1440VA 8-Outlet UPS, Silver/Black (5PX1500RTNG2)
Log in to see pricing


Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

Eaton 5PX G2 UPS it's secure, connected power protection with extended runtime designed for distributed IT. Perfect for servers, switches, storage and other distributed IT loads that keep your business running. Flexible UPS can be rackmounted in a traditional 2-post or 4-post rack or used in a tower form. Quieter operation than legacy models with less fans required in each UPS. Reduce risk of intrusion with the Gigabit Network Card (NETWORK-M2), which is the UPS connectivity device to meet both UL and IEC cybersecurity standards.
- This 8-outlet UPS is perfect for servers, switches, storage and other distributed IT loads that keep your business running
- UPS provides line-interactive up to 1440W output; power capacity: 1440VA
- Contains 1 x RS-232 serial port, USB port, remote power off (RPO) and remote on/off (ROO) port, output relay port/EBM detection port, EBM connector, 8 x managed outlets (5-15R)
- Features 10' line cord with 5-15P
- ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
- Nominal output voltage: 100/110/120/125V, input frequency: 50/60Hz

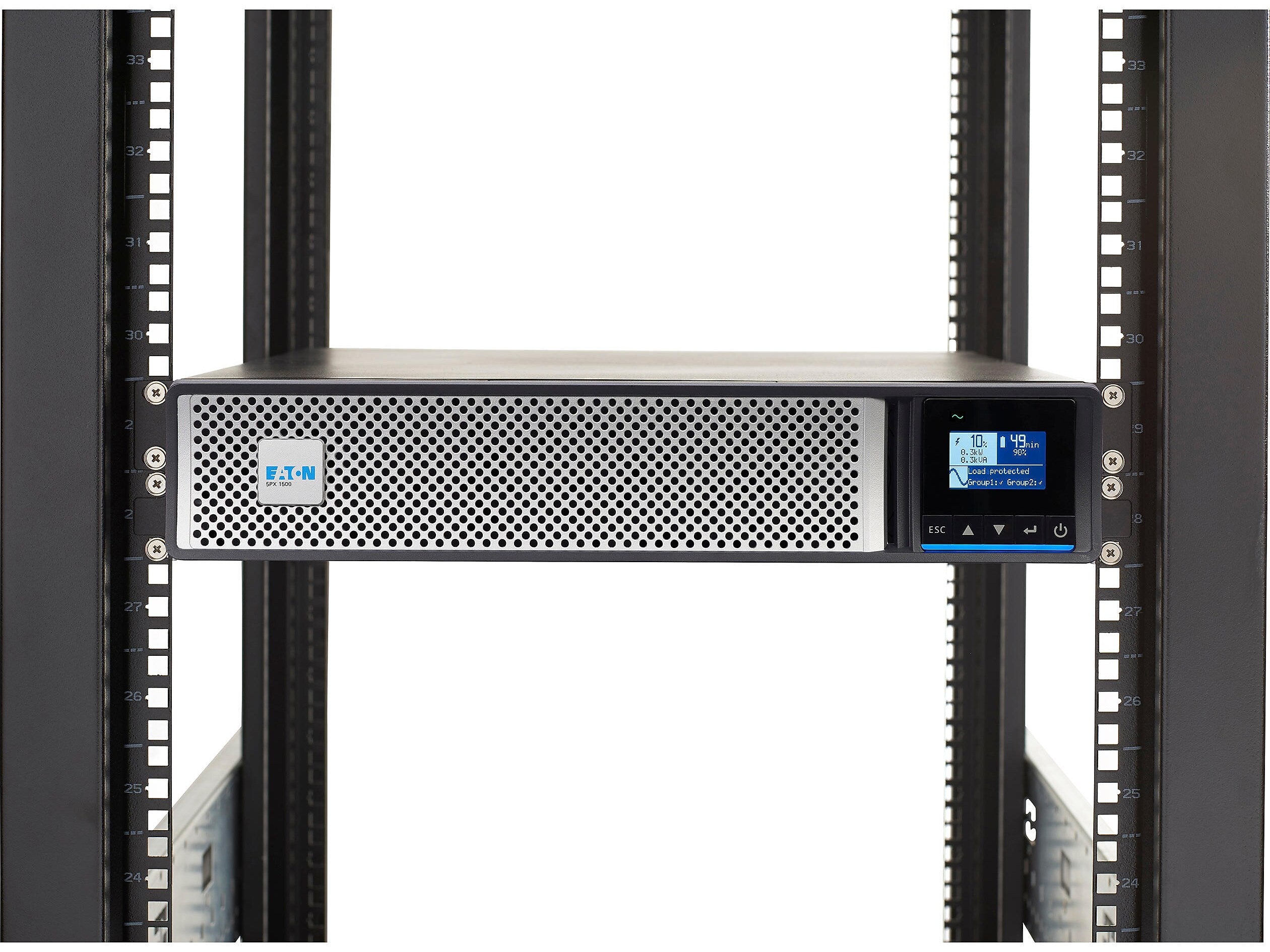

- Flexible UPS can be rackmounted in a traditional 2-post or 4-post rack or used in a tower form factor
- UPS features 4 x 12V, 9Ah sealed, maintenance-free, valve-regulated, lead-acid batteries
- Reduce risk of intrusion with the Gigabit Network Card (NETWORK-M2), which is the UPS connectivity device to meet both UL and IEC cybersecurity standards
- LED status bar provides quick and clear visual diagnostics in all environments (normal operation with blue light; blinking blue light - your attention is needed; red light - a critical issue needs your immediate attention and action)
- Higher contrast interface for easier visibility, plus detailed alarms and notifications to help diagnose the issue the first time
- Enhanced surge protection to keep your equipment safe in your branch offices and IT closets
- IPM (Intelligent Power Manager) is an easy-to-use disaster avoidance platform with sophisticated capabilities that include triggering alerts and automating resolutions to keep applications running
- With VPM (Visual Power Manager) you can remotely monitor the power of hundreds of PDU and UPS devices through a user-friendly, visual interface that simplifies data for quick action
- Remote monitoring and management of your deployment is made easy with Eaton VPM or IPM software, which includes graceful shutdown of servers and virtualized environments during extended power outages
- Meets or exceeds the CULus, RoHS, NOM, ENERGY STAR certified, IEC 62040-1 standards
- Package contents: UPS, tower pedestal feet, four-post rail kit, quick start guide, safety guide, USB cable, RS-232 cable, Eaton Gigabit Network card (NETWORK-M2)
- 3-year manufacturer limited warranty; 3-year warranty on batteries with registration
Manufacturer # | 5PX1500RTNG2 |
Battery Backup Connectivity | USB |
Battery Backup Lcd Display | Yes |
Battery Backup Run Time | 11-20 min |
Battery Backup or Ups Device Type | UPS |
Battery Backup or Ups Form Factor | Rackmount |
Brand Name | Eaton |
Connector, Port or Interface Type(s) | RS-232 serial port/USB port/remote power off (RPO) and remote on/off (ROO) port/output relay port/EBM detection port/EBM connector/8 outlets |
Cord Length (ft.) | 10 |
Depth in Inches | 17.6 |
Height in Inches | 3.4 |
Input Voltage | 100-125V |
Mountable | Mountable |
Outlet Count | 8 |
Output Power Capacity (w) | 1440 |
Output Voltage | 120V |
Power Capacity (va) | 1440 |
Rack Units | 2U |
Series or Collection | 5PX G2 |
True Color | Silver/Black |
Types of Battery | Lead Acid Battery |
Usb Connectivity | USB Connection |
Va Rating | 1251-1500 |
Warranty Information | 3 Year |
Weight (lbs.) | 50.7 |
Width in Inches | 17.2 |
Details
Eaton 5PX G2 UPS it's secure, connected power protection with extended runtime designed for distributed IT. Perfect for servers, switches, storage and other distributed IT loads that keep your business running. Flexible UPS can be rackmounted in a traditional 2-post or 4-post rack or used in a tower form. Quieter operation than legacy models with less fans required in each UPS. Reduce risk of intrusion with the Gigabit Network Card (NETWORK-M2), which is the UPS connectivity device to meet both UL and IEC cybersecurity standards.
- This 8-outlet UPS is perfect for servers, switches, storage and other distributed IT loads that keep your business running
- UPS provides line-interactive up to 1440W output; power capacity: 1440VA
- Contains 1 x RS-232 serial port, USB port, remote power off (RPO) and remote on/off (ROO) port, output relay port/EBM detection port, EBM connector, 8 x managed outlets (5-15R)
- Features 10' line cord with 5-15P
- ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
- Nominal output voltage: 100/110/120/125V, input frequency: 50/60Hz
- Flexible UPS can be rackmounted in a traditional 2-post or 4-post rack or used in a tower form factor
- UPS features 4 x 12V, 9Ah sealed, maintenance-free, valve-regulated, lead-acid batteries
- Reduce risk of intrusion with the Gigabit Network Card (NETWORK-M2), which is the UPS connectivity device to meet both UL and IEC cybersecurity standards
- LED status bar provides quick and clear visual diagnostics in all environments (normal operation with blue light; blinking blue light - your attention is needed; red light - a critical issue needs your immediate attention and action)
- Higher contrast interface for easier visibility, plus detailed alarms and notifications to help diagnose the issue the first time
- Enhanced surge protection to keep your equipment safe in your branch offices and IT closets
- IPM (Intelligent Power Manager) is an easy-to-use disaster avoidance platform with sophisticated capabilities that include triggering alerts and automating resolutions to keep applications running
- With VPM (Visual Power Manager) you can remotely monitor the power of hundreds of PDU and UPS devices through a user-friendly, visual interface that simplifies data for quick action
- Remote monitoring and management of your deployment is made easy with Eaton VPM or IPM software, which includes graceful shutdown of servers and virtualized environments during extended power outages
- Meets or exceeds the CULus, RoHS, NOM, ENERGY STAR certified, IEC 62040-1 standards
- Package contents: UPS, tower pedestal feet, four-post rail kit, quick start guide, safety guide, USB cable, RS-232 cable, Eaton Gigabit Network card (NETWORK-M2)
- 3-year manufacturer limited warranty; 3-year warranty on batteries with registration
Attribute Name | Attribute Value |
---|
