Highlights
View Details- This 7-outlet UPS is perfect for servers, switches, storage and other distributed IT loads that keep your business running
- UPS provides line-interactive up to 3000W output; power capacity: 3000VA
- Contains 1 x RS-232 serial port, USB port, remote power off (RPO) and remote on/off (ROO) port, output relay port/EBM detection port, EBM connector, 1 x L5-30R managed outlet, and 6 x 5-20R managed outlets
Eaton 5PX G2 3000VA 7-Outlet UPS, Silver/Black (5PX3000RTG2)
Log in to see pricing


Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

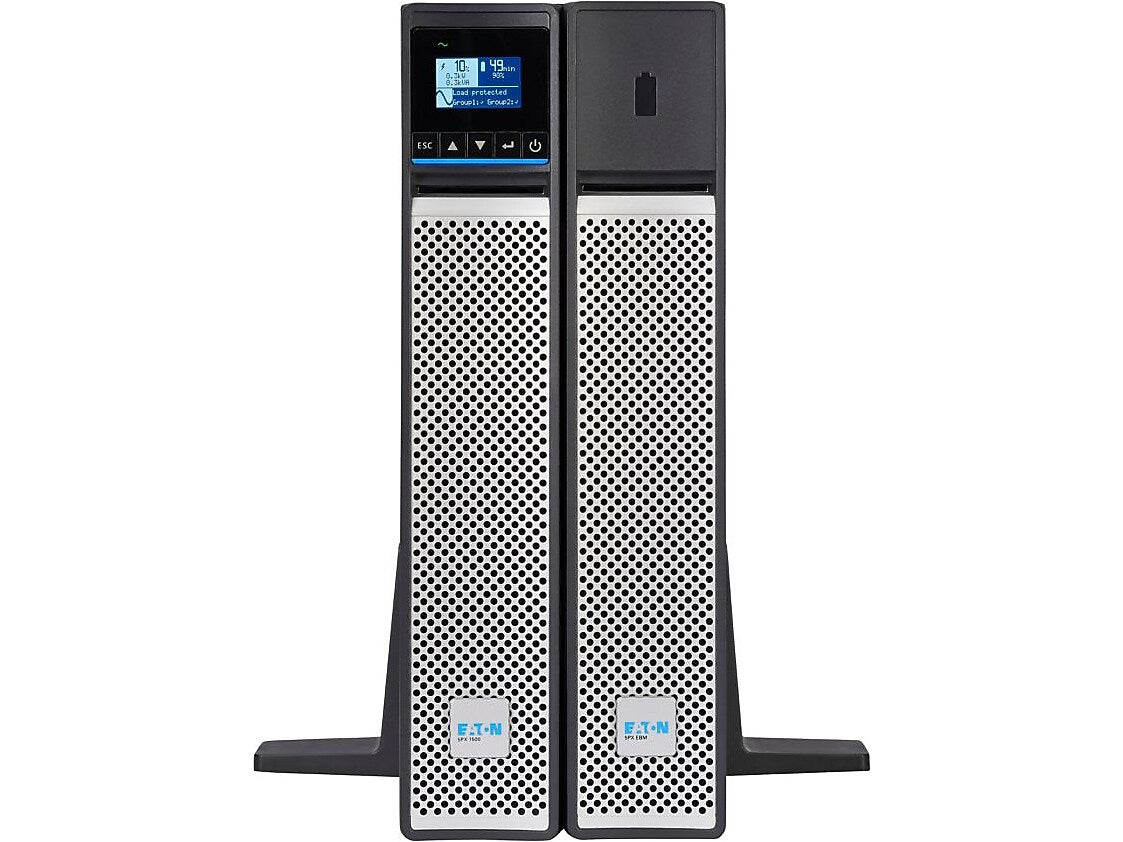

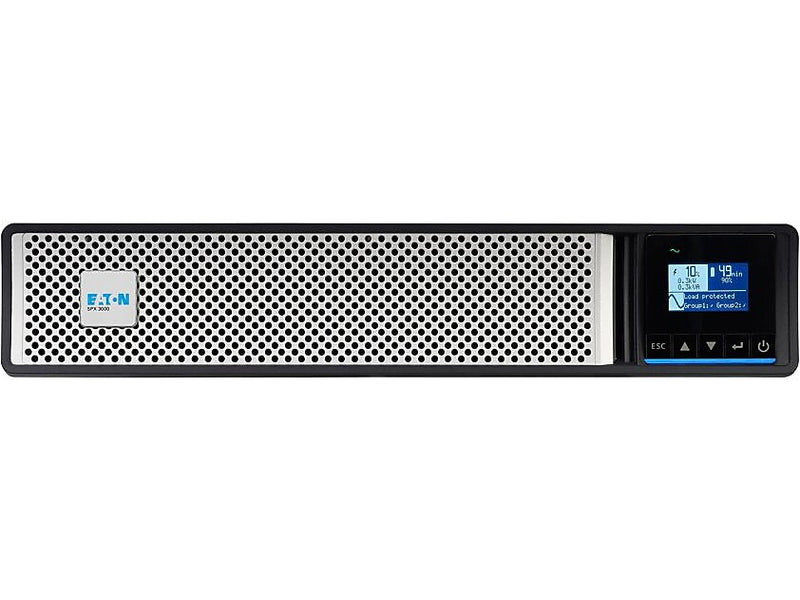

Eaton 5PX G2 rackmount and tower UPS provides the maximum power possible at each power rating. With 3000VA the 5PX G2 UPS offers a reduced depth that conserves space for high density wall mount rack installations.
- This 7-outlet UPS is perfect for servers, switches, storage and other distributed IT loads that keep your business running
- UPS provides line-interactive up to 3000W output; power capacity: 3000VA

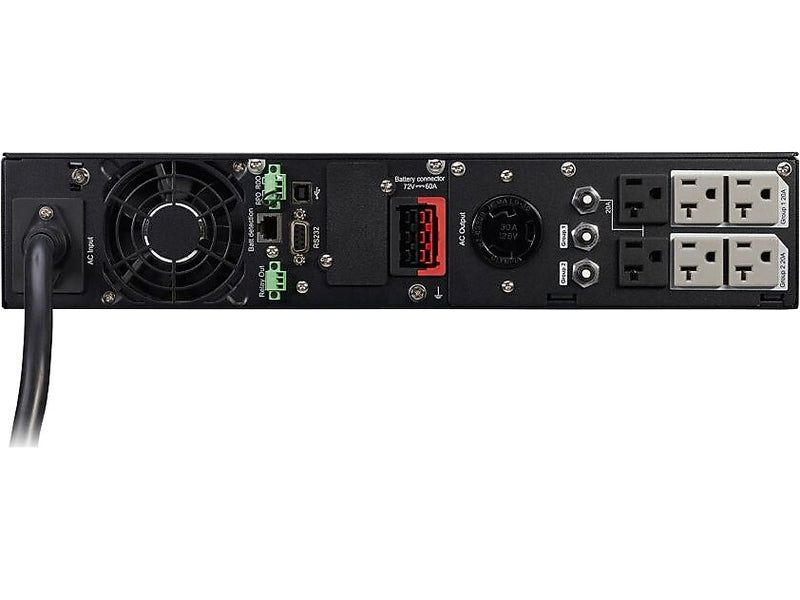

- Contains 1 x RS-232 serial port, USB port, remote power off (RPO) and remote on/off (ROO) port, output relay port/EBM detection port, EBM connector, 1 x L5-30R managed outlet, and 6 x 5-20R managed outlets
- Features 10' line cord with L5-30P
- Nominal output voltage: 120V, input frequency: 50/60Hz

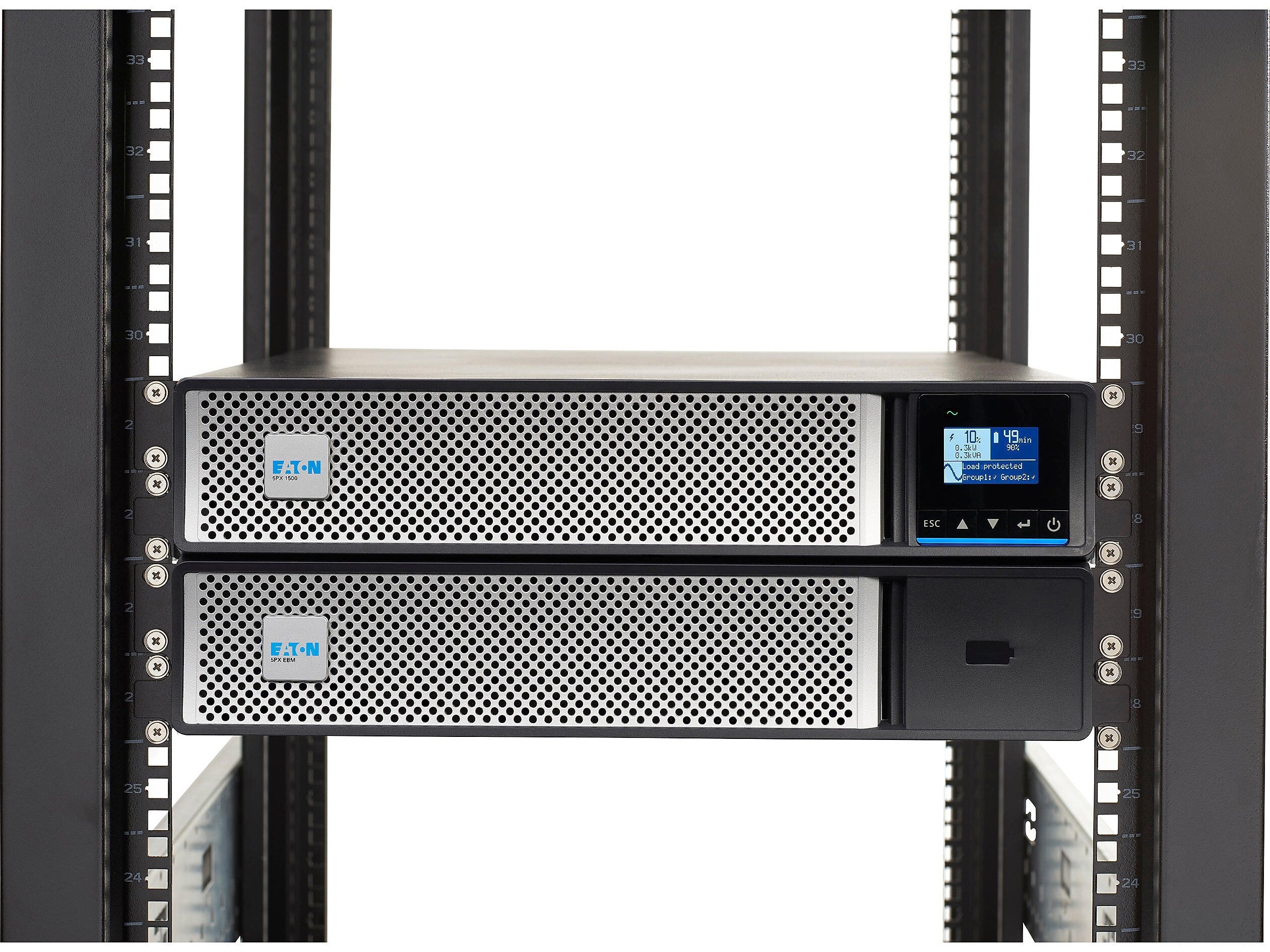

- Flexible UPS can be rack mounted in a traditional 2-post or 4-post rack or used in a tower form factor
- UPS features sealed lead-acid batteries
- Perfect for servers, switches, storage and other distributed IT loads that keep your business running
- Quieter operation than legacy models with less fans required in each UPS
- Mass UPS firmware upgrades without dropping the load
- Easy startup configuration wizard
- Reduce risk of intrusion with the Gigabit Network Card (NETWORK-M2), which is the first UPS connectivity device to meet both UL and IEC cybersecurity standards
- Remote monitoring and management of your deployment is made easy with Eaton VPM or IPM software, which includes graceful shutdown of servers and virtualized environments during extended power outages
- LED status bar provides quick and clear visual diagnostics in all environments
- 3-year manufacturer limited warranty
Manufacturer # | 5PX3000RTG2 |
Battery Backup Connectivity | USB/Serial |
Battery Backup Lcd Display | Yes |
Battery Backup or Ups Device Type | UPS |
Battery Backup or Ups Form Factor | Rackmount |
Brand Name | Eaton |
Compliance Standards | CULus, RoHS, NOM, ENERGY STAR certified, BSMI, IEC 62040-1 |
Connector, Port or Interface Type(s) | RS-232, USB, RPO/ROO, output relay, EBM detection, EBM connector, L5-30R managed outlet, 6 x 5-20R managed outlets |
Cord Length (ft.) | 10 |
Depth in Inches | 23.7 |
Height in Inches | 3.4 |
Input Voltage | 120V |
Mountable | Mountable |
Outlet Count | 7 |
Output Power Capacity (w) | 3000 |
Output Voltage | 120V |
Plug or Connector | NEMA L5-30P |
Power Capacity (va) | 3000 |
Series or Collection | 5PX G2 |
True Color | Silver/Black |
Types of Battery | Lead Acid Battery |
Usb Connectivity | USB Connection |
Va Rating | 2501-3000 |
Warranty Information | 3 Year |
Weight (lbs.) | 74.5 |
Width in Inches | 17.2 |
Details
Eaton 5PX G2 rackmount and tower UPS provides the maximum power possible at each power rating. With 3000VA the 5PX G2 UPS offers a reduced depth that conserves space for high density wall mount rack installations.
- This 7-outlet UPS is perfect for servers, switches, storage and other distributed IT loads that keep your business running
- UPS provides line-interactive up to 3000W output; power capacity: 3000VA
- Contains 1 x RS-232 serial port, USB port, remote power off (RPO) and remote on/off (ROO) port, output relay port/EBM detection port, EBM connector, 1 x L5-30R managed outlet, and 6 x 5-20R managed outlets
- Features 10' line cord with L5-30P
- Nominal output voltage: 120V, input frequency: 50/60Hz
- Flexible UPS can be rack mounted in a traditional 2-post or 4-post rack or used in a tower form factor
- UPS features sealed lead-acid batteries
- Perfect for servers, switches, storage and other distributed IT loads that keep your business running
- Quieter operation than legacy models with less fans required in each UPS
- Mass UPS firmware upgrades without dropping the load
- Easy startup configuration wizard
- Reduce risk of intrusion with the Gigabit Network Card (NETWORK-M2), which is the first UPS connectivity device to meet both UL and IEC cybersecurity standards
- Remote monitoring and management of your deployment is made easy with Eaton VPM or IPM software, which includes graceful shutdown of servers and virtualized environments during extended power outages
- LED status bar provides quick and clear visual diagnostics in all environments
- 3-year manufacturer limited warranty
