Highlights
View Details- Dual conversion online UPS for power protection
- Load capacity: 3000 VA, 3000 W
- Dimensions: 3.4"H x 17.3"W x 23.8"D

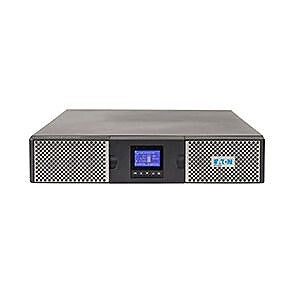

Eaton 9PX 3000VA UPS, 3-Outlets, Black And Silver (9PX3000GLRT)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Eaton® 9PX3000GLRT 3000 VA dual conversion online UPS has four status indicating LEDs and graphical display. It measures 3.4" x 17.3" x 23.8". The sealed lead acid UPS has one NEMA L6-20P plug, one NEMA L6-30R plug, two NEMA L6-20R plugs, RS-232 port and USB port for connectivity. It offers IEEE ANSI C62.41 Cat B2 surge protection. This maintenance-free UPS comes with safety manual, user manual, output cables, input cables, cable lockers, 4-post rail kit, tower pedestals, RS-232 serial cable, USB cable and intelligent power software suite CD.
- Dual conversion online UPS for power protection
- Load capacity: 3000 VA, 3000 W
- Dimensions: 3.4"H x 17.3"W x 23.8"D
- Output voltage: 200, 208, 220, 230, 240 VAC
- LEDs: Four status-indicating LEDs, Graphical display
- Form factor: 2U tower/rack mountable
- Battery chemistry: Sealed Lead Acid
- Interface: RS-232 (RJ45), USB, Receptacles: One NEMA L6-30R, two NEMA L6-20R
- Surge protection: IEEE ANSI C62.41 Cat B2
- Input connection: One NEMA L6-20P, Input cord: Detachable L6-20P to C19 input cord, 6'
- Color: Black/silver, Battery characteristics: Maintenance-free, Switching time: 0 ns
- Input voltage: 200, 208, 220, 230, 240 VAC, Input voltage range: Full load: 176 - 276 V, <40% load: 100 - 276 V, Frequency: 50/60 Hz
- Efficiency: 93% with resistive load, Temperature: 0 to 40 deg C (operating), 0 to 35 deg C (storage), Relative humidity: 0 - 96% (non-condensing)
- Includes UPS, safety manual, user manual, output cables, input cables, cable lockers, 4-post rail kit, tower pedestals, RS-232 serial cable
- Meets RoHS, CE/cULus/NOM, IEC 62040-2 Class B Cat C2/CISPR22 Class B/FCC part 15 Class B/VCCI Class B certifications and standards
- Weight: 60.4 lbs.
- Comes with 2 years warranty
| Manufacturer # | 9PX3000GLRT |
| Battery Backup Connectivity | USB |
| Battery Backup Lcd Display | Yes |
| Battery Backup or Ups Device Type | On-Line UPS |
| Battery Backup or Ups Form Factor | Rackmount |
| Brand Name | Eaton |
| Compliance Standards | cULus, NOM, ANSI C62.41, IEC 62040-2 class B, VCCI Class B, FCC Part 15 Class B, CISPR 22 Class B, RoHS |
| Cord Length (ft.) | 6 |
| Depth in Inches | 23.8 |
| Height in Inches | 3.4 |
| Input Voltage | 200/208 |
| Mountable | Mountable |
| Operating Temperature (degrees) | 32 - 104 deg F |
| Outlet Count | 3 |
| Output Power Capacity (w) | 3000 |
| Power Capacity (va) | 3000 |
| Rack Units | 2U |
| Series or Collection | 9PX |
| True Color | Black And Silver |
| Types of Battery | Lead Acid Battery |
| Usb Connectivity | USB Connection |
| Va Rating | 2501-3000 |
| Warranty Information | 2 Year |
| Weight (lbs.) | 60.4 |
| Width in Inches | 17.3 |
Details
The Eaton® 9PX3000GLRT 3000 VA dual conversion online UPS has four status indicating LEDs and graphical display. It measures 3.4" x 17.3" x 23.8". The sealed lead acid UPS has one NEMA L6-20P plug, one NEMA L6-30R plug, two NEMA L6-20R plugs, RS-232 port and USB port for connectivity. It offers IEEE ANSI C62.41 Cat B2 surge protection. This maintenance-free UPS comes with safety manual, user manual, output cables, input cables, cable lockers, 4-post rail kit, tower pedestals, RS-232 serial cable, USB cable and intelligent power software suite CD.
- Dual conversion online UPS for power protection
- Load capacity: 3000 VA, 3000 W
- Dimensions: 3.4"H x 17.3"W x 23.8"D
- Output voltage: 200, 208, 220, 230, 240 VAC
- LEDs: Four status-indicating LEDs, Graphical display
- Form factor: 2U tower/rack mountable
- Battery chemistry: Sealed Lead Acid
- Interface: RS-232 (RJ45), USB, Receptacles: One NEMA L6-30R, two NEMA L6-20R
- Surge protection: IEEE ANSI C62.41 Cat B2
- Input connection: One NEMA L6-20P, Input cord: Detachable L6-20P to C19 input cord, 6'
- Color: Black/silver, Battery characteristics: Maintenance-free, Switching time: 0 ns
- Input voltage: 200, 208, 220, 230, 240 VAC, Input voltage range: Full load: 176 - 276 V, <40% load: 100 - 276 V, Frequency: 50/60 Hz
- Efficiency: 93% with resistive load, Temperature: 0 to 40 deg C (operating), 0 to 35 deg C (storage), Relative humidity: 0 - 96% (non-condensing)
- Includes UPS, safety manual, user manual, output cables, input cables, cable lockers, 4-post rail kit, tower pedestals, RS-232 serial cable
- Meets RoHS, CE/cULus/NOM, IEC 62040-2 Class B Cat C2/CISPR22 Class B/FCC part 15 Class B/VCCI Class B certifications and standards
- Weight: 60.4 lbs.
- Comes with 2 years warranty
| Attribute Name | Attribute Value |
|---|
