Highlights
View Details- Dual conversion online UPS protects the connected loads from surges, spikes, lightning and other power disturbances
- Receptacles: 8 x NEMA 5-15R
- Dimensions: 3.4"H x 17.3"W x 17.7"D

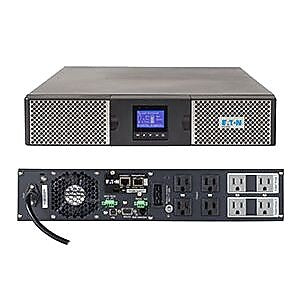

Eaton 9PX1500RTN 1500VA/1350 W Dual Conversion Online Tower/Rack Mountable UPS, 8'
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Eaton 9PX1500RTN 1500VA dual conversion online tower/ rack mountable UPS in black/silver color, provides up to 1350 W of power to desktop computers, workstations, networking devices and home entertainment systems. It features a graphical LCD for local status updates and integrates with virtualized environments. The UPS safeguards your sensitive electrical equipment against damaging spikes and surges. The UPS supports both tower/rack mounting and has 8 power outlets, 1 x USB and RJ-45 interfaces for connection.
- Dual conversion online UPS protects the connected loads from surges, spikes, lightning and other power disturbances
- Receptacles: 8 x NEMA 5-15R
- Dimensions: 3.4"H x 17.3"W x 17.7"D
- Graphical display
- Input voltage: 100 to 144 VAC (full load), 60 to 144 VAC (<30% load), power: 1350 W
- Meets IEEE ANSI C62.41 Cat B2, CE, cULus, NOM, IEC 62040-2 Cat C1, CISPR22, FCC part 15 Class B, VCCI Class B, ENERGY STAR, RoHS standards
- Color: Black/silver, cable length: 8'
- Design: 4 status-indicating LEDs
- Interface: RS-232 ports, USB port as standard, 6' RS-232, USB cable
- Form factor: Tower/rack mountable, transfer time: 0 ms, efficiency: 90% with resistive load
- Output: 120 V default (100/110/120/125 V), +/- 1% steady-state (regulation), <3% for linear loads (THD)
- Battery: Sealed lead acid, maintenance free, ABM technology, 3-stage charging
- Input: >0.99 (power factor), <5% (current distortion), 50/60 Hz (frequency)
- BTU: 512/hour (online), 897/hour (battery), audible noise: = 40 dB at 1m
- Includes network-MS Web/SNMP card, 4-post rail kit, safety manual, user manual, tower pedestals, RS-232 cable, intelligent power software suite CD
- Temperature: 0 to 40 deg C (Operating), 0 to 35 deg C (Storage), 0 to 96% (Humidity)
- Weight: 42.5 lbs.
- Comes with 2 year warranty
| Manufacturer # | 9PX1500RTN |
| # of Usb Ports | 1 |
| Brand Name | Eaton |
| Color Family | Black |
| Indoor or Outdoor Use | Indoor |
| Pack Qty | 1 |
| True Color | Black |
| Usb Ports Included | Includes USB Ports |
| Voltage-volts | 100 |
| Warranty Information | 2 Year |
| Wattage (kw) | 1.3 |
Details
The Eaton 9PX1500RTN 1500VA dual conversion online tower/ rack mountable UPS in black/silver color, provides up to 1350 W of power to desktop computers, workstations, networking devices and home entertainment systems. It features a graphical LCD for local status updates and integrates with virtualized environments. The UPS safeguards your sensitive electrical equipment against damaging spikes and surges. The UPS supports both tower/rack mounting and has 8 power outlets, 1 x USB and RJ-45 interfaces for connection.
- Dual conversion online UPS protects the connected loads from surges, spikes, lightning and other power disturbances
- Receptacles: 8 x NEMA 5-15R
- Dimensions: 3.4"H x 17.3"W x 17.7"D
- Graphical display
- Input voltage: 100 to 144 VAC (full load), 60 to 144 VAC (<30% load), power: 1350 W
- Meets IEEE ANSI C62.41 Cat B2, CE, cULus, NOM, IEC 62040-2 Cat C1, CISPR22, FCC part 15 Class B, VCCI Class B, ENERGY STAR, RoHS standards
- Color: Black/silver, cable length: 8'
- Design: 4 status-indicating LEDs
- Interface: RS-232 ports, USB port as standard, 6' RS-232, USB cable
- Form factor: Tower/rack mountable, transfer time: 0 ms, efficiency: 90% with resistive load
- Output: 120 V default (100/110/120/125 V), +/- 1% steady-state (regulation), <3% for linear loads (THD)
- Battery: Sealed lead acid, maintenance free, ABM technology, 3-stage charging
- Input: >0.99 (power factor), <5% (current distortion), 50/60 Hz (frequency)
- BTU: 512/hour (online), 897/hour (battery), audible noise: = 40 dB at 1m
- Includes network-MS Web/SNMP card, 4-post rail kit, safety manual, user manual, tower pedestals, RS-232 cable, intelligent power software suite CD
- Temperature: 0 to 40 deg C (Operating), 0 to 35 deg C (Storage), 0 to 96% (Humidity)
- Weight: 42.5 lbs.
- Comes with 2 year warranty
| Attribute Name | Attribute Value |
|---|
