Highlights
View Details- Enclosure power distribution unit offers reliable and cost effective power distribution
- Dimensions: 66.5"(H) x 2.1"(W) x 2.1"(D)
- Receptacles: NEMA L21-30P input, 30 x IEC 60320 C13, six IEC 60320 C19, one NEMA 5-20R output, 10/100 Ethernet interface, Serial interface: RS232

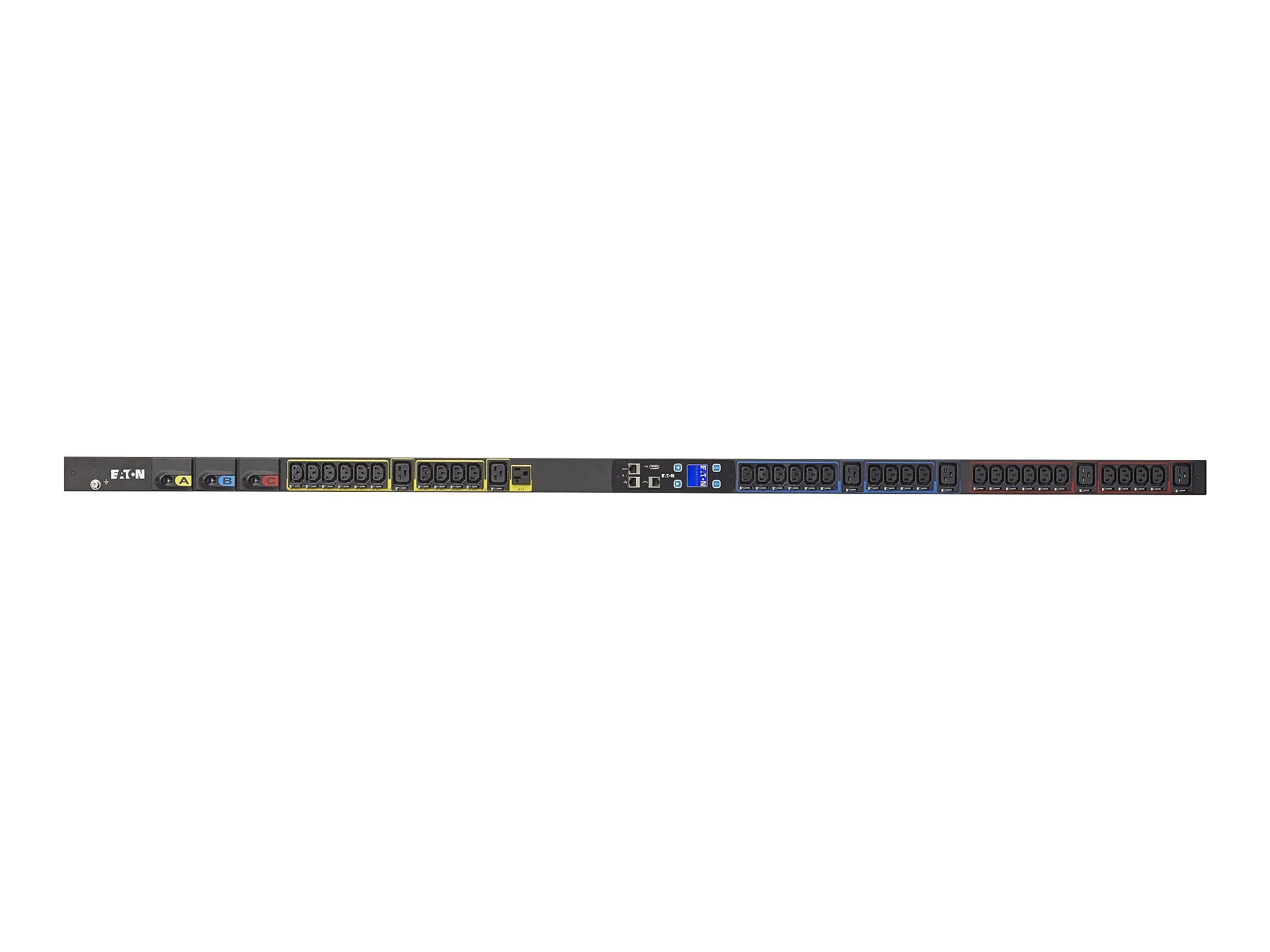

Eaton G3 Three-Phase 120/208 V Metered Power Distribution Unit, 37-Outlet, Black (EMI310-10)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Eaton ® EMI310-10 G3 monitored ePDU facilitates billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter of this ePDU, is perfect for measuring current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. It is great for IT and data center applications. This ePDU incorporates daisy chain that allows four ePDUs to share the same network connection and IP address. It can operate in high operating temperature environments up to 140 deg F. This ePDU has a input voltage rating of 120/208 V and power rating of 8.64 kVA.
- Enclosure power distribution unit offers reliable and cost effective power distribution
- Dimensions: 66.5"(H) x 2.1"(W) x 2.1"(D)
- Receptacles: NEMA L21-30P input, 30 x IEC 60320 C13, six IEC 60320 C19, one NEMA 5-20R output, 10/100 Ethernet interface, Serial interface: RS232
- Voltage: 120/208 VAC input at 50/60 Hz, Input current: 24 A, Circuit breakers: (3) 20 A
- Output capacity: 8.64 kW
- Input cord length: 10'
- Form factor: Vertical (0U)
- Has high accuracy meter that measures current, voltage, power and energy for load balancing, capacity planning & energy usage reporting
- High operating temperature (140 deg F/60 deg C) for containment or hot network closet environments
- Perfect for IT and data center applications
- Allows +/- 1 percent billing grade accuracy for high accuracy reporting of energy usage
- Advanced LCD pixel display is perfect to display current, voltage, power and menu setup of parameters including IP address or display rotation
- Hot-swap meter offers easy serviceability without removing power to the rack
- Meets UL ITE 60950-1 and FCC standards or certifications
| Manufacturer # | EMI31010 |
| Brand Name | Eaton |
| Cable Length (ft.) | 10 |
| Depth in Inches | 2.1 |
| Height in Inches | 66.5 |
| Input Connector | NEMA L21-30P |
| Input Current | 24 A |
| Input Voltage | 120/208 V |
| Load Capacity | 8.64 kW |
| Operating Temperature (fahrenheit) | Up to 140 deg F |
| Outlet Count | 37 |
| Phase | Three-Phase |
| Power Distribution Unit Type | Metered |
| Series or Collection | G3 |
| True Color | Black |
| Width in Inches | 2.1 |
Details
The Eaton ® EMI310-10 G3 monitored ePDU facilitates billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter of this ePDU, is perfect for measuring current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. It is great for IT and data center applications. This ePDU incorporates daisy chain that allows four ePDUs to share the same network connection and IP address. It can operate in high operating temperature environments up to 140 deg F. This ePDU has a input voltage rating of 120/208 V and power rating of 8.64 kVA.
- Enclosure power distribution unit offers reliable and cost effective power distribution
- Dimensions: 66.5"(H) x 2.1"(W) x 2.1"(D)
- Receptacles: NEMA L21-30P input, 30 x IEC 60320 C13, six IEC 60320 C19, one NEMA 5-20R output, 10/100 Ethernet interface, Serial interface: RS232
- Voltage: 120/208 VAC input at 50/60 Hz, Input current: 24 A, Circuit breakers: (3) 20 A
- Output capacity: 8.64 kW
- Input cord length: 10'
- Form factor: Vertical (0U)
- Has high accuracy meter that measures current, voltage, power and energy for load balancing, capacity planning & energy usage reporting
- High operating temperature (140 deg F/60 deg C) for containment or hot network closet environments
- Perfect for IT and data center applications
- Allows +/- 1 percent billing grade accuracy for high accuracy reporting of energy usage
- Advanced LCD pixel display is perfect to display current, voltage, power and menu setup of parameters including IP address or display rotation
- Hot-swap meter offers easy serviceability without removing power to the rack
- Meets UL ITE 60950-1 and FCC standards or certifications
| Attribute Name | Attribute Value |
|---|
