Highlights
View Details- Power distribution unit
- Dimensions: 1.7"H x 17.25"W x 9.84"D
- Input voltage: 120 V, Frequency: 50 - 60 Hz

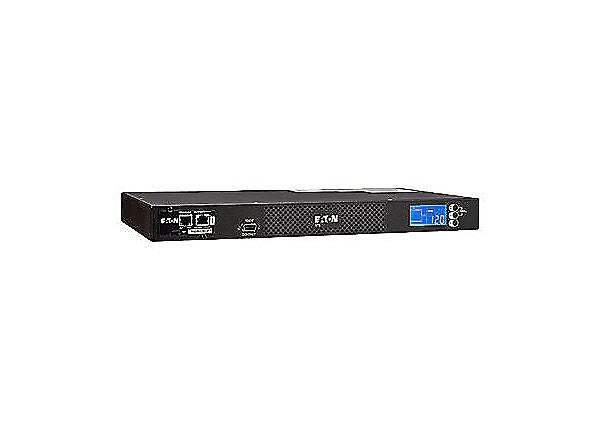

Eaton Single-Phase 120 V Transfer Switches Power Distribution Unit, 10-Outlet, 1U Rack Mount, Black (EATS115)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Eaton eATS ePDUs: Designed for switching non phase synchronized AC power sources, the automatic transfer switch ePDUs intelligent circuitry monitors both inputs, providing a fast switch transfer from primary to secondary source power critical equipment without interruption. These ePDUs assure the highest level of redundancy to mission critical applications.
- Power distribution unit
- Dimensions: 1.7"H x 17.25"W x 9.84"D
- Input voltage: 120 V, Frequency: 50 - 60 Hz
- Input current: 12 A
- Power capacity: 1.44 kW
- Phase: Single phase
- Cord length: 10'
- Input receptacles: 2 x NEMA 5-15P
- Output receptacles: 10 x NEMA 5-15R
- Serial interface: RS232
- Mounting style: Horizontal
- Rack height: 1U
- Ethernet interface: 10/100 Ethernet
- Certifications and standards: UL Listed, FCC
- 3 years standard warranty
| Manufacturer # | EATS115 |
| Brand Name | Eaton |
| Cable Length (ft.) | 10 |
| Depth in Inches | 9.84 |
| Height in Inches | 1.7 |
| Input Connector | 2 x NEMA 5-15P |
| Input Current | 12 A |
| Input Voltage | 120 V |
| Load Capacity | 1.44 kW |
| Outlet Connectors | 10 x NEMA 5-15R |
| Outlet Count | 10 |
| Output Frequency | 50 - 60 Hz |
| Phase | Single-Phase |
| Power Distribution Unit Type | Transfer Switches |
| Rack Units | 1U |
| True Color | Black |
| Warranty Information | 3 Year |
| Width in Inches | 17.25 |
Details
Eaton eATS ePDUs: Designed for switching non phase synchronized AC power sources, the automatic transfer switch ePDUs intelligent circuitry monitors both inputs, providing a fast switch transfer from primary to secondary source power critical equipment without interruption. These ePDUs assure the highest level of redundancy to mission critical applications.
- Power distribution unit
- Dimensions: 1.7"H x 17.25"W x 9.84"D
- Input voltage: 120 V, Frequency: 50 - 60 Hz
- Input current: 12 A
- Power capacity: 1.44 kW
- Phase: Single phase
- Cord length: 10'
- Input receptacles: 2 x NEMA 5-15P
- Output receptacles: 10 x NEMA 5-15R
- Serial interface: RS232
- Mounting style: Horizontal
- Rack height: 1U
- Ethernet interface: 10/100 Ethernet
- Certifications and standards: UL Listed, FCC
- 3 years standard warranty
