View Details- Power distribution unit offers a range of basic and metered PDUs for any application
- Dimensions: 66.5"H x 2.05"W x 2.56"D
- Comes in black color

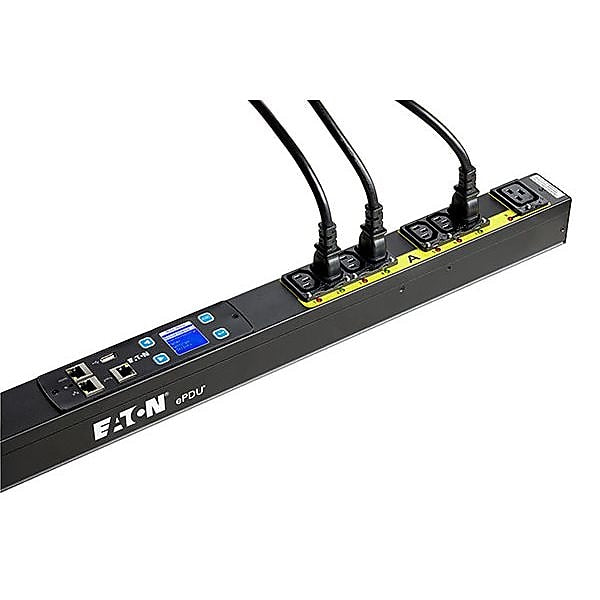

Eaton Single-Phase 120 VAC Managed Rack Power Distribution Unit, 24-Outlet, Black (EMA108-10)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

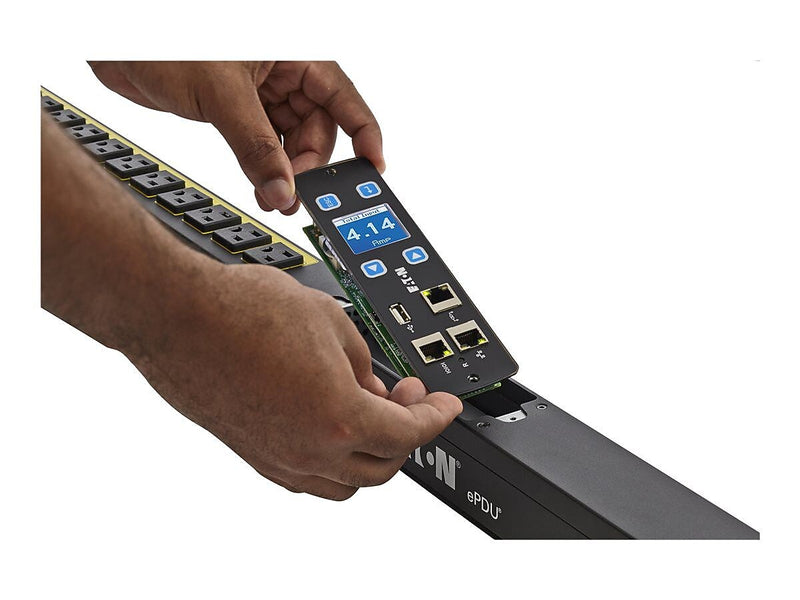

The Eaton® EMA108-10 G3 managed Power distribution unit in black, provides a billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure voltage, current, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting.
- Power distribution unit offers a range of basic and metered PDUs for any application
- Dimensions: 66.5"H x 2.05"W x 2.56"D
- Comes in black color
- Input: (1) NEMA L5-30P, output: (24) NEMA 5-20R
- Input current: 24 A, frequency: 50 - 60 Hz
- Input voltage: 120 V, output voltage: 120 V, single phase
- Form factor: Vertical
- Rack height: 0U
- Serial interface: RS232, Ethernet interface: 10/100 Ethernet
- Cable length: 10'
- Outlet control, voltage monitoring, current monitoring: Input, section, outlet, +/- 1%
- Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
- Circuit breakers: (2) 20 A
- Manages entire environment remotely over the network from a single interface
- Meets UL, cUL standards
| Manufacturer # | EMA10810 |
| Brand Name | Eaton |
| Cable Length (ft.) | 10 |
| Depth in Inches | 2.56 |
| Height in Inches | 66.5 |
| Input Connector | 1 x NEMA L5-30P |
| Input Current | 24 A |
| Input Voltage | 120 VAC |
| Load Capacity | 2.88 kW |
| Outlet Connectors | 24 x NEMA 5-20R |
| Outlet Count | 24 |
| Output Frequency | 50/60 Hz |
| Output Voltage | 120 VAC |
| Phase | Single-Phase |
| Power Distribution Unit Type | Managed Rack |
| True Color | Black |
| Width in Inches | 2.05 |
Details
The Eaton® EMA108-10 G3 managed Power distribution unit in black, provides a billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure voltage, current, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting.
- Power distribution unit offers a range of basic and metered PDUs for any application
- Dimensions: 66.5"H x 2.05"W x 2.56"D
- Comes in black color
- Input: (1) NEMA L5-30P, output: (24) NEMA 5-20R
- Input current: 24 A, frequency: 50 - 60 Hz
- Input voltage: 120 V, output voltage: 120 V, single phase
- Form factor: Vertical
- Rack height: 0U
- Serial interface: RS232, Ethernet interface: 10/100 Ethernet
- Cable length: 10'
- Outlet control, voltage monitoring, current monitoring: Input, section, outlet, +/- 1%
- Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
- Circuit breakers: (2) 20 A
- Manages entire environment remotely over the network from a single interface
- Meets UL, cUL standards
