View Details- Power distribution unit is great for IT and data center applications
- Measures 77.6" x 7.7" x 9.3"
- Features vertical mounting style and has cable length of 10' for reliable operation

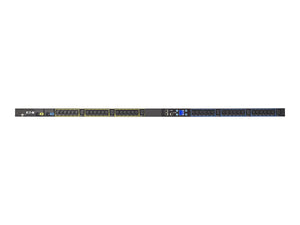

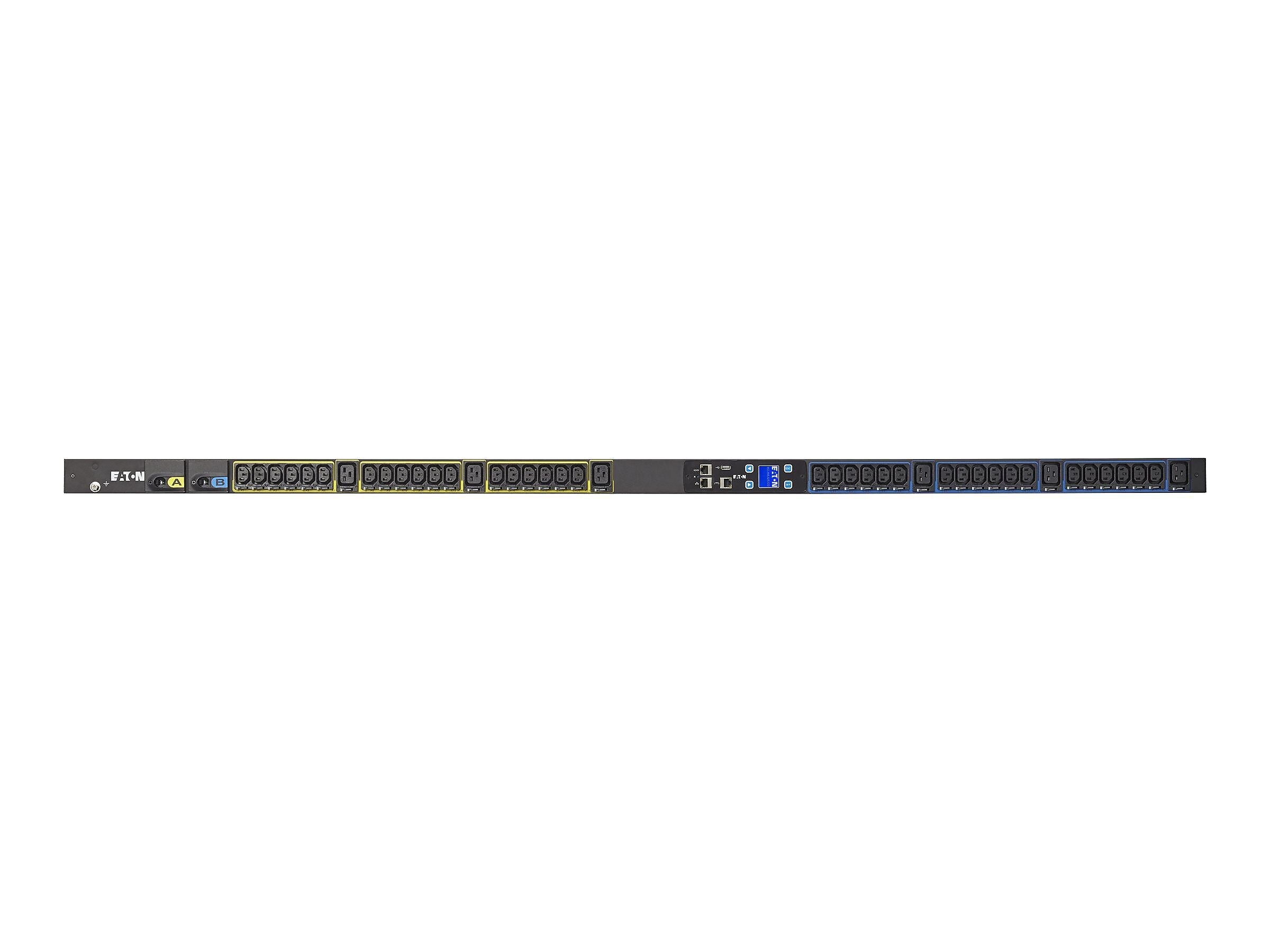

Eaton Single-Phase 200 - 240 V Metered Power Distribution Unit, Black (EMI104-10)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Eaton EMI104-10 Metered input power distribution unit performs accurate monitoring of input and branch circuits on a local LCD pixel display. Robust design makes power distribution unit perfect for high operating temperatures. Rack mountable and features LCD display. Suitable to measure current, voltage, power and energy for load balancing, energy usage reporting, capacity planning as well as efficiency monitoring. Has a power rating of 5.76 kW, maximum current rating of 24 A and frequency rating of 50 - 60 Hz.
- Power distribution unit is great for IT and data center applications
- Measures 77.6" x 7.7" x 9.3"
- Features vertical mounting style and has cable length of 10' for reliable operation
- Current rating of 24 A for convenience
- Optional EMP001 Environmental interface and RS232 serial interface
- Meter measures current, voltage, power and energy for load balancing
- Has robust design made for high operating temperatures
- Meets UL certification and standards
| Manufacturer # | EMI10410 |
| Brand Name | Eaton |
| Cable Length (ft.) | 10 |
| Depth in Inches | 9.3 |
| Height in Inches | 77.6 |
| Input Connector | NEMA L6-30P |
| Input Current | 20 A |
| Input Voltage | 200 - 240 V |
| Load Capacity | 5.76 kW |
| Outlet Connectors | IEC 60320 C13 Grip, IEC 60320 C19 Grip |
| Output Frequency | 50/60 Hz |
| Phase | Single-Phase |
| Power Distribution Unit Type | Metered |
| True Color | Black |
| Width in Inches | 7.7 |
Details
Eaton EMI104-10 Metered input power distribution unit performs accurate monitoring of input and branch circuits on a local LCD pixel display. Robust design makes power distribution unit perfect for high operating temperatures. Rack mountable and features LCD display. Suitable to measure current, voltage, power and energy for load balancing, energy usage reporting, capacity planning as well as efficiency monitoring. Has a power rating of 5.76 kW, maximum current rating of 24 A and frequency rating of 50 - 60 Hz.
- Power distribution unit is great for IT and data center applications
- Measures 77.6" x 7.7" x 9.3"
- Features vertical mounting style and has cable length of 10' for reliable operation
- Current rating of 24 A for convenience
- Optional EMP001 Environmental interface and RS232 serial interface
- Meter measures current, voltage, power and energy for load balancing
- Has robust design made for high operating temperatures
- Meets UL certification and standards
