Highlights
View Details- Black or white
- Screen size: 17", Screen mode: SXGA, Screen surface: Anti-glare, Response time: 5 ms, Aspect ratio: 5:4, Horizontal/vertical viewing angle: 170 deg/160 deg
- LCD technology: Active matrix TFT LCD with LED backlighting, Active display area: 13.3 x 10.6 inches, Native resolution: 1280 x 1024

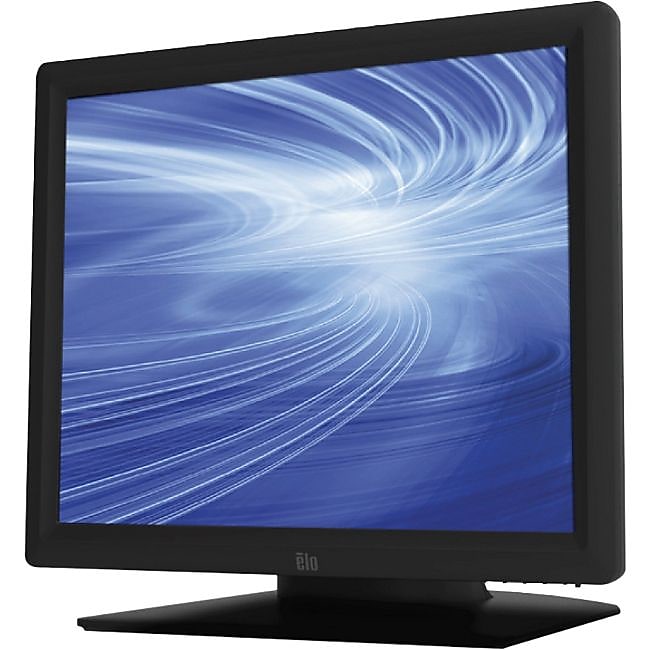

ELO 1717L Rev B 17" SXGA LED LCD Touchscreen Monitor
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
ELO 1717L Rev 17" Touchscreen monitor saves energy using LED technology and has a contrast ratio of 800:1. Monitor supports USB and RS232 serial connections and has a brightness of 250 Nit.
- Black or white
- Screen size: 17", Screen mode: SXGA, Screen surface: Anti-glare, Response time: 5 ms, Aspect ratio: 5:4, Horizontal/vertical viewing angle: 170 deg/160 deg
- LCD technology: Active matrix TFT LCD with LED backlighting, Active display area: 13.3 x 10.6 inches, Native resolution: 1280 x 1024
- Preset video timings: 640x480 at 60Hz, 75Hz, 720x400 at 70Hz, 800x600 at 56Hz, 60Hz, 75Hz, 1024x768 at 60Hz, 75Hz, 1280x1024 at 60Hz, 75Hz
- Colors 16.7 million, Brightness: LCD panel: 250 nits, with AccuTouch: 200 nits, with IntelliTouch: 225 nits, with iTouch: 225 nits
- On-screen display (OSD): Accessible through switches along the bottom: Controls: Menu, up, down, select, Settings: Contrast, brightness, H position, V-Position, auto-adjust, aspect ratio, sharpness, color
- Video: Analog VGA on female De-15 connector, input video horizontal sync frequency range: 31.5- 80KHz, input video vertical sync (frame rate) frequency range: 56-75Hz, Touch Interface Serial (RS232) and USB
- Input voltage: 110 VAC, 220 VAC, 12 V DC, Operating power consumption: 20 W, Standby power consumption: 1.80 W, Off mode power consumption: 1.40 W
- Mount type: Desk mountable, pole mount, wall mountable, Backlight technology: LED, Features: Security lock, 40% energy savings using LED technology, zero-bezel touchscreen versions for a smooth, easy-to-clean surface
- Touchscreen: Yes, Touchscreen type: IntelliTouch surface wave, flexible and space-saving, sleek and thin design with “Built for Touch” Reliability
- VeSA mount compatible: Yes, VeSA mount standard: 75 x 75
- Temperature operating: 32 deg F to 104 deg F (0 deg C to 40 deg C), Storage: -4 deg F to 140 deg F (20 deg C to 60 deg C), Humidity: Operating: 20%-80%, Storage: 10%-90%
- Dimensions: 15.4" x 7.5" x 14.2"
- Includes 1717L Rev B 17-inch multifunction desktop, power cable, detachable touch and video cables
- Certification and Standards: Argentina S-mark, Australia C-Tick, Canada cUL, IC, China CCC, europe Ce, Japan VCCI, Korea KCC, Mexico CoC, Taiwan BSMI Mark, United States UL, FCC, International CB, IMeRC
- Weight: 11.9 lbs.
- Warranty: 3 years limited
| Manufacturer # | E077464 |
| Brand Name | ELO |
Details
ELO 1717L Rev 17" Touchscreen monitor saves energy using LED technology and has a contrast ratio of 800:1. Monitor supports USB and RS232 serial connections and has a brightness of 250 Nit.
- Black or white
- Screen size: 17", Screen mode: SXGA, Screen surface: Anti-glare, Response time: 5 ms, Aspect ratio: 5:4, Horizontal/vertical viewing angle: 170 deg/160 deg
- LCD technology: Active matrix TFT LCD with LED backlighting, Active display area: 13.3 x 10.6 inches, Native resolution: 1280 x 1024
- Preset video timings: 640x480 at 60Hz, 75Hz, 720x400 at 70Hz, 800x600 at 56Hz, 60Hz, 75Hz, 1024x768 at 60Hz, 75Hz, 1280x1024 at 60Hz, 75Hz
- Colors 16.7 million, Brightness: LCD panel: 250 nits, with AccuTouch: 200 nits, with IntelliTouch: 225 nits, with iTouch: 225 nits
- On-screen display (OSD): Accessible through switches along the bottom: Controls: Menu, up, down, select, Settings: Contrast, brightness, H position, V-Position, auto-adjust, aspect ratio, sharpness, color
- Video: Analog VGA on female De-15 connector, input video horizontal sync frequency range: 31.5- 80KHz, input video vertical sync (frame rate) frequency range: 56-75Hz, Touch Interface Serial (RS232) and USB
- Input voltage: 110 VAC, 220 VAC, 12 V DC, Operating power consumption: 20 W, Standby power consumption: 1.80 W, Off mode power consumption: 1.40 W
- Mount type: Desk mountable, pole mount, wall mountable, Backlight technology: LED, Features: Security lock, 40% energy savings using LED technology, zero-bezel touchscreen versions for a smooth, easy-to-clean surface
- Touchscreen: Yes, Touchscreen type: IntelliTouch surface wave, flexible and space-saving, sleek and thin design with “Built for Touch” Reliability
- VeSA mount compatible: Yes, VeSA mount standard: 75 x 75
- Temperature operating: 32 deg F to 104 deg F (0 deg C to 40 deg C), Storage: -4 deg F to 140 deg F (20 deg C to 60 deg C), Humidity: Operating: 20%-80%, Storage: 10%-90%
- Dimensions: 15.4" x 7.5" x 14.2"
- Includes 1717L Rev B 17-inch multifunction desktop, power cable, detachable touch and video cables
- Certification and Standards: Argentina S-mark, Australia C-Tick, Canada cUL, IC, China CCC, europe Ce, Japan VCCI, Korea KCC, Mexico CoC, Taiwan BSMI Mark, United States UL, FCC, International CB, IMeRC
- Weight: 11.9 lbs.
- Warranty: 3 years limited
