Fischertechnik Robotics TXT Controller, interface unit for Fischertechnik robotic models (522429)

The Fischertechnik ROBOTICS TXT Controller acts as the command post for Fischertechnik 's robotic models. The controller is both very powerful, and very compact, with dimensions of only 90 x 90 x 25 mm, and a weight of only .77 lb. Control of your robotic models is easy with the full color 2.4“ touch display. The combined Bluetooth/WiFi RF module provides the perfect, wireless interface for numerous applications. The numerous interfaces also include a USB host port for USB sticks and other components such as the Fischertechnik USB camera. The integrated Micro SD card slot allows expansion of the memory capacity. 2 Controllers can easily be coupled.Please note that the TXT Controller will require either a Fischertechnik Accu Set, or Power Set (each sold separately), or a 9V DC power supply with a 1.3 x 3.5 x 9.5 mm plug.

• Compact, powerful control unit for Fischertechnik robotic models

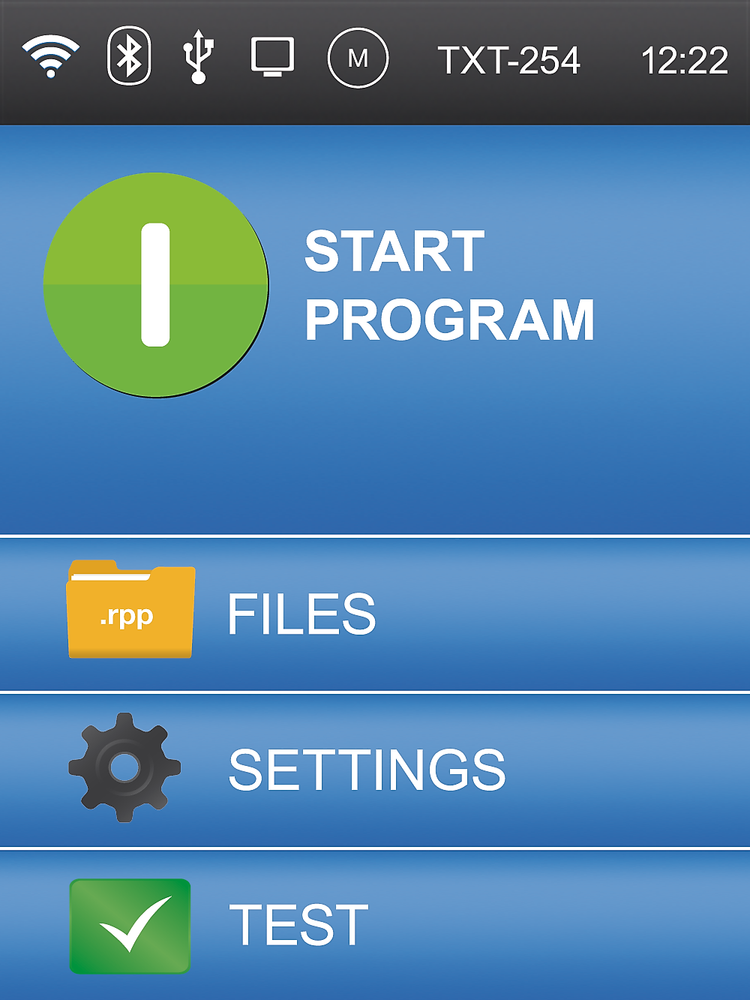

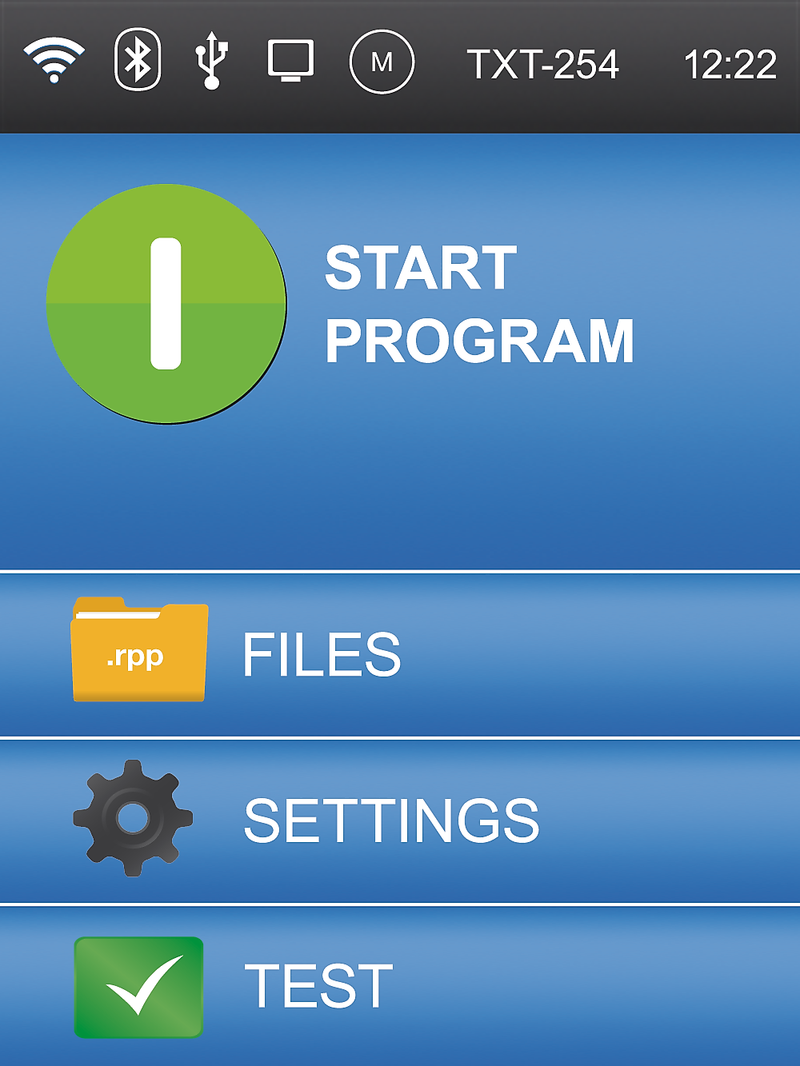

• Full color 2.4 inch touchscreen display (320 x 240 pixels)
• Combined WLAN/Bluetooth module for remote control by PC, Android smartphone, or tablet
• Age 10 and above.
• Memory capacity: 128 MB DDR3 RAM, 64 MB Flash
• Memory expansion Micro SD card slot
• 8 Universal inputs: Digital/analog 0-9VDC, analog 0-5 kΩ
• 4 high speed numerical inputs: Digital, frequency up to 1kHz
• 4 Motor outputs 9V/250mA (max: 800 mA): speed infinitely controllable, short-circuit proof, alternative 8 single outputs forcomponents such as lights, etc.
• Infrared receiver diode: for Fischertechnik Control Set transmitter
• USB 2.0 Client: Mini USB port for connection to PC
• USB Host interface: USB A port for Fischertechnik USB camera, USB sticks, etc.
• Camera interface: over USB Host, Linux camera driver integrated into operating system
• 10-pin male connector for additional inputs and outputs as well as I2C interface
• Integrated loud speaker
• Integrated real time clock with exchangeable buffer battery: for capturing measured values within a defined period of time
• Linux-based open source operating system
• Programming possible with ROBO Pro, C-Compiler, PC-Library, and many others.
• Link to smartphones/tablet PC‘s via Bluetooth or WLAN, allowing them to be used as terminals for the controller.
• Programming using ROBO-Pro software
• Dimensions: 90x90x25 mm
• Power supply: 9V DC 3.45 mm socket, or 2.5 mm Fischertechnik sockets for Accu Set NiMH battery.
