Highlights
View Details- Display type: Extra-large, backlit LCD screen
- Current range: 10 - 100 mA
- AC impedance: Off-hook: 600 O nominal 300 - 3400 Hz, on-hook: greater-than120 kO, 300 - 3400 Hz, headset impedance: 32 ohm

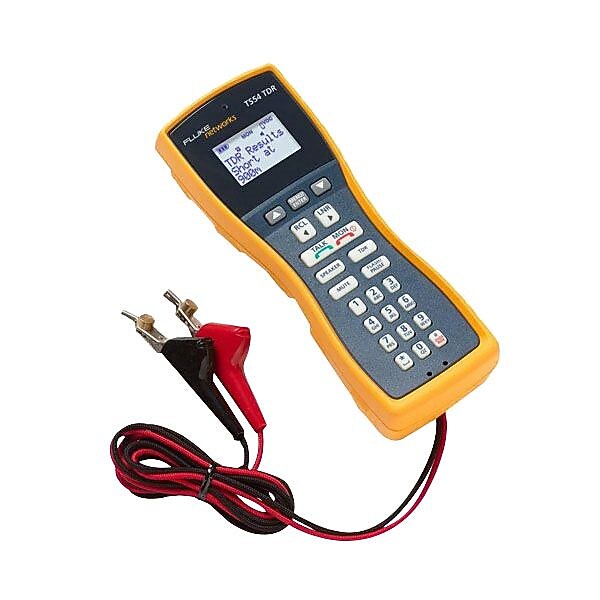

Fluke Networks® TS® 54 TDR LCD Button Test Set
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Two-way, hands-free speakerphone
- Display type: Extra-large, backlit LCD screen
- Current range: 10 - 100 mA
- AC impedance: Off-hook: 600 O nominal 300 - 3400 Hz, on-hook: greater-than120 kO, 300 - 3400 Hz, headset impedance: 32 ohm
- Pulsing rate: 10 pps +/- 1 pps, Break/make ratio: 60/40, Interdigit interval: greater-than300 ms, Resistance during break: greater-than100 kOhm
- Tone frequency error: +/- 1.5% maximum, Tone level: -3 dBm combined (typical), High versus low tone difference: 2 dB +/- 2 dB
- Memory capacity: 9 speed dial memories of 23 digits, plus one last number redial memory, PBX pause duration:-user programmable, default of 4 seconds, hook flash duration:user programmable, default of 500 ms
- Voltage range: 4 - 140 VDC
- Current range: 0 - 100 mA
- TDR range: 3000', Accuracy: +/-2 m, +/- 5 %
- Frequencies: Steady tone: 950 Hz, Alternating tones: 950 Hz and 1480 Hz
- Battery type: 9 V alkaline battery
- Dimensions: 8.3" x 3.2" x 2.6"
- Detects dial tone, places and receives calls, polarity
- Certifications and standards: ANSI/ISA 82.02.01 (61010-1) 2004, CAN/ CSA-C22.2 No. 61010-1-04, UL 61010-1 (2004) and IEC 61010-1:2010
- Data indication warns when data is present on the line, voltage indication/measurement identifies potential line problems, caller-ID with call waiting verifies functional service, DTMF digit grabbing isolates faulty customer premise equipment
- Data indication warns when data is present on the line, voltage indication/measurement identifies potential line problems, caller-ID with call waiting verifies functional service, DTMF digit grabbing isolates faulty customer premise equipment
| Manufacturer # | PD1064 |
| Brand Name | Fluke Networks |
| Depth in Inches | 2.6 |
| Display | Extra-large, backlit LCD screen |
| Height in Inches | 8.3 |
| Power Source | Battery-powered |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| True Color | Multicolor |
| Width in Inches | 3.2 |
Details
Two-way, hands-free speakerphone
- Display type: Extra-large, backlit LCD screen
- Current range: 10 - 100 mA
- AC impedance: Off-hook: 600 O nominal 300 - 3400 Hz, on-hook: greater-than120 kO, 300 - 3400 Hz, headset impedance: 32 ohm
- Pulsing rate: 10 pps +/- 1 pps, Break/make ratio: 60/40, Interdigit interval: greater-than300 ms, Resistance during break: greater-than100 kOhm
- Tone frequency error: +/- 1.5% maximum, Tone level: -3 dBm combined (typical), High versus low tone difference: 2 dB +/- 2 dB
- Memory capacity: 9 speed dial memories of 23 digits, plus one last number redial memory, PBX pause duration:-user programmable, default of 4 seconds, hook flash duration:user programmable, default of 500 ms
- Voltage range: 4 - 140 VDC
- Current range: 0 - 100 mA
- TDR range: 3000', Accuracy: +/-2 m, +/- 5 %
- Frequencies: Steady tone: 950 Hz, Alternating tones: 950 Hz and 1480 Hz
- Battery type: 9 V alkaline battery
- Dimensions: 8.3" x 3.2" x 2.6"
- Detects dial tone, places and receives calls, polarity
- Certifications and standards: ANSI/ISA 82.02.01 (61010-1) 2004, CAN/ CSA-C22.2 No. 61010-1-04, UL 61010-1 (2004) and IEC 61010-1:2010
- Data indication warns when data is present on the line, voltage indication/measurement identifies potential line problems, caller-ID with call waiting verifies functional service, DTMF digit grabbing isolates faulty customer premise equipment
- Data indication warns when data is present on the line, voltage indication/measurement identifies potential line problems, caller-ID with call waiting verifies functional service, DTMF digit grabbing isolates faulty customer premise equipment
