Fluke Networks DSX CableAnalyzer Kit (DSX2-5000)

The DSX CableAnalyzer Series copper cable certifiers enables testing and certification of twisted pair cabling for up to 40 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A, 8 or Class FA and I/II. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you'll be. Unfortunately, there are a lot of things that slow the process down – setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand.

• Cable analyzer enables testing and certification of twisted pair cabling for up to 40 Gigabit Ethernet deployments and will handle any cabling system
• Cable analyzer dimensions: 11"H x 5.25"W x 2.63"D
• Made of high-impact plastic with shock-absorbing overmold, comes in yellow

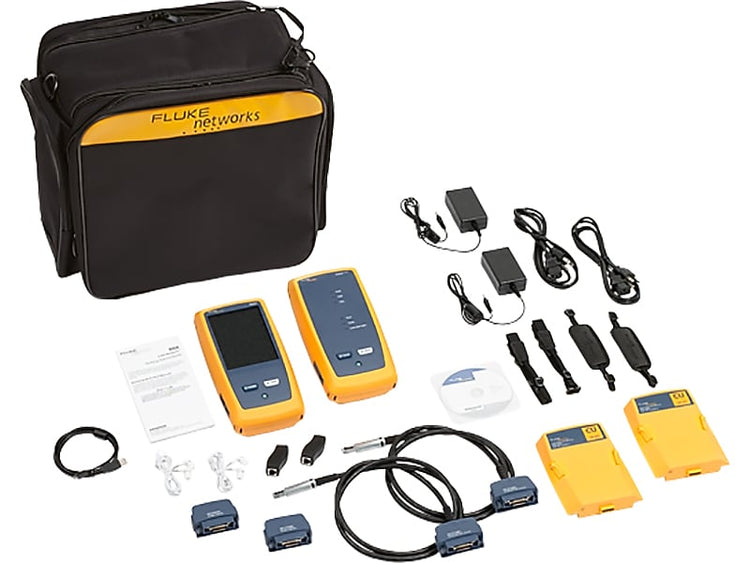

• Kit includes: versiv mainframe & remote, two DSX-5000 CableAnalyzer modules, set of Cat 6A/Class EA permanent link adapters, set of Cat 6A/Class EA channel adapters, two headsets, two handstrap, two shoulder straps, carry case, USB interface cable, versiv open source software CD, two AC chargers, two universal couplers, integrated Wi-Fi, Statement of calibration and getting started guide
• Works on 1000MHz maximum frequency
• Standard link interface adapters: shielded RJ45, Tera, GG45
• Supported test parameters: wire map, length, propagation delay, delay skew, dc loop resistance, pair-to-pair resistance unbalance, pair resistance unbalance, insertion loss, return loss, common mode return loss, near end crosstalk, far end crosstalk, attenuation-to-crosstalk ratio, acr-f, power sum acr-f/next/acr-n/alien next/alien attenuation next ratio far end, common mode to differential mode next,transverse conversion loss, equal level transverse conversion transfer loss
• 5.7" LCD with a projected-capacitance touch screen allows for quick tester setup with easily selectable cable types, standards, and testing parameters
• Versiv enables users to accomplish more than ever before with a cable tester, by accelerating every step of the testing process
• LinkWare Live cloud service lets the project manager remotely set up the testers and monitor job progress and even location from any smart device
• ProjX management system eases tasks from initial setup of a job to system acceptance, it eliminates redundant steps and ensures that all tests are completed correctly the first time, and every time
• Adaptive user interface puts advanced data analysis and easy setup and operation at the fingertips of technicians of all skill levels
• LinkWare PC management software provides unmatched analysis of test results and professional test reports
• The DSX reduces the time required to fix cabling faults with dedicated diagnostics, a simple test that locates the problem
• Integrated Wi-Fi allows you to easily upload results to LinkWare Live
• Meets or exceeds ANSI/TIA-568.2-D, ISO/IEC standards
