Fluke Networks Fiber QuickMap Distance and Fault Locator, Yellow/Black (FQM-100-M-VFL)

The Fluke Networks™ Fiber QuickMap™ FQM-100-M-VFL distance and fault locator works on multimode fiber. It helps to locate severe bends, high-loss splices, breaks and dirty connectors in multimode fiber. It also detects live optical signals before it begins testing. The distance and fault locator in yellow/black color, operates with two AA alkaline batteries.

• Distance and fault locator helps to locate severe bends, high-loss splices, breaks and dirty connectors in multimode fiber
• Dimensions: 6.9"H x 3.1"W x 1.5"D
• Comes in yellow/black color
• Battery: 2 AA alkaline batteries, 1500 tests life
• Works on multimode fiber, 50/125 mu m and 62.5/125 mu-m 850 nm output wavelength, measure up to 4921'
• Locate severe bends, high-loss splices, breaks and dirty connectors in multimode fiber
• Measure and locate high-loss splices, locate the end of a fiber
• Find potential sources of high bit error rates caused by reflectance from dirty or poor connections
• Detects live optical signals before it begins testing, quick set-up, connect your fiber and press the test button
• Find problems quickly, 6 sec test time - no more blind troubleshooting that can waste hours
• Change the Index of Refraction (IOR) to improve fiber length accuracy, visible in dark areas, backlighted display turns off automatically
• Temperature: 0 to 50 deg C operating, -20 to 60 deg C non-operating, 75 - 95% operating relative humidity

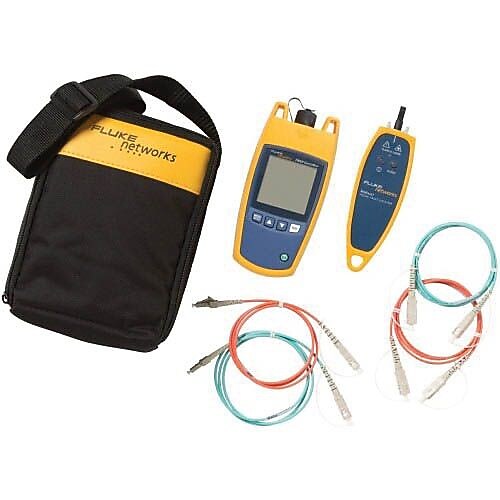

• Includes screw on interchangeable SC adapter, UPC-UPC 2 m patch cord, carrying case, guide, safety manual, batteries & VisiFault Visual fault locator
• Certifications and standards: Meets RoHS, CE, FCC, CSA standards
