Fluke Networks OptiFiber Pro Quad OTDR Kit (OFP2-100-QI)

Fluke Networks OptiFiber Pro designed for enterprise, datacenter, outside olant and PON fiber. As fiber networks evolve, the need to test in more locations has increased. OTDRs are now needed for: FTTx, enterprise, OSP, PON, POLAN. Many OTDRs designed for fiber troubleshooting are designed for carrier and contain cumbersome and complicated features. The OptiFiber Pro OTDR family is the first class of OTDRs that is built with features and usability for both the enterprise network engineers, and cable installers working in both enterprise and OSP environments. Fluke Networks OptiFiber Pro OTDRs make novices and experts faster. Advanced features include Manual Expert mode, pinch and zoom for in-depth trace analysis and SmartLoop for bi-directional testing. Supports Versiv copper and fiber loss certification modules.

• The optical time domain reflectometer (OTDR) for testing fiber networks
• Mainframe with module dimensions: 11"H x 5.25"W x 2.63"D
• Comes in black and yellow

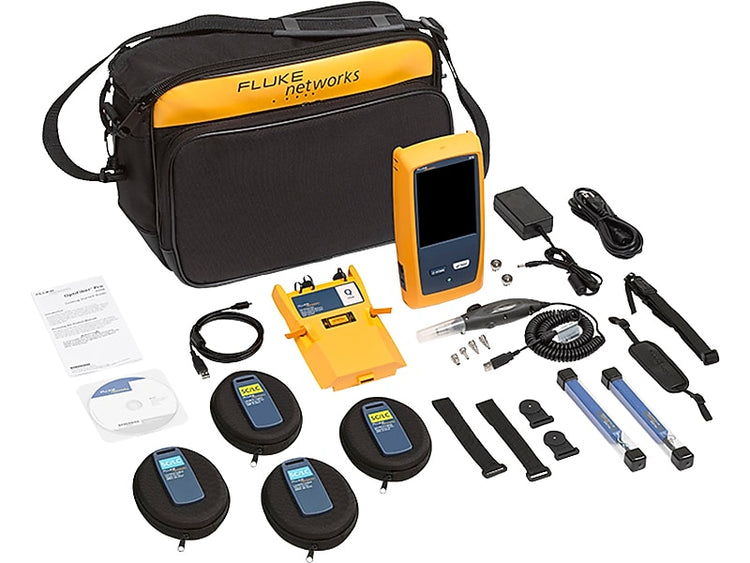

• Kit includes: versiv 2 mainframe, OptiFiber Pro Quad OTDR module, shoulder strap, carry case, USB interface cable, versiv open source software CD, AC charger, two quick clean cleaners, two SC/LC multimode launch cables, two SC/LC singlemode launch cables, two OTDR source port interchangeable LC adapters, USB fiber inspection video probe with four tips, SC/SC simplex adaptor, two launch fiber hanging straps and magnets, integrated Wi-Fi, Statement of calibration and getting started guides.
• Multiple wavelengths (850, 1300, 1310,1490, 1550, and 1625nm) support LAN, datacenters, PON, FTTx, and outside plant applications
• Automated setup senses fiber characteristics and sets measurement parameters
• SmartLoop OTDR enables automated testing and analysis of two fibers in a single test, eliminating the need to travel to the far end of the connection to perform tests
• Adaptive user interface puts advanced data analysis and easy setup and operation at the fingertips of technicians of all skill levels
• Compatible with Linkware Live and enables to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare PC cable test management software
• Test times in 2 seconds in Quick Test mode
• Quickly test datacenter fiber with preprogrammed settings
• Troubleshoot datacenter fiber links with short patch cables and many connectors because of ultrashort dead zones
• Easily characterize all connectors, splices, and areas of high loss with graphical EventMap view
• Pass/Fail certification of fiber optic connector endfaces
• ProjX management system increases return on investment by enabling OTDR
• Reduce network downtime by quickly and precisely identifying faults on all fiber types
• Built-in Visual Fault Locator (VFL) easily identifies damaged fibers
• Meets or exceeds ISO/TIA standards
• Integrated Wi-Fi allows you to easily upload results to LinkWare Live
