Highlights
View Details- Supporting the Wi-Fi 6E wireless standard based on IEEE 802.11ax, this access point offers a maximum aggregate data transfer rate of 3.9 Gbps (3900 Mbps), ensuring high throughput and enhanced performance for bandwidth-intensive applications.
- Power over Ethernet (PoE) for power through an Ethernet cable, this access point is compatible with the Wi-Fi 6E standard based on IEEE 802.11ax.
- Connectivity standards, including 802.11ax (Wi-Fi 6 and Wi-Fi 6E), 802.11ac (Wi-Fi 5), 802.11n (Wi-Fi 4), and 802.11a/b/g.

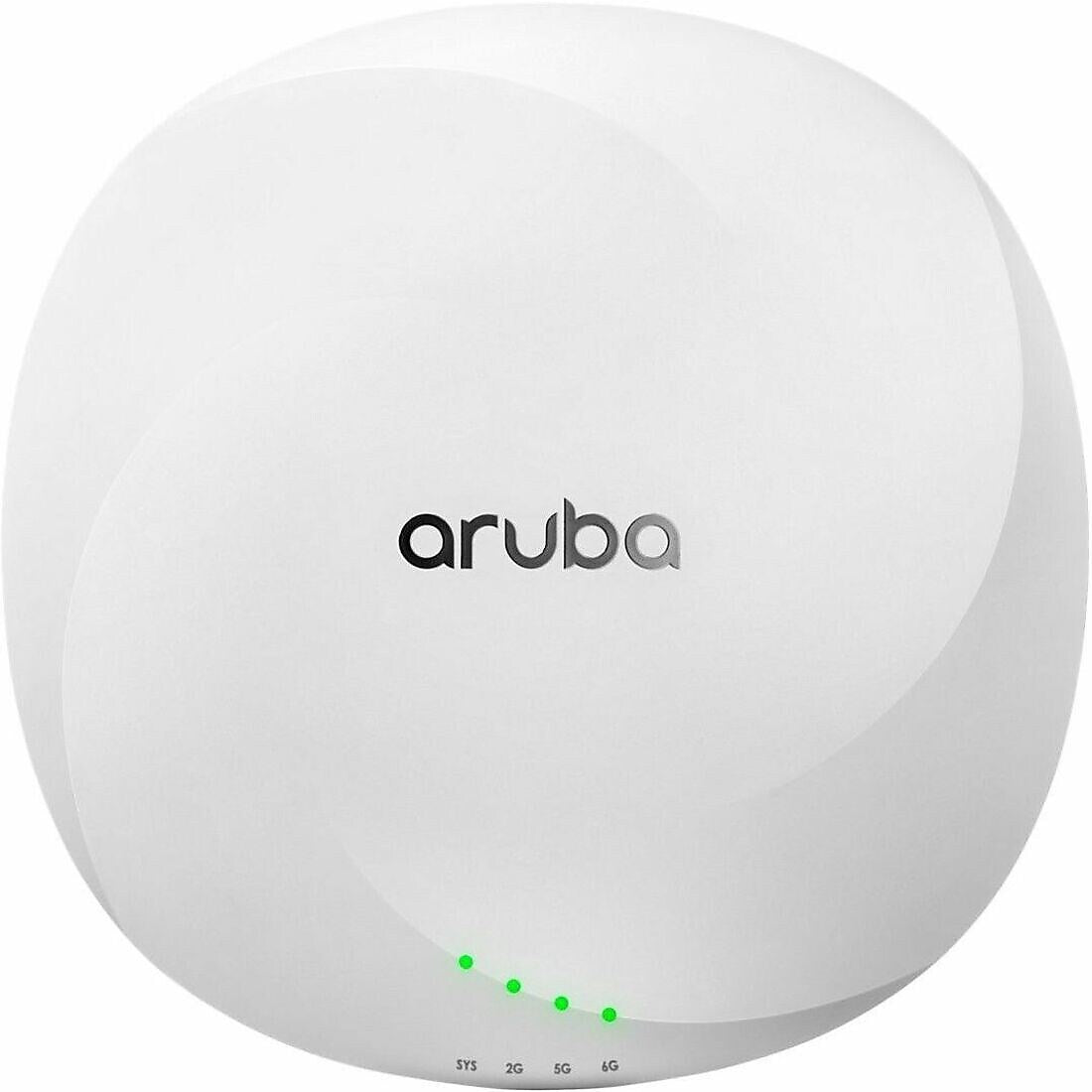

HPE 630 AX3900 Tri Band WiFi 6E Access Point, White (S3J36A)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
For enterprises who need more wireless capacity and wider channels, HPE Aruba Networking 630 Series Campus APs are designed to take advantage of the 6 GHz band via three dedicated radios. By using the 6 GHz band, capacity is more than doubled-so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to HPE Aruba Networking, the 630 Series includes ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.
- Supporting the Wi-Fi 6E wireless standard based on IEEE 802.11ax, this access point offers a maximum aggregate data transfer rate of 3.9 Gbps (3900 Mbps), ensuring high throughput and enhanced performance for bandwidth-intensive applications.
- Power over Ethernet (PoE) for power through an Ethernet cable, this access point is compatible with the Wi-Fi 6E standard based on IEEE 802.11ax.
- Connectivity standards, including 802.11ax (Wi-Fi 6 and Wi-Fi 6E), 802.11ac (Wi-Fi 5), 802.11n (Wi-Fi 4), and 802.11a/b/g.
- It includes two Ethernet (RJ-45) ports supporting 1 Gbps and 2.5 Gbps speeds for high-speed connectivity, Bluetooth 5.0 for IoT and location-based services, and ZigBee for IoT connectivity.
- Operating on three frequency bands—2.4 GHz, 5 GHz, and 6 GHz—this tri-band capability ensures comprehensive coverage and reduces interference, making it perfect for high-density environments.
- Built in GPS receivers and intelligent software enable APs to self-locate and act as reference points for accurate indoor location measurements
- Certifications & Standards: FCC/ISED, CE Marked, RED Directive 2014/53/EU, EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, UL/IEC/EN 62368-1, EN 60601-1-1, EN60601-1-2, UL2043 Plenum Rating, 802.3at, 802.3af, 802.3bz, 802.3az
- Comes with a lifetime warranty.
| Manufacturer # | S3J36A |
| Antenna | Integrated downtilt omni-directional antennas |
| Brand Name | HPE |
| Compatible Operating System | Windows 10 version 1803 and later, Windows Server 2016 and later, macOS 10.13 and later, iOS 12.1 and later, Android 9 and later, ChromeOS 115 |
| Connector, Port or Interface Type(s) | 2 x RJ-45, USB 2.0 Type A |
| Data Transfer Rate | 3.9 Gbps |
| Data Transfer Rate (gbps) | 3.9 |
| Data Transfer Rate (mbps) | 3900 |
| Depth in Inches | 8.7 |
| Encryption Type | WPA, WPA2, WPA3, WPA3-ENT, WPA3-SAE, WPA3-CNSA, WPA2-ENT, WPA-ENT, WPA2-SAE |
| Frequencies | 2.40 GHz/5 GHz/6 GHz |
| Frequency (wireless) | Tri Band 2.4/5/6GHz |
| Gaming | Non Gaming |
| Height in Inches | 2 |
| Max. Data Transfer Rate (mbps) | More than 3000 |
| Power Source | Power over Ethernet (PoE) |
| Power over Ethernet | Yes |
| Series or Collection | Aruba 630 |
| True Color | White |
| Warranty Information | Lifetime |
| Weight (lbs.) | 2.87 |
| Wifi Standard | WiFi 6E |
| Width in Inches | 8.7 |
| Wireless Bands | Tri Band |
| Wireless Connectivity | 802.11 a/b/g/n/ac/ax |
| Wireless Standard | AX |
Details
For enterprises who need more wireless capacity and wider channels, HPE Aruba Networking 630 Series Campus APs are designed to take advantage of the 6 GHz band via three dedicated radios. By using the 6 GHz band, capacity is more than doubled-so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to HPE Aruba Networking, the 630 Series includes ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.
- Supporting the Wi-Fi 6E wireless standard based on IEEE 802.11ax, this access point offers a maximum aggregate data transfer rate of 3.9 Gbps (3900 Mbps), ensuring high throughput and enhanced performance for bandwidth-intensive applications.
- Power over Ethernet (PoE) for power through an Ethernet cable, this access point is compatible with the Wi-Fi 6E standard based on IEEE 802.11ax.
- Connectivity standards, including 802.11ax (Wi-Fi 6 and Wi-Fi 6E), 802.11ac (Wi-Fi 5), 802.11n (Wi-Fi 4), and 802.11a/b/g.
- It includes two Ethernet (RJ-45) ports supporting 1 Gbps and 2.5 Gbps speeds for high-speed connectivity, Bluetooth 5.0 for IoT and location-based services, and ZigBee for IoT connectivity.
- Operating on three frequency bands—2.4 GHz, 5 GHz, and 6 GHz—this tri-band capability ensures comprehensive coverage and reduces interference, making it perfect for high-density environments.
- Built in GPS receivers and intelligent software enable APs to self-locate and act as reference points for accurate indoor location measurements
- Certifications & Standards: FCC/ISED, CE Marked, RED Directive 2014/53/EU, EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, UL/IEC/EN 62368-1, EN 60601-1-1, EN60601-1-2, UL2043 Plenum Rating, 802.3at, 802.3af, 802.3bz, 802.3az
- Comes with a lifetime warranty.
| Attribute Name | Attribute Value |
|---|
