Highlights
View Details- Interfaces/ports: 2 x RJ 45
- Dimension: 3.3"(H) x 2"(W) x 1.3"(D)
- Test wiring configuration on UTP and STP

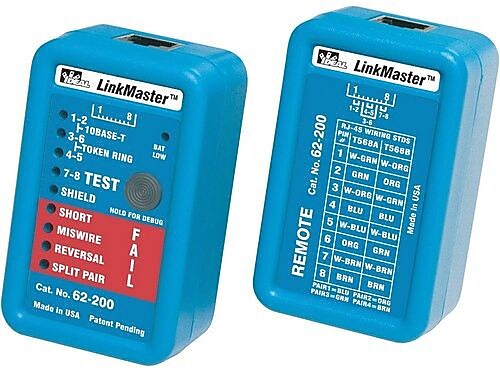

Ideal LinkMaster 62-200 PRO Tester (IDI62200)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The LinkMaster PRO tester enables installers, contractors and maintenance technicians to map, test and troubleshoot data and voice communication cable and coax runs.
- Interfaces/ports: 2 x RJ 45
- Dimension: 3.3"(H) x 2"(W) x 1.3"(D)
- Test wiring configuration on UTP and STP
- Tests unshielded and shielded modular plugs
- Check for shorts, miss wires, reversals and split pairs
- Debug feature, automatic shut off and low battery LED indicator
- Battery size supported: AA
- Designed to test installed twisted pair wiring
- Device function: Open circuit testing, short circuit testing, split pair testing
- Main unit and remote allow one person testing
- Open there is no "open" LED indication, a typical cable may have 2, 3, or 4 pairs, opens are displayed as an unlit LED
- User will determine if a pair is present and continuous or OPEN by comparing the illuminated LEDs to the expected number of pairs that should be good
- Short - a short circuit condition exists
- Split pairs - split pairs occur when the tip (positive conductor) and ring (negative conductor) of two twisted pairs are interchanged
- Pass indicators: Four green LEDs on pairs 1 2, 3 6, 4 5, and 7 8. All four pairs are terminated correctly, two green LEDs on pairs 3 6, and 4 5. Both pairs terminated correctly, yowl green LEDs on pairs 1 2, and 3 6. Both pairs terminated correctly
- Green shield LED indicates the shield on the cable is correctly and continuously wired through the modular plug termination
- Weight: 2 lbs.
- ⚠ WARNING: Cancer and Reproductive Harm - WWW.P65warnings.ca.gov
| Manufacturer # | IDI62200 |
| Brand Name | IDEAL |
| Connector, Port Or Interface Type(s) | 2 x RJ 45 |
| Depth in Inches | 1.3 |
| Display | LED |
| Height in Inches | 3.3 |
| Network Tool Type | Cable Tester |
| Power Source | Battery-powered |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| True Color | Blue |
| Weight (lbs.) | 2 |
| Width in Inches | 2 |
Details
The LinkMaster PRO tester enables installers, contractors and maintenance technicians to map, test and troubleshoot data and voice communication cable and coax runs.
- Interfaces/ports: 2 x RJ 45
- Dimension: 3.3"(H) x 2"(W) x 1.3"(D)
- Test wiring configuration on UTP and STP
- Tests unshielded and shielded modular plugs
- Check for shorts, miss wires, reversals and split pairs
- Debug feature, automatic shut off and low battery LED indicator
- Battery size supported: AA
- Designed to test installed twisted pair wiring
- Device function: Open circuit testing, short circuit testing, split pair testing
- Main unit and remote allow one person testing
- Open there is no "open" LED indication, a typical cable may have 2, 3, or 4 pairs, opens are displayed as an unlit LED
- User will determine if a pair is present and continuous or OPEN by comparing the illuminated LEDs to the expected number of pairs that should be good
- Short - a short circuit condition exists
- Split pairs - split pairs occur when the tip (positive conductor) and ring (negative conductor) of two twisted pairs are interchanged
- Pass indicators: Four green LEDs on pairs 1 2, 3 6, 4 5, and 7 8. All four pairs are terminated correctly, two green LEDs on pairs 3 6, and 4 5. Both pairs terminated correctly, yowl green LEDs on pairs 1 2, and 3 6. Both pairs terminated correctly
- Green shield LED indicates the shield on the cable is correctly and continuously wired through the modular plug termination
- Weight: 2 lbs.
- ⚠ WARNING: Cancer and Reproductive Harm - WWW.P65warnings.ca.gov
