Highlights
View Details- Gateway security appliance prevents dangerous applications and malicious websites
- Dimensions: 1.72"H x 17.36"W x 14.57"D
- Color: Gray

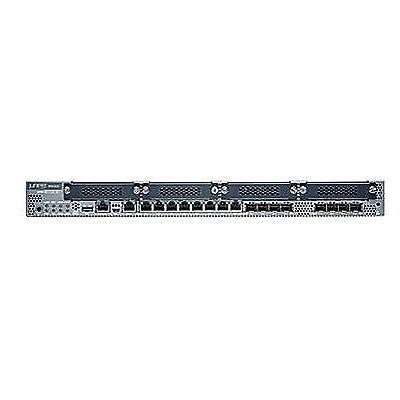

Juniper® Rack Mountable Gigabit Ethernet Gateway Security Appliance, 16 Ports (SRX345-SYS-JB)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Juniper® 16-Port Rack mountable Gigabit Ethernet gateway security appliance in grey, supports DHCP client/server/relay, DNS, DDNS, real time performance monitoring (RPM) and Ipmonitoring protocols. With 4GB RAM and 8GB flash memory, this appliance has six RJ-45, two SFP (mini-GBIC), one USB 3.0, one console and four mini PIM interfaces/ports. The appliance supports 256-bit AES, 256-bit SHA, DES, IKE, IKEv2, MD5, PKI, SHA-1, SSL and Triple DES encryption algorithms. This security appliance supports routing protocols such as IPv4, IPv6, ISO, CLNS, RIP v1/v2, OSPF/OSPF v3, BGP with Route Reflector and IS-IS. The appliance works with SSH, Telnet, SNMP, smart image download, CLI and Web UI, Junos space and security director, Python, Junos OS event, commit and OP script.
- Gateway security appliance prevents dangerous applications and malicious websites
- Dimensions: 1.72"H x 17.36"W x 14.57"D
- Color: Gray
- Interfaces/ports: Six RJ-45, two SFP (mini-GBIC), one USB 3.0, one console, four mini PIM
- Memory: 4GB (RAM), 8GB (flash), SSD slot, Form factor: Rack mountable
- Encryption algorithm: 256-bit AES, 256-bit SHA, DES, IKE, IKEv2, MD5, PKI, SHA-1, SSL, Triple DES
- Power consumption: 112 W, 1.364 A (current), Heat dissipation: 420 BTU/hr
- Network: IEEE 802.1p, IEEE 802.1x, Ethernet, Fast Ethernet, Frame Relay, Gigabit Ethernet, HDLC, MLFR, MLPPP, PPP
- Performance: 700 Kpps (firewall throughput), 2 Gbps (IMIX), 300 Mbps (IPSec), 800 Mbps (1400-byte packet size), 500 Mbps (IPS throughput)
- Routing protocols: IPv4, IPv6, ISO, CLNS, RIP v1/v2, OSPF/OSPF v3, BGP with Route Reflector, IS-IS
- QoS 802.1p, DiffServ code point (DSCP), EXP, marking, policing and shaping, classification and scheduling, WRED, Ingress traffic policing
- Switching: ASIC-based layer 2 forwarding, MAC address learning, IRB, link aggregation and LACP, LLDP and LLDP-MED, STP, MVRP, 802.1X authentication
- VPN generic routing encapsulation (GRE), IP-IP, Ipsec, site-site IPsec VPN, auto VPN, IPsec crypto algorithms, multi-proxy ID for site-site VPN
- Dynamic host configuration protocol (DHCP) client/server/relay, DNS, DDNS, real time performance monitoring (RPM) and IP monitoring
- Virtual router redundancy protocol, dial on-demand backup interfaces and IP monitoring with route and interface failover
- Temperature: 32 to 104 deg F (operating), Humidity: 10 - 90 % non-condensing (operating)
- Supports SSH, Telnet, SNMP, smart image download, CLI and Web UI, Junos space and security director, Python, Junos OS event, commit and OP script
- Meets FCC Class A certified, RoHS2 standards and certifications
- Weight: 10.80 lbs.
| Manufacturer # | SRX345SYSJB |
| Brand Name | Juniper |
| Built-in Firewall | Yes |
| Color Family | Gray/Silver |
| Connector, Port or Interface Type(s) | 16 x 1GbE Onboard, 8 x 1GbE RJ-45, 1 x 1GbE, RJ-45 + Mini USB, USB 3.0 Type A |
| Depth in Inches | 14.57 |
| Gaming | Non Gaming |
| Gigabit | Yes |
| Height in Inches | 1.72 |
| Quality of Service | Yes |
| Security Protocols | 256-bit AES, 256-bit SHA, DES, IKE, IKEv2, MD5, PKI, SHA-1, SSL, Triple DES |
| Series or Collection | SRX300 |
| True Color | Gray |
| Usb Port | Yes |
| Vpn Support | Yes |
| Weight (lbs.) | 10.8 |
| Width in Inches | 17.36 |
| Wireless Connectivity | No |
Details
The Juniper® 16-Port Rack mountable Gigabit Ethernet gateway security appliance in grey, supports DHCP client/server/relay, DNS, DDNS, real time performance monitoring (RPM) and Ipmonitoring protocols. With 4GB RAM and 8GB flash memory, this appliance has six RJ-45, two SFP (mini-GBIC), one USB 3.0, one console and four mini PIM interfaces/ports. The appliance supports 256-bit AES, 256-bit SHA, DES, IKE, IKEv2, MD5, PKI, SHA-1, SSL and Triple DES encryption algorithms. This security appliance supports routing protocols such as IPv4, IPv6, ISO, CLNS, RIP v1/v2, OSPF/OSPF v3, BGP with Route Reflector and IS-IS. The appliance works with SSH, Telnet, SNMP, smart image download, CLI and Web UI, Junos space and security director, Python, Junos OS event, commit and OP script.
- Gateway security appliance prevents dangerous applications and malicious websites
- Dimensions: 1.72"H x 17.36"W x 14.57"D
- Color: Gray
- Interfaces/ports: Six RJ-45, two SFP (mini-GBIC), one USB 3.0, one console, four mini PIM
- Memory: 4GB (RAM), 8GB (flash), SSD slot, Form factor: Rack mountable
- Encryption algorithm: 256-bit AES, 256-bit SHA, DES, IKE, IKEv2, MD5, PKI, SHA-1, SSL, Triple DES
- Power consumption: 112 W, 1.364 A (current), Heat dissipation: 420 BTU/hr
- Network: IEEE 802.1p, IEEE 802.1x, Ethernet, Fast Ethernet, Frame Relay, Gigabit Ethernet, HDLC, MLFR, MLPPP, PPP
- Performance: 700 Kpps (firewall throughput), 2 Gbps (IMIX), 300 Mbps (IPSec), 800 Mbps (1400-byte packet size), 500 Mbps (IPS throughput)
- Routing protocols: IPv4, IPv6, ISO, CLNS, RIP v1/v2, OSPF/OSPF v3, BGP with Route Reflector, IS-IS
- QoS 802.1p, DiffServ code point (DSCP), EXP, marking, policing and shaping, classification and scheduling, WRED, Ingress traffic policing
- Switching: ASIC-based layer 2 forwarding, MAC address learning, IRB, link aggregation and LACP, LLDP and LLDP-MED, STP, MVRP, 802.1X authentication
- VPN generic routing encapsulation (GRE), IP-IP, Ipsec, site-site IPsec VPN, auto VPN, IPsec crypto algorithms, multi-proxy ID for site-site VPN
- Dynamic host configuration protocol (DHCP) client/server/relay, DNS, DDNS, real time performance monitoring (RPM) and IP monitoring
- Virtual router redundancy protocol, dial on-demand backup interfaces and IP monitoring with route and interface failover
- Temperature: 32 to 104 deg F (operating), Humidity: 10 - 90 % non-condensing (operating)
- Supports SSH, Telnet, SNMP, smart image download, CLI and Web UI, Junos space and security director, Python, Junos OS event, commit and OP script
- Meets FCC Class A certified, RoHS2 standards and certifications
- Weight: 10.80 lbs.
