Highlights
View Details- Services gateway protects mission critical enterprise campuses, regional headquarters and data center networks
- Connections: 16 x 1GbE and 4 x 10GbE onboard, 12 x 1GbE RJ-45, 4 x 1GbE SFP port, 2 x PIM slot, console (RJ-45 + mini USB), USB 2.0
- Compatible with PC

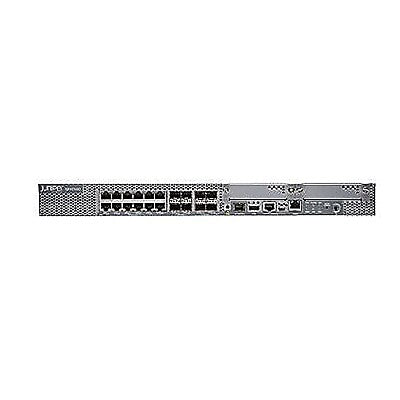

Juniper® SRX1500-SYS-JB-AC Gray 10 Gbps Services Gateway
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Juniper® SRX1500-SYS-JB-AC 10 Gbps services gateway in gray, is a high performance firewall that protects mission critical enterprise campuses, regional headquarters and data center networks with great security and threat mitigation capabilities. This 1U rack-mountable gateway features DES, 3DES and AES 256-bit hardware encryption for network security. It has 16 x 1GbE and 4 x 10GbE onboard, 12 x 1GbE RJ-45, 4 x 1GbE SFP port, 2 x PIM slot, console (RJ-45 + mini USB) and USB 2.0 interfaces for connectivity. It is compatible with PC.
- Services gateway protects mission critical enterprise campuses, regional headquarters and data center networks
- Connections: 16 x 1GbE and 4 x 10GbE onboard, 12 x 1GbE RJ-45, 4 x 1GbE SFP port, 2 x PIM slot, console (RJ-45 + mini USB), USB 2.0
- Compatible with PC
- Encryption: Data Encryption Standard (DES), triple DES (3DES), Advanced Encryption Standard (AES-256), security: Intrusion prevention, QoS, Antivirus
- Authentification: Active directory, Secure Shell (SSH), X.509 certificates
- Dimensions: 18.2"H x 17.5"W x 1.75"D
- Throughput: 10 Gbps (firewall 1518 byte packet size), 5 Gbps (firewall IMIX), 1 Gbps (VPN IPSec), 3 Gbps (application control)
- Power: 120 to 230 VAC, 50/60 Hz, consumption: 150 W, 8 A (for AC PSU), 20 A (for DC PSU), 50 A (inrush current), redundant PSU: 1+1
- Memory: 16GB RAM mSATA, 120GB SSD, form factor: 1U rack-mountable
- MTBF: 9.78 yrs, airflow/cooling: Front to back
- Heat dissipation: 614 BTU/hr, acoustic noise level: 66.5 dBA, auto installation
- Routing protocols: IPv4, IPv6, RIP v1/v2, OSPF/OSPF v3, virtual routers, ECMP, network services: DHCP, DNS, proxy, dynamic DNS, rpm
- Support for 802.1p, DiffServ code point (DSCP), DLCI, WRED, virtual channels, switching: ASIC layer 2 forwarding, MAC address, STP, RSTP, IRB
- Firewall services: Stateful and stateless, zone based, DDoS, UAC, NAT: Source NAT with PAT, bidirectional 1:1 static NAT, persistent NAT
- Capacity: 2000000 (IPv4 routing table entries), 16000 (security policies), 8000 (NAT rules), 64000 (MAC addresses), 1000 (VLANs), 512 (security zones)
- Operating system provided: JUNOS, temperature: 32 to 104 deg F (operating), 10 to 90% (humidity)
- Meets FCC class A and RoHS standards
- Weight: 16.1 lbs.
| Manufacturer # | SRX1500SYSJBAC |
| Authentication | Active directory, Secure Shell (SSH), X.509 certificates |
| Brand Name | Juniper |
| Compatibility | PC |
| Depth in Inches | 1.75 |
| Encryption Type | Data Encryption Standard (DES), triple DES (3DES), Advanced Encryption Standard (AES-256) |
| Firewall Form Factor | Rack Mounted |
| Height in Inches | 18.2 |
| Number of Switch Ports | 20 to 24 |
| Os Compatibility | JUNOS |
| Operating Temperature (degrees) | 32 - 104 deg F |
| Series or Collection | SRX1500 |
| Throughput | 10 Gbps (Firewall 1518 Byte Packet Size), 5 Gbps (Firewall IMIX), 1 Gbps (VPN) |
| True Color | Gray |
| Usb or Ethernet | USB |
| Vpn Protocols | IPSec |
| Watts | 150 |
| Weight (lbs.) | 16.1 |
| Width in Inches | 17.5 |
| Wireless or Wired | Wired |
Details
The Juniper® SRX1500-SYS-JB-AC 10 Gbps services gateway in gray, is a high performance firewall that protects mission critical enterprise campuses, regional headquarters and data center networks with great security and threat mitigation capabilities. This 1U rack-mountable gateway features DES, 3DES and AES 256-bit hardware encryption for network security. It has 16 x 1GbE and 4 x 10GbE onboard, 12 x 1GbE RJ-45, 4 x 1GbE SFP port, 2 x PIM slot, console (RJ-45 + mini USB) and USB 2.0 interfaces for connectivity. It is compatible with PC.
- Services gateway protects mission critical enterprise campuses, regional headquarters and data center networks
- Connections: 16 x 1GbE and 4 x 10GbE onboard, 12 x 1GbE RJ-45, 4 x 1GbE SFP port, 2 x PIM slot, console (RJ-45 + mini USB), USB 2.0
- Compatible with PC
- Encryption: Data Encryption Standard (DES), triple DES (3DES), Advanced Encryption Standard (AES-256), security: Intrusion prevention, QoS, Antivirus
- Authentification: Active directory, Secure Shell (SSH), X.509 certificates
- Dimensions: 18.2"H x 17.5"W x 1.75"D
- Throughput: 10 Gbps (firewall 1518 byte packet size), 5 Gbps (firewall IMIX), 1 Gbps (VPN IPSec), 3 Gbps (application control)
- Power: 120 to 230 VAC, 50/60 Hz, consumption: 150 W, 8 A (for AC PSU), 20 A (for DC PSU), 50 A (inrush current), redundant PSU: 1+1
- Memory: 16GB RAM mSATA, 120GB SSD, form factor: 1U rack-mountable
- MTBF: 9.78 yrs, airflow/cooling: Front to back
- Heat dissipation: 614 BTU/hr, acoustic noise level: 66.5 dBA, auto installation
- Routing protocols: IPv4, IPv6, RIP v1/v2, OSPF/OSPF v3, virtual routers, ECMP, network services: DHCP, DNS, proxy, dynamic DNS, rpm
- Support for 802.1p, DiffServ code point (DSCP), DLCI, WRED, virtual channels, switching: ASIC layer 2 forwarding, MAC address, STP, RSTP, IRB
- Firewall services: Stateful and stateless, zone based, DDoS, UAC, NAT: Source NAT with PAT, bidirectional 1:1 static NAT, persistent NAT
- Capacity: 2000000 (IPv4 routing table entries), 16000 (security policies), 8000 (NAT rules), 64000 (MAC addresses), 1000 (VLANs), 512 (security zones)
- Operating system provided: JUNOS, temperature: 32 to 104 deg F (operating), 10 to 90% (humidity)
- Meets FCC class A and RoHS standards
- Weight: 16.1 lbs.
