Highlights
View Details- Network cable is used to connect switch and network device
- Cable length: 3.28'
- Connections: QSFP28 on both end

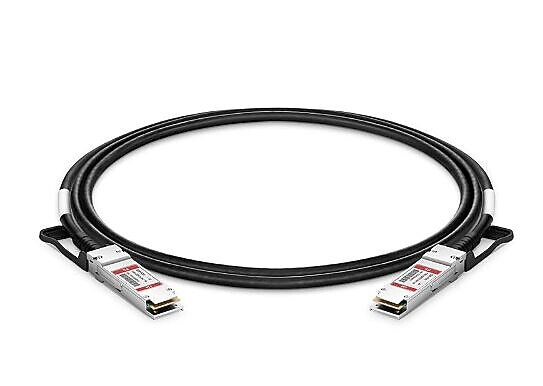

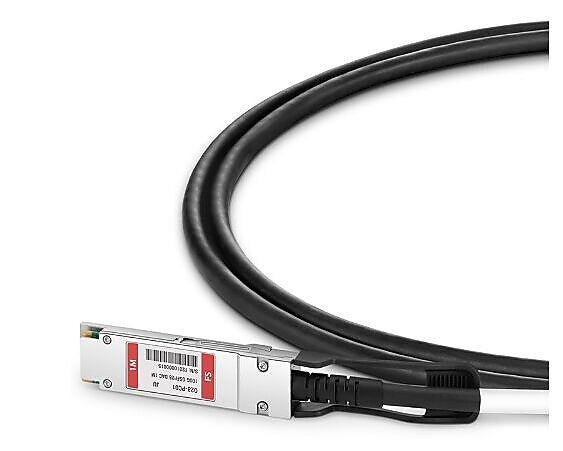

Juniper 3.28' QSFP28 To QSFP28 Direct Attach Twinaxial Network Cable
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Juniper JNP-100G-DAC-1M direct attach cable is 3.28' long and transfers data at 100 Gbps. The QSFP28 passive copper cable is perfect for data centers, high end server's enterprise wiring closets. This 3.3 V cable features PVC jacket that provides long lasting performance and reduces cable damage. The cable is IEEE802.3bj, InfiniBand EDR SFF-8665, RoHS compliant. The 100G QSFP28 Passive Direct Attach Copper Twinax Cable offers a cost-effective solution for establishing a 100-Gigabit link between switches' QSFP-100G ports within racks and across adjacent racks. This Direct Attach Copper cable provides low insertion loss and ultra-low crosstalk. It complies with IEEE 802.3, SFF-8665, and hot-pluggable QSFP28 MSA standards, ensuring compatibility and reliability.
- Network cable is used to connect switch and network device
- Cable length: 3.28'
- Connections: QSFP28 on both end
- Gauge: 30 AWG
- PVC jacket construction
- Temperature: 0 to 70 deg C
- Note: FS Box does not currently support changing H3C and HPE compatibility for DAC cables.
| Manufacturer # | JNP100GDAC1M |
| Brand Name | Juniper |
| Cable Gauge (awg) | 30 |
| Cable Jacket Material | PVC |
| Cable Length (ft) | 13.12 |
| Cable Use | Data |
| Conductor Material | Copper |
| Data Transfer Rate (gbps) | 100 |
| Data Transfer Rate (mbps) | 100000 |
| Device Type | Computer |
| End 1 Connector Type | Other |
| End 2 Connector Type | Other |
Details
The Juniper JNP-100G-DAC-1M direct attach cable is 3.28' long and transfers data at 100 Gbps. The QSFP28 passive copper cable is perfect for data centers, high end server's enterprise wiring closets. This 3.3 V cable features PVC jacket that provides long lasting performance and reduces cable damage. The cable is IEEE802.3bj, InfiniBand EDR SFF-8665, RoHS compliant. The 100G QSFP28 Passive Direct Attach Copper Twinax Cable offers a cost-effective solution for establishing a 100-Gigabit link between switches' QSFP-100G ports within racks and across adjacent racks. This Direct Attach Copper cable provides low insertion loss and ultra-low crosstalk. It complies with IEEE 802.3, SFF-8665, and hot-pluggable QSFP28 MSA standards, ensuring compatibility and reliability.
- Network cable is used to connect switch and network device
- Cable length: 3.28'
- Connections: QSFP28 on both end
- Gauge: 30 AWG
- PVC jacket construction
- Temperature: 0 to 70 deg C
- Note: FS Box does not currently support changing H3C and HPE compatibility for DAC cables.
| Attribute Name | Attribute Value |
|---|
