Highlights
View Details- Ethernet technology: Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, Network technology: 100/1000Base-T, 10GBase-X, 40GBase-X, Media type supported: Twisted pair
- Interfaces/ports: 32 x Gigabit Ethernet Expansion Slot, 4 x 10 Gigabit Ethernet Expansion Slot, 2 x 40 Gigabit Ethernet Expansion Slot
- Dimensions: 1.7"(H) x 17.4"(W) x 16.4"(D)

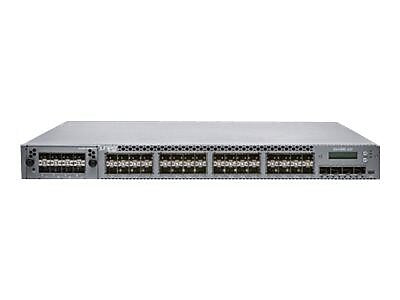

Juniper 32-Port Gigabit Ethernet Managed Switch (EX4300-32F)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Juniper® Managed gigabit ethernet switch features 100/1000Base-T, 10GBase-X, 40GBase-X network technology. Switch has a voltage rating of 110/220 VAC and is rack-mountable.
- Ethernet technology: Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, Network technology: 100/1000Base-T, 10GBase-X, 40GBase-X, Media type supported: Twisted pair
- Interfaces/ports: 32 x Gigabit Ethernet Expansion Slot, 4 x 10 Gigabit Ethernet Expansion Slot, 2 x 40 Gigabit Ethernet Expansion Slot
- Dimensions: 1.7"(H) x 17.4"(W) x 16.4"(D)
- Form factor: 1U desktop, rack-mountable
- Management protocols: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI
- Memory: 4GB DRAM, 4GB flash memory
- Power: 110 - 220 VAC
- I/O expansions: 48 x SFP+
- MAC address table size: 64K entries, Switching capacity: 464 Gbps, Throughput: 345 Mpps
- Layer supported: 3
- Temperature: 32 - 104 deg F operating, -40 to 158 deg F storage, Humidity (non-condensing): 5% - 90% operating, 0 - 95% storage
- Certifications: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
- Weight: 13.01 lbs.
- Warranty: Lifetime limited
| Manufacturer # | EX430032F |
| Address Database Size | 64000 |
| Brand Name | Juniper |
| Depth in Inches | 16.4 |
| Height in Inches | 1.7 |
| Module Support | Twisted Pair |
| Network Management Type | Managed Switch |
| Number of Ethernet Ports | 32 |
| Performance Class | Gigabit Ethernet |
| Port Mirroring | Yes |
| Snmp | v1, v2, v3 |
| Switch Form Factor | Desktop, Rack Mountable |
| Warranty Information | Limited Lifetime Warranty |
| Weight (lbs.) | 13.01 |
| Width in Inches | 17.4 |
Details
Juniper® Managed gigabit ethernet switch features 100/1000Base-T, 10GBase-X, 40GBase-X network technology. Switch has a voltage rating of 110/220 VAC and is rack-mountable.
- Ethernet technology: Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, Network technology: 100/1000Base-T, 10GBase-X, 40GBase-X, Media type supported: Twisted pair
- Interfaces/ports: 32 x Gigabit Ethernet Expansion Slot, 4 x 10 Gigabit Ethernet Expansion Slot, 2 x 40 Gigabit Ethernet Expansion Slot
- Dimensions: 1.7"(H) x 17.4"(W) x 16.4"(D)
- Form factor: 1U desktop, rack-mountable
- Management protocols: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI
- Memory: 4GB DRAM, 4GB flash memory
- Power: 110 - 220 VAC
- I/O expansions: 48 x SFP+
- MAC address table size: 64K entries, Switching capacity: 464 Gbps, Throughput: 345 Mpps
- Layer supported: 3
- Temperature: 32 - 104 deg F operating, -40 to 158 deg F storage, Humidity (non-condensing): 5% - 90% operating, 0 - 95% storage
- Certifications: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
- Weight: 13.01 lbs.
- Warranty: Lifetime limited
| Attribute Name | Attribute Value |
|---|
