Highlights
View Details- Industrial device server with installable industrial protocols allow virtually any serial device to connect to a new or existing Ethernet network
- Dimensions: 3.54"H x 1.4"W x 2.4"D
- High-impact plastic for durability

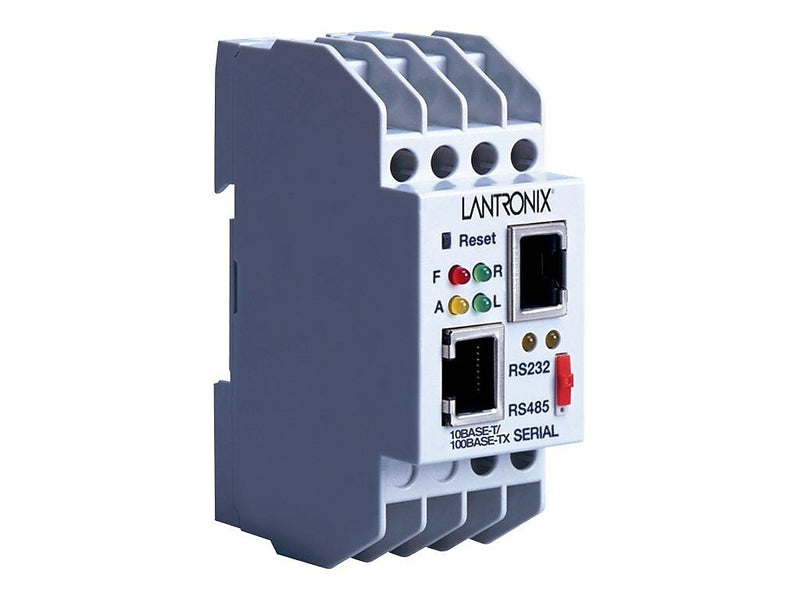

Lantronix XPress DR-IAP Industrial Device Server with Installable Industrial Protocols (XSDRIN-03)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Lantronix® XPress™ DR-IAP industrial device server with 10/100Base-TX Fast Ethernet connectivity, allows you to connect, manage and control any equipment with a serial port from nearly anywhere through a network or the Internet. The installable industrial protocols support various communication drivers. It has one RJ-45 network port and one RS-232/422/485 serial network port for enhanced connectivity. This device server is a quick, simple and inexpensive way of adding Ethernet connectivity to virtually any device with a serial interface.
- Industrial device server with installable industrial protocols allow virtually any serial device to connect to a new or existing Ethernet network
- Dimensions: 3.54"H x 1.4"W x 2.4"D
- High-impact plastic for durability
- Media type supported: Twisted pair
- Connectivity: 10/100Base-TX Fast Ethernet, Data rates: 300 - 115200 bps, Characters: 7 or 8 data bits
- Interfaces/ports: Network (RJ-45), RS-232/422/485 serial
- Form factor: DIN rail-mountable
- Connector type: Terminal block (screw)
- Power supply: 9 - 24 VAC/9 - 30 VDC, Power consumption: 3 W (operational)
- Network transport protocol: ARP, BOOTP, DHCP, ICMP/IP, TCP/IP and UDP/IP
- Remote management protocol: HTTP, SNMP, Telnet and TFTP
- Status indicators: Active, fail, link ok, ready, receive and transmit
- Operating system: Microsoft Windows
- Meets UL, CSA, CE, RCM, VCCI and RoHS certifications and standards
- Comes with 1 year limited warranty
| Manufacturer # | XSDRIN03 |
| Brand Name | Lantronix |
| Server Type | Device |
| Warranty Information | 1 Year |
Details
The Lantronix® XPress™ DR-IAP industrial device server with 10/100Base-TX Fast Ethernet connectivity, allows you to connect, manage and control any equipment with a serial port from nearly anywhere through a network or the Internet. The installable industrial protocols support various communication drivers. It has one RJ-45 network port and one RS-232/422/485 serial network port for enhanced connectivity. This device server is a quick, simple and inexpensive way of adding Ethernet connectivity to virtually any device with a serial interface.
- Industrial device server with installable industrial protocols allow virtually any serial device to connect to a new or existing Ethernet network
- Dimensions: 3.54"H x 1.4"W x 2.4"D
- High-impact plastic for durability
- Media type supported: Twisted pair
- Connectivity: 10/100Base-TX Fast Ethernet, Data rates: 300 - 115200 bps, Characters: 7 or 8 data bits
- Interfaces/ports: Network (RJ-45), RS-232/422/485 serial
- Form factor: DIN rail-mountable
- Connector type: Terminal block (screw)
- Power supply: 9 - 24 VAC/9 - 30 VDC, Power consumption: 3 W (operational)
- Network transport protocol: ARP, BOOTP, DHCP, ICMP/IP, TCP/IP and UDP/IP
- Remote management protocol: HTTP, SNMP, Telnet and TFTP
- Status indicators: Active, fail, link ok, ready, receive and transmit
- Operating system: Microsoft Windows
- Meets UL, CSA, CE, RCM, VCCI and RoHS certifications and standards
- Comes with 1 year limited warranty
| Attribute Name | Attribute Value |
|---|
