Highlights
View Details- Used to test shorts, open conductors, crossed wires, and cable length
- Designed to troubleshoot RJ45 LAN cables, both UTP and STP
- Tells you if the cable passes or fails the test, it indicates which pins fail and whether they are open, shorted, or crossed

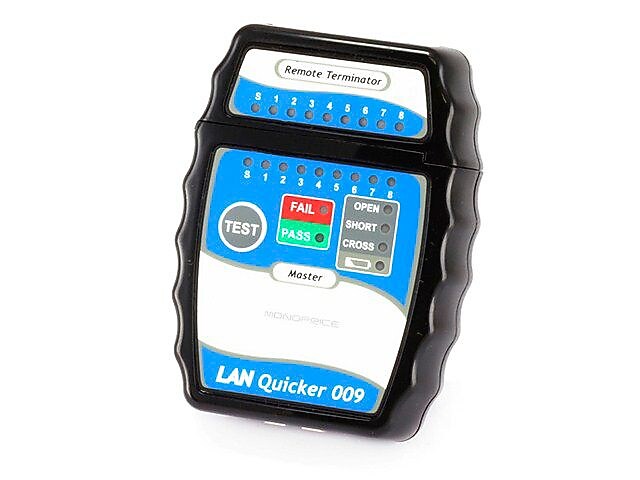

Monoprice® Quick RJ-45 Network Cable Tester
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Monoprice® Quick RJ-45 network cable tester has two basic testing auto and step modes. Cable tester can be used to troubleshoot RJ45 LAN cables, both UTP and STP.
- Used to test shorts, open conductors, crossed wires, and cable length
- Designed to troubleshoot RJ45 LAN cables, both UTP and STP
- Tells you if the cable passes or fails the test, it indicates which pins fail and whether they are open, shorted, or crossed
- Allows you to easily see if the cable is your problem and what you need to do to fix it, if it is
- Tester has two basic testing modes: Auto and Step
- Auto mode it makes a single pass over-the cable and gives a result, it shows whether the cable passed or failed and, if it failed, the type of failure (open, short, or cross) and the affected pins/wires
- Step mode the tester steps through each wire independently with each press of the Test button, allows you to get detailed results for a cable that may have multiple types of failures
- For example, you can see that-pin 1 is open, pins 2 and 3 are crossed and that-pin 4 is shorted
- Includes 1 x LAN Quicker 009 Master Unit, 1 x Remote Terminator (attached to the Master unit), 1 x 9 V alkaline battery, 1 x Zippered nylon belt pouch
| Manufacturer # | 108130 |
| Brand Name | Monoprice |
| Compatibility | RJ45 LAN cables; both UTP and STP |
| Depth in Inches | 3.8 |
| Height in Inches | 9.6 |
| Included Components | 1 x LAN Quicker 009 Master Unit, 1 x Remote Terminator (attached to the Master unit), 1 x 9 V alkaline battery, 1 x Zippered nylon belt pouch |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| True Color | Multicolor |
| Weight (lbs.) | 0.58 |
| Width in Inches | 7 |
Details
Monoprice® Quick RJ-45 network cable tester has two basic testing auto and step modes. Cable tester can be used to troubleshoot RJ45 LAN cables, both UTP and STP.
- Used to test shorts, open conductors, crossed wires, and cable length
- Designed to troubleshoot RJ45 LAN cables, both UTP and STP
- Tells you if the cable passes or fails the test, it indicates which pins fail and whether they are open, shorted, or crossed
- Allows you to easily see if the cable is your problem and what you need to do to fix it, if it is
- Tester has two basic testing modes: Auto and Step
- Auto mode it makes a single pass over-the cable and gives a result, it shows whether the cable passed or failed and, if it failed, the type of failure (open, short, or cross) and the affected pins/wires
- Step mode the tester steps through each wire independently with each press of the Test button, allows you to get detailed results for a cable that may have multiple types of failures
- For example, you can see that-pin 1 is open, pins 2 and 3 are crossed and that-pin 4 is shorted
- Includes 1 x LAN Quicker 009 Master Unit, 1 x Remote Terminator (attached to the Master unit), 1 x 9 V alkaline battery, 1 x Zippered nylon belt pouch
| Attribute Name | Attribute Value |
|---|
