Highlights
View Details- 3-in-1 tracer/toner/cable tester is a professional tool used to test and troubleshoot RJ45, RJ11, and BNC cables
- It can also be used to trace and identify individual wires within a wire bundle or group and can provide talk testing functionality between telephone units

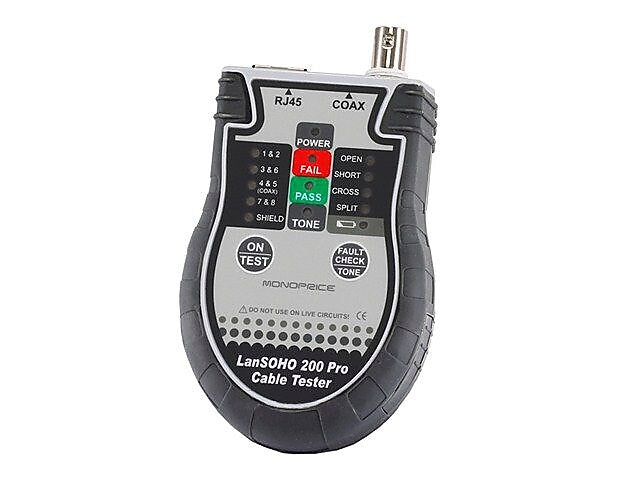

- Tester is composed of two main units: the tone generator/cable tester and the amplifier probe with sensing tip
Monoprice 108132 Multifunction Speaker Wire Tone Generator/Tracer/Tester (108132)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

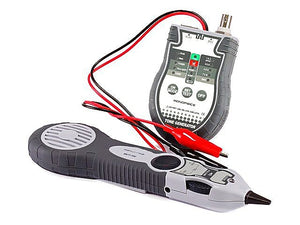

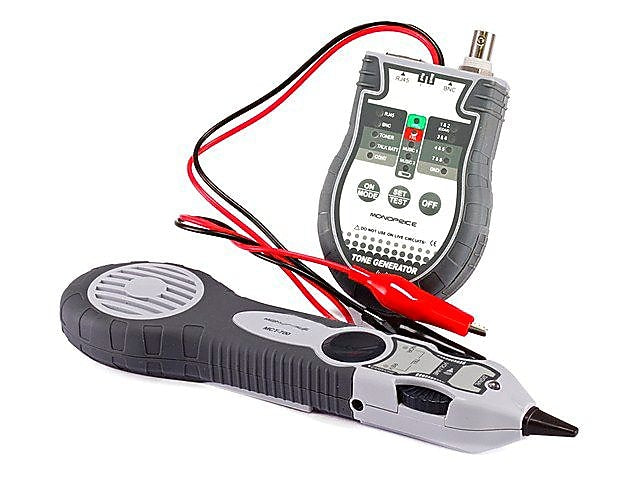

Monoprice® 3-in-1 Tester includes two units like tone generator/cable tester and amplifier probe sensing tip that are made of plastic. Tester is powered by 9 V battery and has a detachable remote terminator for continuous connection of remote wire.
- 3-in-1 tracer/toner/cable tester is a professional tool used to test and troubleshoot RJ45, RJ11, and BNC cables
- It can also be used to trace and identify individual wires within a wire bundle or group and can provide talk testing functionality between telephone units
- Tester is composed of two main units: the tone generator/cable tester and the amplifier probe with sensing tip
- Battery type: Alkaline (amplifier probe/ tone generator/cable tester)
- Voltage: 9 VDC (amplifier probe/ tone generator/cable tester)
- Material: Plastic with edges covered in rubber to improve grip
- Dimensions: 28 mm(H) x 60.3 mm(W) x 230 mm(L)
- A detachable remote terminator is used for RJ45 and RJ11 cables to provide the continuity link at the remote end of the cable
- Has an auto-off functionality that kicks in after 20 seconds of non-use in all modes except the Toner and Talk Batt mode
- Includes tone generator/cable tester w/remote terminator, amplifier probe, BNC adapter, 50 Ohms BNC terminator, BNC M/M 6" jumper cable, belt-clip, Nylon, zippered carrying bag w/front pocket, (2) batteries
- Weight: 137.2 g (tone generator/cable tester), 115 g (amplifier probe)
| Manufacturer # | 108132 |
| Brand Name | Monoprice |
| Items Included | Tone generator/cable tester w/remote terminator, amplifier probe, BNC adapter, 50Ohms BNC terminator, BNC M/M 6" jumper cable, belt-clip, 2 batteries |
| Material of Item | Plastic |
| Network Tool Type | Cable Tester |
| Power Source | Battery-powered |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| True Color | Multicolor |
| Used for | Test and troubleshoot RJ45, RJ11, and BNC cables |
| Weight (lbs.) | 0.3 |
Details
Monoprice® 3-in-1 Tester includes two units like tone generator/cable tester and amplifier probe sensing tip that are made of plastic. Tester is powered by 9 V battery and has a detachable remote terminator for continuous connection of remote wire.
- 3-in-1 tracer/toner/cable tester is a professional tool used to test and troubleshoot RJ45, RJ11, and BNC cables
- It can also be used to trace and identify individual wires within a wire bundle or group and can provide talk testing functionality between telephone units
- Tester is composed of two main units: the tone generator/cable tester and the amplifier probe with sensing tip
- Battery type: Alkaline (amplifier probe/ tone generator/cable tester)
- Voltage: 9 VDC (amplifier probe/ tone generator/cable tester)
- Material: Plastic with edges covered in rubber to improve grip
- Dimensions: 28 mm(H) x 60.3 mm(W) x 230 mm(L)
- A detachable remote terminator is used for RJ45 and RJ11 cables to provide the continuity link at the remote end of the cable
- Has an auto-off functionality that kicks in after 20 seconds of non-use in all modes except the Toner and Talk Batt mode
- Includes tone generator/cable tester w/remote terminator, amplifier probe, BNC adapter, 50 Ohms BNC terminator, BNC M/M 6" jumper cable, belt-clip, Nylon, zippered carrying bag w/front pocket, (2) batteries
- Weight: 137.2 g (tone generator/cable tester), 115 g (amplifier probe)
| Attribute Name | Attribute Value |
|---|
