Highlights
View Details- Network adapter speed: 1 Gbps
- Connect 10/100 devices to gigabit backbone
- Operating temperature: 32 - 122 deg F, Operating humidity: 5 - 90%

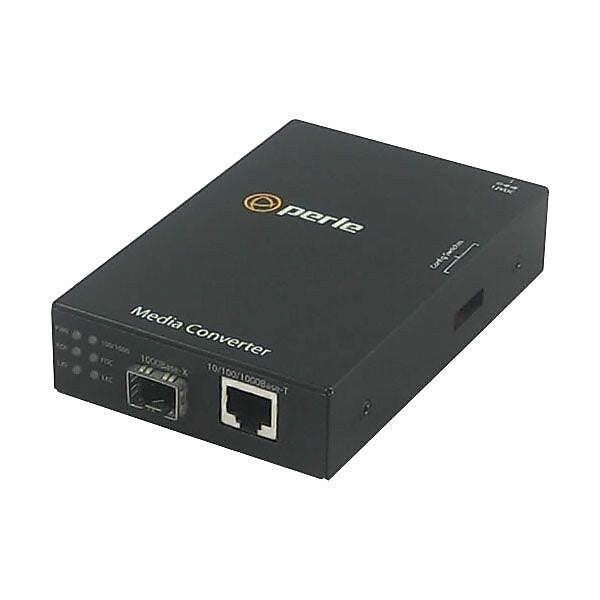

Perle 05050194 Gigabit Ethernet Transceiver/Media Converter
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Perle Media converter provide an economical path to extend the distance of an existing network. Media converter features full duplex capability, auto-negotiation and auto-uplink.
- Network adapter speed: 1 Gbps
- Connect 10/100 devices to gigabit backbone
- Operating temperature: 32 - 122 deg F, Operating humidity: 5 - 90%
- Dimensions: 1"(H) x 3.1"(W) x 4.7"(D)
- Form factor: External, rack mountable
- Data link protocol: Gigabit ethernet
- Connectivity technology: Wired
- Cabling type: 1000Base-T, 1000Base-X, 100Base-X
- Extend network distances
- Power consumption operational: 3 W
- Auto negotiation, auto uplink (auto MDI/MDI-X), smart missing link (SML), half duplex mode, full duplex mode, jumbo frames support
- Compliant st and ards: IEEE 802.3ab, IEEE 802.3x, CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55024, EN55022 Class A, RoHS, UL 60950-1, WEEE, FCC Part 15 A, IEC 60825-1
| Manufacturer # | 05050194 |
| Brand Name | Perle Systems |
| Data Transfer Rate (gbps) | 1 |
| Data Transfer Rate (mbps) | 1000 |
| Depth in Inches | 4.7 |
| Gigabit | Yes |
| Height in Inches | 1 |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Network Adapter Type | Ethernet |
| Security Protocols | Gigabit ethernet |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Width in Inches | 3.1 |
Details
Perle Media converter provide an economical path to extend the distance of an existing network. Media converter features full duplex capability, auto-negotiation and auto-uplink.
- Network adapter speed: 1 Gbps
- Connect 10/100 devices to gigabit backbone
- Operating temperature: 32 - 122 deg F, Operating humidity: 5 - 90%
- Dimensions: 1"(H) x 3.1"(W) x 4.7"(D)
- Form factor: External, rack mountable
- Data link protocol: Gigabit ethernet
- Connectivity technology: Wired
- Cabling type: 1000Base-T, 1000Base-X, 100Base-X
- Extend network distances
- Power consumption operational: 3 W
- Auto negotiation, auto uplink (auto MDI/MDI-X), smart missing link (SML), half duplex mode, full duplex mode, jumbo frames support
- Compliant st and ards: IEEE 802.3ab, IEEE 802.3x, CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55024, EN55022 Class A, RoHS, UL 60950-1, WEEE, FCC Part 15 A, IEC 60825-1
